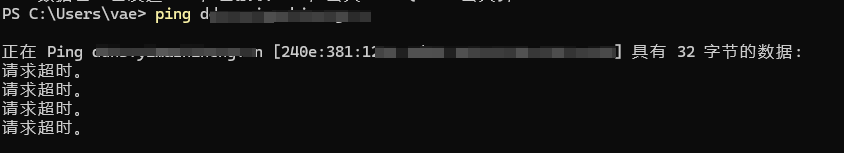

MSR800 连接交换机的客户端无法正确ping通和访问外网ipv6

交换机连接的光猫支持并启用了IPv6（交换机连接在光猫的千兆口上 ）

但是我发现光猫的默认路由器： fe80::6bd:70ff:fe43:e177是ping不通的

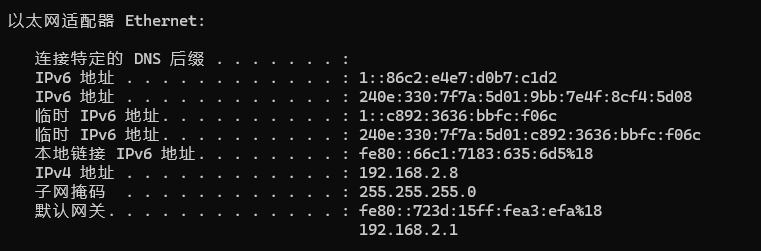

我电脑连接的是GigabitEthernet0/1 这个接口

GigabitEthernet0/2连接是光猫网络千兆接口

交换机MSR800文档地址：https://www.h3c.com/cn/d_202204/1585816_30005_0.htm#_Toc519174255







光猫IPV6信息：

WAN详细信息

MAC地址： 80:B5:75:19:36:78

VLAN： 1682

优先级策略： 使用指定值

优先级： 0

DNS地址列表： 240e:47:0:701::1,240e:47:0:702::1

前缀： 240e:330:7f7a:5d00::/56

前缀获取方式： PrefixDelegation

前缀首选期： 172800 秒

前缀合法期： 259200 秒

前缀剩余合法期： 251389 秒

IP地址： 240e:333:8301:1d9a:84b1:aeef:10fa:3e27

地址获取方式： AutoConfigured

地址状态： Preferred

地址首选期： 172800 秒

地址合法期： 259200 秒

地址剩余合法期： 258974 秒

默认路由器： fe80::6bd:70ff:fe43:e177

路由表信息：

display ipv6 routing-table

Routing Table : Public

        Destinations : 9        Routes : 9



Destination: ::/0                                        Protocol  : ND

NextHop    : FE80::1                                     Preference: 80

Interface  : GE0/2                                       Cost      : 0



Destination: ::1/128                                     Protocol  : Direct

NextHop    : ::1                                         Preference: 0

Interface  : InLoop0                                     Cost      : 0



Destination: 1::/64                                      Protocol  : Direct

NextHop    : 1::1                                        Preference: 0

Interface  : GE0/1                                       Cost      : 0



Destination: 1::1/128                                    Protocol  : Direct

NextHop    : ::1                                         Preference: 0

Interface  : InLoop0                                     Cost      : 0



Destination: 240E:330:7F7A:5D00::/64                     Protocol  : Direct

NextHop    : 240E:330:7F7A:5D00:723D:15FF:FEA3:EFB       Preference: 0

Interface  : GE0/2                                       Cost      : 0



Destination: 240E:330:7F7A:5D00:723D:15FF:FEA3:EFB/128   Protocol  : Direct

NextHop    : ::1                                         Preference: 0

Interface  : InLoop0                                     Cost      : 0



Destination: 240E:330:7F7A:5D01::/64                     Protocol  : Direct

NextHop    : 240E:330:7F7A:5D01::1                       Preference: 0

Interface  : GE0/1                                       Cost      : 0



Destination: 240E:330:7F7A:5D01::1/128                   Protocol  : Direct

NextHop    : ::1                                         Preference: 0

Interface  : InLoop0                                     Cost      : 0



Destination: FE80::/10                                   Protocol  : Direct

NextHop    : ::                                          Preference: 0

Interface  : NULL0                                       Cost      : 0







网口信息：

display ipv6 interface

Cellular0/0 current state :DOWN

Line protocol current state :DOWN



GigabitEthernet0/0 current state :UP

Line protocol current state :DOWN



GigabitEthernet0/1 current state :UP

Line protocol current state :UP

IPv6 is enabled, link-local address is FE80::723D:15FF:FEA3:EFA

  Global unicast address(es):

    1::1, subnet is 1::/64

    240E:330:7F7A:5D01::1, subnet is 240E:330:7F7A:5D01::/64

  Joined group address(es):

    FF02::1:FF00:0

    FF02::1:FF00:1

    FF02::1:FFA3:EFA

    FF02::2

    FF02::1

  MTU is 1500 bytes

  ND DAD is enabled, number of DAD attempts: 1

  ND reachable time is 30000 milliseconds

  ND retransmit interval is 1000 milliseconds

  ND advertised reachable time is 0 milliseconds

  ND advertised retransmit interval is 0 milliseconds

  ND router advertisements are sent every 10 seconds

  ND router advertisements live for 1800 seconds

  Hosts use DHCP to obtain routable addresses.

  Hosts use DHCP to obtain other configuration.

IPv6 Packet statistics:

  InReceives:                   756774

  InTooShorts:                  0

  InTruncatedPkts:              0

  InHopLimitExceeds:            3

  InBadHeaders:                 0

  InBadOptions:                 0

  ReasmReqds:                   0

  ReasmOKs:                     0

  InFragDrops:                  0

  InFragTimeouts:               0

  OutFragFails:                 0

  InUnknownProtos:              0

  InDelivers:                   284730

  OutRequests:                  167428

  OutForwDatagrams:             0

  InNoRoutes:                   0

  InTooBigErrors:               0

  OutFragOKs:                   0

  OutFragCreates:               0

  InMcastPkts:                  258915

  InMcastNotMembers:            321117

  OutMcastPkts:                 40785

  InAddrErrors:                 0

  InDiscards:                   0

  OutDiscards:                  0





GigabitEthernet0/2 current state :UP

Line protocol current state :UP

IPv6 is enabled, link-local address is FE80::723D:15FF:FEA3:EFB

  Global unicast address(es):

    240E:330:7F7A:5D00:723D:15FF:FEA3:EFB, subnet is 240E:330:7F7A:5D00::/64 [AUTOCFG]

      [valid lifetime 258823s/preferred lifetime 172423s]

  Joined group address(es):

    FF02::1:FF00:0

    FF02::1:FFA3:EFB

    FF02::2

    FF02::1

  MTU is 1500 bytes

  ND DAD is enabled, number of DAD attempts: 1

  ND reachable time is 30000 milliseconds

  ND retransmit interval is 1000 milliseconds

  ND advertised reachable time is 0 milliseconds

  ND advertised retransmit interval is 0 milliseconds

  ND router advertisements are sent every 600 seconds

  ND router advertisements live for 1800 seconds

  Hosts use stateless autoconfig for addresses

  Hosts use DHCP to obtain other configuration.

IPv6 Packet statistics:

  InReceives:                   70092

  InTooShorts:                  0

  InTruncatedPkts:              0

  InHopLimitExceeds:            0

  InBadHeaders:                 0

  InBadOptions:                 0

  ReasmReqds:                   0

  ReasmOKs:                     0

  InFragDrops:                  0

  InFragTimeouts:               0

  OutFragFails:                 0

  InUnknownProtos:              0

  InDelivers:                   5001

  OutRequests:                  130633

  OutForwDatagrams:             8178

  InNoRoutes:                   0

  InTooBigErrors:               0

  OutFragOKs:                   0

  OutFragCreates:               0

  InMcastPkts:                  1330

  InMcastNotMembers:            38341

  OutMcastPkts:                 115253

  InAddrErrors:                 0

  InDiscards:                   0

  OutDiscards:                  0





Vlan-interface1 current state :DOWN

Line protocol current state :DOWN



Vlan-interface2 current state :DOWN

Line protocol current state :DOWN



交换机配置文件信息：

#

 version 5.20, Release 2514P04

#

 sysname xiaoxiang

#

 domain default enable system

#

 dns proxy enable

#

 ipv6

 ipv6 unreachables enable

#

 telnet server enable

#

 dar p2p signature-file flash:/p2p_default.mtd

#

 ndp enable

#

 ntdp enable

#

 port-security enable

#

 password-recovery enable

#

acl number 2000

 rule 0 permit

#

acl ipv6 number 2000

 rule 0 permit

#

vlan 1

#

vlan 2

#

domain icu

 access-limit disable

 state active

 idle-cut disable

 self-service-url disable

domain system

 access-limit disable

 state active

 idle-cut disable

 self-service-url disable

#

dhcp server ip-pool ip2

 network 192.168.2.0 mask 255.255.255.0

 gateway-list 192.168.2.1

 dns-list 61.128.128.68

#

dhcp server ip-pool vlan1 extended

#

user-group system

 group-attribute allow-guest

#

local-user admin

 password cipher $c$3$40gC1cxf/wIJNa1ufFPJsjKAof+QP5aV

 authorization-attribute level 3

 service-type telnet

 service-type web

local-user liran

 password cipher $c$3$nKLZygV/2QtNNBb5lKuTKWYLsw/aYul7

 authorization-attribute level 3

 service-type telnet

 service-type web

#

cwmp

 undo cwmp enable

#

ipv6 dhcp pool 1

 network 240E:330:7F7A:5D00::/56

#

interface Cellular0/0

 async mode protocol

 link-protocol ppp

#

interface NULL0

#

interface Vlan-interface1

 undo dhcp select server global-pool

 dhcp server apply ip-pool vlan1

#

interface Vlan-interface2

#

interface GigabitEthernet0/0

 port link-mode route

 nat outbound

 nat server protocol udp global 50.105.232.90 any inside 192.168.2.204 any

 nat server protocol icmp global 50.105.232.90 inside 192.168.2.204

 nat server protocol tcp global 50.105.232.90 any inside 192.168.2.204 any

 nat server protocol tcp global 50.105.232.91 any inside 192.168.2.201 any

 nat server protocol udp global 50.105.232.91 any inside 192.168.2.201 any

 nat server protocol icmp global 50.105.232.91 inside 192.168.2.201

 nat server protocol udp global 50.105.232.135 any inside 192.168.2.202 any

 nat server protocol icmp global 50.105.232.135 inside 192.168.2.202

 nat server protocol tcp global 50.105.232.135 any inside 192.168.2.202 any

 nat server protocol tcp global 50.105.232.136 any inside 192.168.2.203 any

 nat server protocol udp global 50.105.232.136 any inside 192.168.2.203 any

 nat server protocol icmp global 50.105.232.136 inside 192.168.2.203

 ip address 50.105.232.92 255.255.255.0

#

interface GigabitEthernet0/1

 port link-mode route

 ipv6 nd ra interval 10 5

 undo ipv6 nd ra halt

 ipv6 nd autoconfig managed-address-flag

 ipv6 nd autoconfig other-flag

 ipv6 address 1::1/64

 ipv6 address 240E:330:7F7A:5D01::1/64

 ip address 192.168.2.1 255.255.255.0

 dhcp server client-detect enable

#

interface GigabitEthernet0/2

 port link-mode route

 nat outbound 2000

 ipv6 address auto

 ipv6 address auto link-local

 ip address dhcp-alloc

#

interface GigabitEthernet0/3

 port link-mode bridge

#

interface GigabitEthernet0/4

 port link-mode bridge

#

 ip route-static 0.0.0.0 0.0.0.0 192.168.1.1 permanent

 ip route-static 10.200.10.0 255.255.255.0 50.105.232.254 permanent

 ip route-static 50.0.0.0 255.0.0.0 50.105.232.254 permanent

#

 dhcp enable

#

 nms primary monitor-interface GigabitEthernet0/2

#

 load xml-configuration

#

 load tr069-configuration

#

user-interface con 0

user-interface tty 13

user-interface vty 0 4

 authentication-mode scheme

#

return
