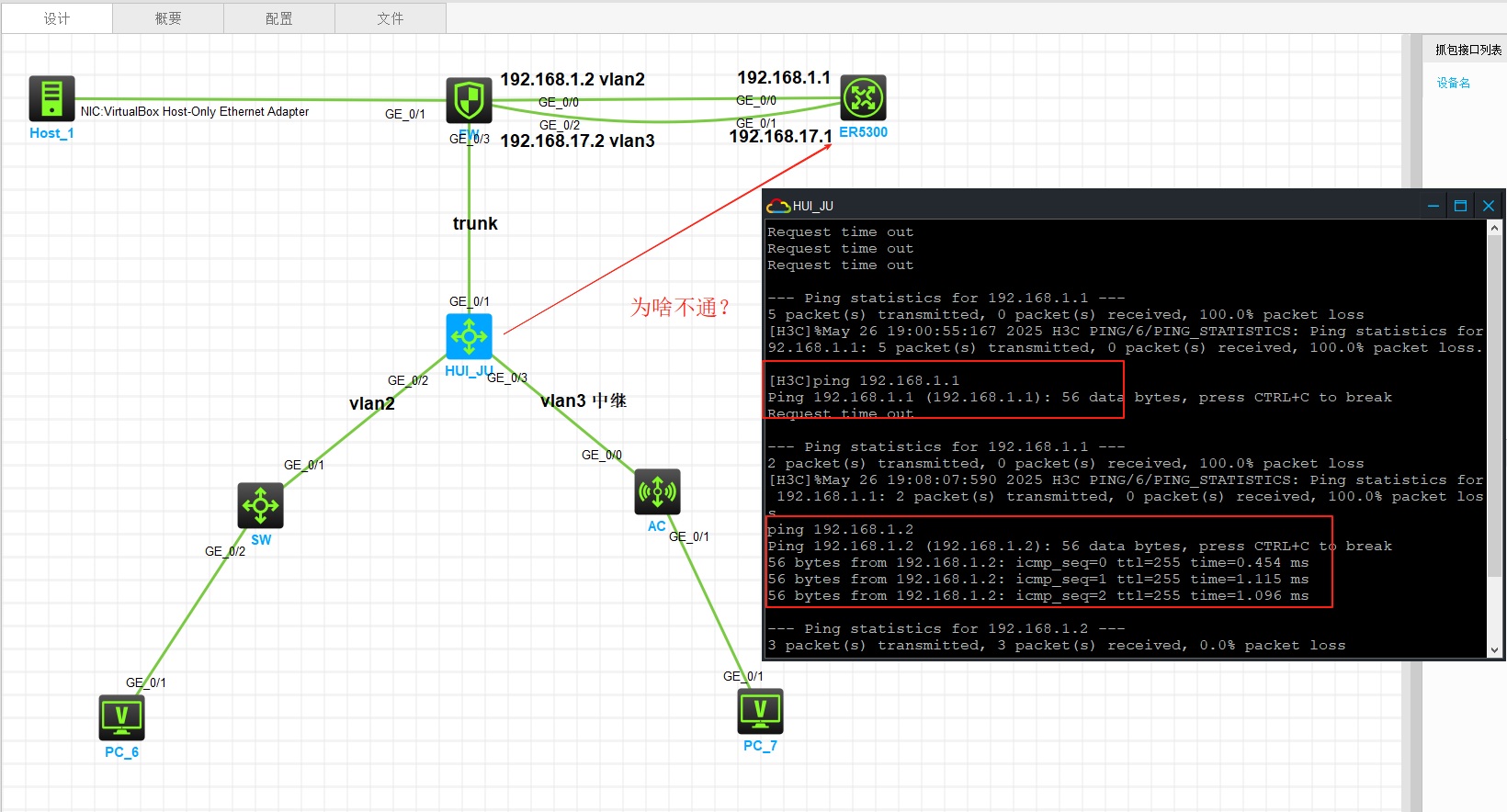

防火墙下级交换机PING不通上级路由器

route:

[H3C]dis cu

#

 version 7.1.064, Release 0427P22

#

 sysname H3C

#

 system-working-mode standard

 xbar load-single

 password-recovery enable

 lpu-type f-series

#

vlan 1

#

interface Serial1/0

#

interface Serial2/0

#

interface Serial3/0

#

interface Serial4/0

#

interface NULL0

#

interface GigabitEthernet0/0

 port link-mode route

 combo enable copper

 ip address 192.168.1.1 255.255.255.0

#

interface GigabitEthernet0/1

 port link-mode route

 combo enable copper

 ip address 192.168.17.1 255.255.255.0

#

interface GigabitEthernet0/2

 port link-mode route

 combo enable copper

#

interface GigabitEthernet5/0

 port link-mode route

 combo enable copper

#

interface GigabitEthernet5/1

 port link-mode route

 combo enable copper

#

interface GigabitEthernet6/0

 port link-mode route

 combo enable copper

#

interface GigabitEthernet6/1

 port link-mode route

 combo enable copper

#

 scheduler logfile size 16

#

line class aux

 user-role network-operator

#

line class console

 user-role network-admin

#

line class tty

 user-role network-operator

#

line class vty

 user-role network-operator

#

line aux 0

 user-role network-operator

#

line con 0

 user-role network-admin

#

line vty 0 63

 user-role network-operator

#

domain system

#

 domain default enable system

#

role name level-0

 description Predefined level-0 role

#

role name level-1

 description Predefined level-1 role

#

role name level-2

 description Predefined level-2 role

#

role name level-3

 description Predefined level-3 role

#

role name level-4

 description Predefined level-4 role

#

role name level-5

 description Predefined level-5 role

#

role name level-6

 description Predefined level-6 role

#

role name level-7

 description Predefined level-7 role

#

role name level-8

 description Predefined level-8 role

#

role name level-9

 description Predefined level-9 role

#

role name level-10

 description Predefined level-10 role

#

role name level-11

 description Predefined level-11 role

#

role name level-12

 description Predefined level-12 role

#

role name level-13

 description Predefined level-13 role

#

role name level-14

 description Predefined level-14 role

#

user-group system

#

return

[H3C]









FW:

dis cu

#

 version 7.1.064, Alpha 7164

#

 sysname H3C

#

context Admin id 1

#

 telnet server enable

#

 irf mac-address persistent timer

 irf auto-update enable

 undo irf link-delay

 irf member 1 priority 1

#

 xbar load-single

 password-recovery enable

 lpu-type f-series

#

vlan 1

#

vlan 2 to 3

#

interface NULL0

#

interface Vlan-interface1

 shutdown

#

interface Vlan-interface2

 ip address 192.168.1.2 255.255.255.0

 manage ping inbound

 manage ping outbound

#

interface Vlan-interface3

 ip address 192.168.17.2 255.255.255.0

 manage ping inbound

 manage ping outbound

#

interface GigabitEthernet1/0/1

 port link-mode route

 combo enable copper

 ip address 192.168.56.254 255.255.255.0

#

interface GigabitEthernet1/0/4

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/5

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/6

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/7

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/8

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/9

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/10

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/11

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/12

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/13

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/14

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/15

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/16

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/17

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/18

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/19

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/20

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/21

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/22

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/23

 port link-mode route

 combo enable copper

#

interface GigabitEthernet1/0/0

 port link-mode bridge

 port access vlan 2

 combo enable copper

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port access vlan 3

 combo enable copper

#

interface GigabitEthernet1/0/3

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan all

 combo enable copper

#

object-policy ip any

 rule 0 pass

#

security-zone name Local

#

security-zone name Trust

 import interface GigabitEthernet1/0/3 vlan 1 to 4094

#

security-zone name DMZ

#

security-zone name Untrust

 import interface Vlan-interface2

 import interface Vlan-interface3

#

security-zone name Management

 import interface GigabitEthernet1/0/1

#

 scheduler logfile size 16

#

line class aux

 user-role network-operator

#

line class console

 user-role network-admin

#

line class tty

 user-role network-operator

#

line class vty

 user-role network-operator

#

line aux 0

 user-role network-admin

#

line con 0

 authentication-mode scheme

 user-role network-admin

#

line vty 0 4

 authentication-mode scheme

 user-role network-admin

#

line vty 5 63

 user-role network-operator

#

 info-center loghost 127.0.0.1 port 3301 format default

 info-center source CFGLOG loghost level informational

#

domain system

#

 aaa session-limit ftp 16

 aaa session-limit telnet 16

 aaa session-limit ssh 16

 domain default enable system

#

role name level-0

 description Predefined level-0 role

#

role name level-1

 description Predefined level-1 role

#

role name level-2

 description Predefined level-2 role

#

role name level-3

 description Predefined level-3 role

#

role name level-4

 description Predefined level-4 role

#

role name level-5

 description Predefined level-5 role

#

role name level-6

 description Predefined level-6 role

#

role name level-7

 description Predefined level-7 role

#

role name level-8

 description Predefined level-8 role

#

role name level-9

 description Predefined level-9 role

#

role name level-10

 description Predefined level-10 role

#

role name level-11

 description Predefined level-11 role

#

role name level-12

 description Predefined level-12 role

#

role name level-13

 description Predefined level-13 role

#

role name level-14

 description Predefined level-14 role

#

user-group system

#

local-user admin class manage

 password hash $h$6$u69AoZN2PjTdhyYv$o2uGYu54qSimRsYuYhh2aXdUu7cELAkXCf+cCLeSbCH+CtcCmGGzUwai9rXOLHDE8uwBoKvkeMIApCO94xK8Fg==

 service-type ssh telnet terminal http https

 authorization-attribute user-role level-3

 authorization-attribute user-role network-admin

 authorization-attribute user-role network-operator

#

 ip http enable

 ip https enable

#

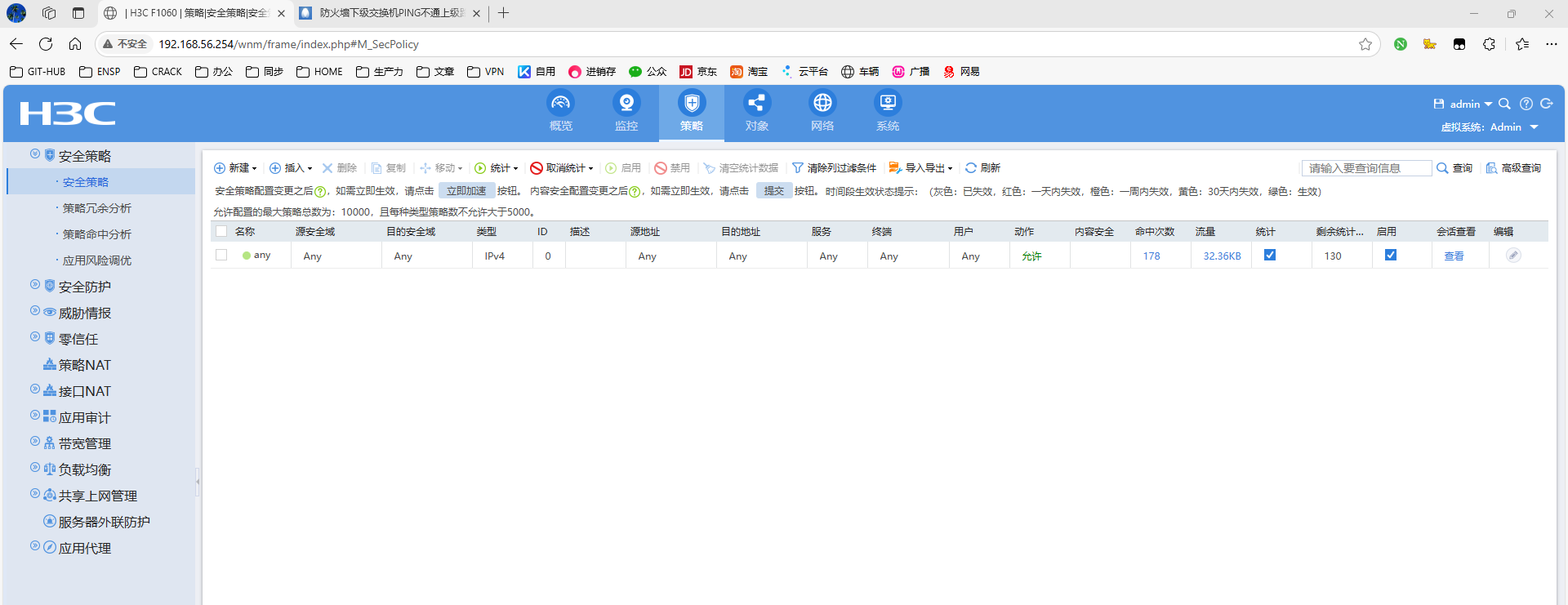

security-policy ip

 rule 0 name any

  action pass

#

return

<H3C>

huiju【汇聚】：

[H3C]dis cu

#

 version 7.1.070, Alpha 7170

#

 sysname H3C

#

 irf mac-address persistent timer

 irf auto-update enable

 undo irf link-delay

 irf member 1 priority 1

#

 dhcp enable

#

 lldp global enable

#

 system-working-mode standard

 xbar load-single

 password-recovery enable

 lpu-type f-series

#

vlan 1

#

vlan 2 to 3

#

 stp global enable

#

dhcp server ip-pool vlan2

 gateway-list 192.168.1.254

 network 192.168.1.0 mask 255.255.255.0

 dns-list 114.114.114.114

#

dhcp server ip-pool vlan3

 gateway-list 192.168.17.254

 network 192.168.17.0 mask 255.255.255.0

 dns-list 114.114.114.114

#

interface NULL0

#

interface Vlan-interface2

 ip address 192.168.1.254 255.255.255.0

 dhcp server apply ip-pool vlan2

#

interface Vlan-interface3

 ip address 192.168.17.254 255.255.255.0

 dhcp server apply ip-pool vlan3

#

interface FortyGigE1/0/53

 port link-mode bridge

#

interface FortyGigE1/0/54

 port link-mode bridge

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan all

 combo enable fiber

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 port access vlan 2

 combo enable fiber

#

interface GigabitEthernet1/0/3

 port link-mode bridge

 port access vlan 3

 combo enable fiber

#

interface GigabitEthernet1/0/4

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/5

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/6

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/7

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/8

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/9

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/10

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/11

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/12

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/13

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/14

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/15

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/16

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/17

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/18

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/19

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/20

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/21

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/22

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/23

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/24

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/25

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/26

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/27

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/28

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/29

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/30

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/31

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/32

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/33

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/34

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/35

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/36

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/37

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/38

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/39

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/40

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/41

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/42

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/43

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/44

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/45

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/46

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/47

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/48

 port link-mode bridge

 combo enable fiber

#

interface M-GigabitEthernet0/0/0

#

interface Ten-GigabitEthernet1/0/49

 port link-mode bridge

 combo enable fiber

#

interface Ten-GigabitEthernet1/0/50

 port link-mode bridge

 combo enable fiber

#

interface Ten-GigabitEthernet1/0/51

 port link-mode bridge

 combo enable fiber

#

interface Ten-GigabitEthernet1/0/52

 port link-mode bridge

 combo enable fiber

#

 scheduler logfile size 16

#

line class aux

 user-role network-operator

#

line class console

 user-role network-admin

#

line class tty

 user-role network-operator

#

line class vty

 user-role network-operator

#

line aux 0

 user-role network-operator

#

line con 0

 user-role network-admin

#

line vty 0 63

 user-role network-operator

#

radius scheme system

 user-name-format without-domain

#

domain system

#

 domain default enable system

#

role name level-0

 description Predefined level-0 role

#

role name level-1

 description Predefined level-1 role

#

role name level-2

 description Predefined level-2 role

#

role name level-3

 description Predefined level-3 role

#

role name level-4

 description Predefined level-4 role

#

role name level-5

 description Predefined level-5 role

#

role name level-6

 description Predefined level-6 role

#

role name level-7

 description Predefined level-7 role

#

role name level-8

 description Predefined level-8 role

#

role name level-9

 description Predefined level-9 role

#

role name level-10

 description Predefined level-10 role

#

role name level-11

 description Predefined level-11 role

#

role name level-12

 description Predefined level-12 role

#

role name level-13

 description Predefined level-13 role

#

role name level-14

 description Predefined level-14 role

#

user-group system

#

local-user admin class manage

 password hash $h$6$SIiiJmoqYnFp9fT7$mBle5rAzjumx7O1+T8ys5syWbILliX5GFTVBZMWItafl+IjB7q7eUilYdjSG0nCLrtMePWpBgLCWzIPsr3B/nQ==

 service-type telnet http https ssh

 authorization-attribute user-role network-admin

 authorization-attribute user-role network-operator

#

return

[H3C]
