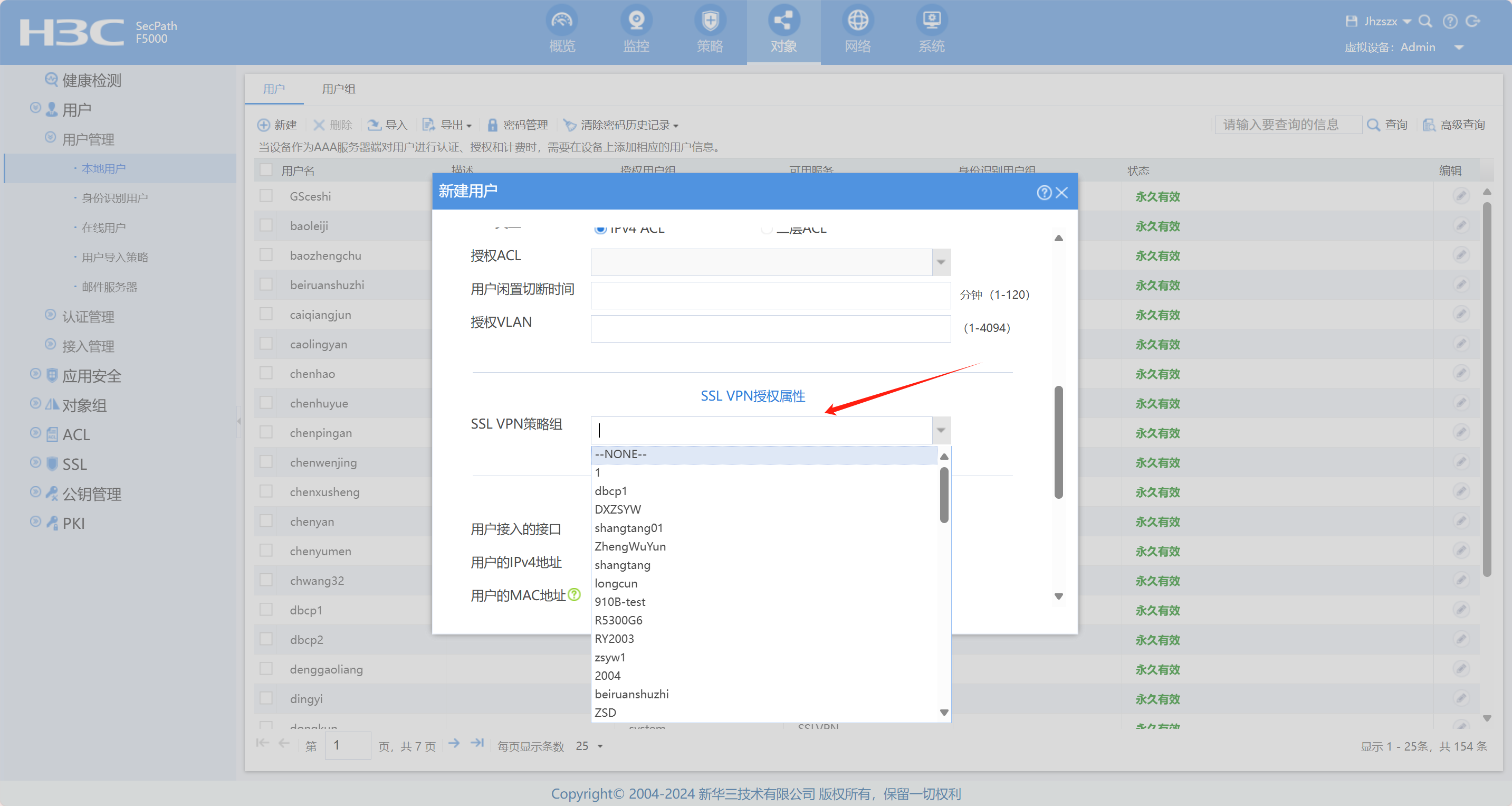

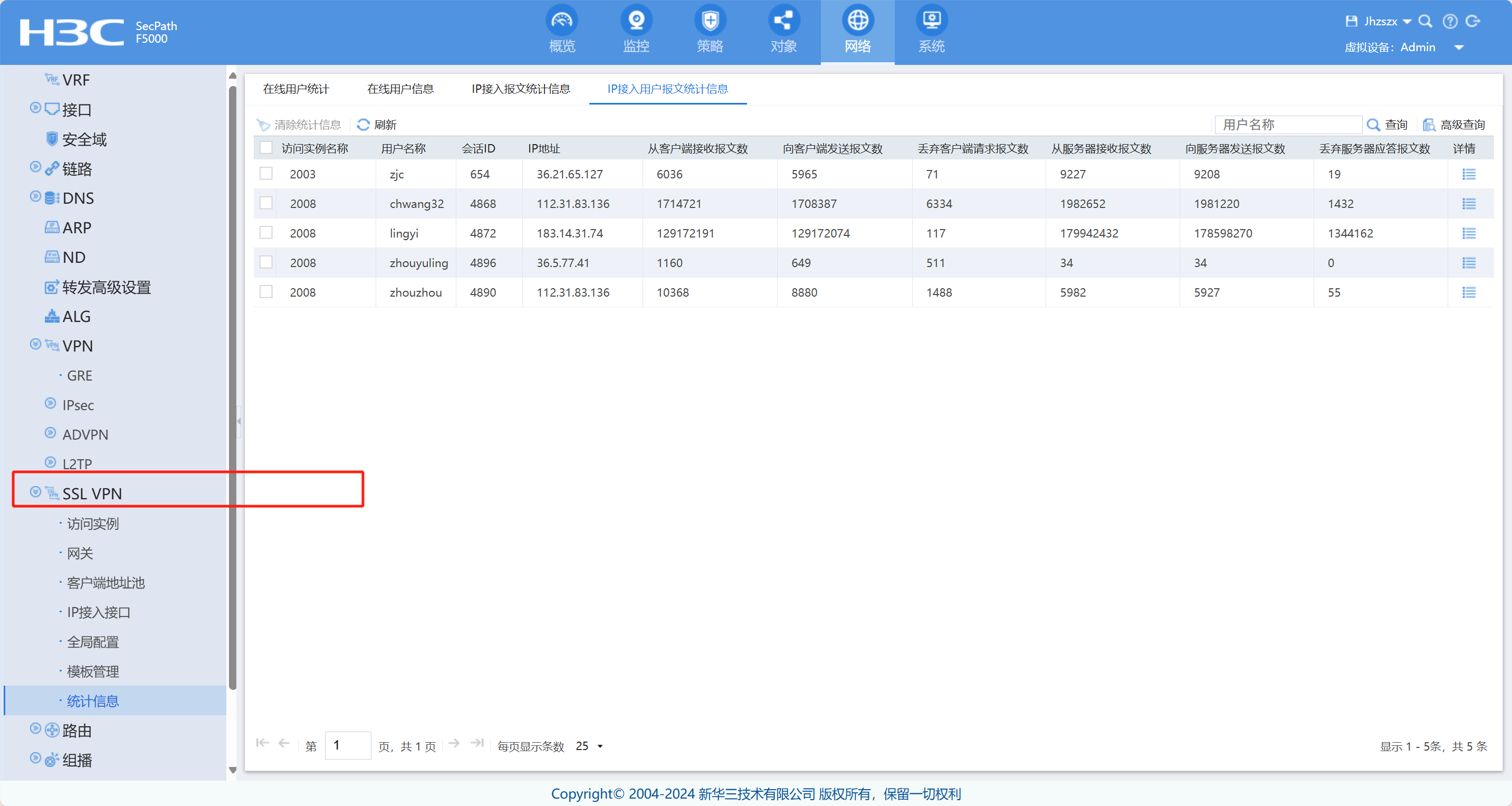

防火墙怎么新建SSL-VPN策略组

1.13.2  SSL VPN用户的身份识别与管理配置举例

1. 组网需求

Device为SSL VPN网关设备，连接公网用户和企业私有网络。其中，企业私有网络内部提供了Web服务器资源供远程用户访问（通过HTTP协议和80端口号）。配置Device对用户进行本地认证和本地授权，具体要求如下：

·     Device从本地用户数据库学习身份识别账户。

·     Device基于角色为SSL VPN用户授权策略组，使得用户可以通过Device安全地访问位于私有网络内部的Web server。

2. 组网图

图1-4 SSL VPN用户的身份识别与管理配置组网图

‌

表1-3 组网图示例接口与设备实际接口对应关系

3. 配置准备

Device已获取到CA证书ca.cer和服务器证书server.pfx，若SSL VPN网关不引用SSL服务端策略，则使用设备缺省证书。

根据组网图中规划的信息，确保用户主机、Device与Web server之间路由可达。

4. 配置步骤

(1)     配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<Device> system-view

[Device] ip http enable

[Device] ip https enable

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] ip address 2.1.1.1 255.255.255.0

[Device-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

(2)     配置安全域

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[Device] security-zone name untrust

[Device-security-zone-Untrust] import interface gigabitethernet 1/0/1

[Device-security-zone-Untrust] quit

[Device] security-zone name trust

[Device-security-zone-Trust] import interface gigabitethernet 1/0/2

[Device-security-zone-Trust] quit

(3)     配置安全策略放行Untrust与Local安全域之间的流量，用于用户访问SSL VPN网关设备。

# 配置名称为sslvpnlocalout1的安全策规则，使Device可以向用户发送报文，具体配置步骤如下。

[Device] security-policy ip

[Device-security-policy-ip] rule name sslvpnlocalout1

[Device-security-policy-ip-1-sslvpnlocalout1] source-zone local

[Device-security-policy-ip-1-sslvpnlocalout1] destination-zone untrust

[Device-security-policy-ip-1-sslvpnlocalout1] source-ip-host 2.1.1.1

[Device-security-policy-ip-1-sslvpnlocalout1] destination-ip-host 4.4.4.1

[Device-security-policy-ip-1-sslvpnlocalout1] destination-ip-host 4.4.4.2

[Device-security-policy-ip-1-sslvpnlocalout1] destination-ip-host 4.4.4.3

[Device-security-policy-ip-1-sslvpnlocalout1] action pass

[Device-security-policy-ip-1-sslvpnlocalout1] quit

# 配置名称为sslvpnlocalin1的安全策略规则，使用户可以向Device发送报文，具体配置步骤如下。

[Device-security-policy-ip] rule name sslvpnlocalin1

[Device-security-policy-ip-2-sslvpnlocalin1] source-zone untrust

[Device-security-policy-ip-2-sslvpnlocalin1] destination-zone local

[Device-security-policy-ip-2-sslvpnlocalin1] source-ip-host 4.4.4.1

[Device-security-policy-ip-2-sslvpnlocalin1] source-ip-host 4.4.4.2

[Device-security-policy-ip-2-sslvpnlocalin1] source-ip-host 4.4.4.3

[Device-security-policy-ip-2-sslvpnlocalin1] destination-ip-host 2.1.1.1

[Device-security-policy-ip-2-sslvpnlocalin1] action pass

[Device-security-policy-ip-2-sslvpnlocalin1] quit

# 配置名称为sslvpnlocalout2的安全策规则，使Device可以向Web server发送报文，具体配置步骤如下。

[Device-security-policy-ip] rule name sslvpnlocalout2

[Device-security-policy-ip-3-sslvpnlocalout2] source-zone local

[Device-security-policy-ip-3-sslvpnlocalout2] destination-zone trust

[Device-security-policy-ip-3-sslvpnlocalout2] source-ip-host 3.3.3.3

[Device-security-policy-ip-3-sslvpnlocalout2] destination-ip-host 20.2.2.2

[Device-security-policy-ip-3-sslvpnlocalout2] action pass

[Device-security-policy-ip-3-sslvpnlocalout2] quit

# 配置名称为sslvpnlocalin2的安全策略规则，使Web server可以向Device发送报文，具体配置步骤如下。

[Device-security-policy-ip] rule name sslvpnlocalin2

[Device-security-policy-ip-4-sslvpnlocalin2] source-zone trust

[Device-security-policy-ip-4-sslvpnlocalin2] destination-zone local

[Device-security-policy-ip-4-sslvpnlocalin2] source-ip-host 20.2.2.2

[Device-security-policy-ip-4-sslvpnlocalin2] destination-ip-host 3.3.3.3

[Device-security-policy-ip-4-sslvpnlocalin2] action pass

[Device-security-policy-ip-4-sslvpnlocalin2] quit

[Device-security-policy-ip] quit

(4)     配置PKI域，设置证书申请所需的相关参数

[Device] pki domain sslvpn

[Device-pki-domain-sslvpn] public-key rsa general name sslvpn

[Device-pki-domain-sslvpn] undo crl check enable

[Device-pki-domain-sslvpn] quit

[Device] pki import domain sslvpn der ca filename ca.cer

[Device] pki import domain sslvpn p12 local filename server.pfx

(5)     配置SSL服务器端策略，引用PKI域

[Device] ssl server-policy ssl

[Device-ssl-server-policy-ssl] pki-domain sslvpn

[Device-ssl-server-policy-ssl] quit

(6)     配置用户身份识别角色

# 创建网络接入类本地SSL VPN用户usera、userb、userc。

[Device] local-user usera class network

[Device-luser-network-usera] password simple a123456

[Device-luser-network-usera] service-type sslvpn

[Device-luser-network-usera] quit

[Device] local-user userb class network

[Device-luser-network-userb] password simple b123456

[Device-luser-network-userb] service-type sslvpn

[Device-luser-network-userb] quit

[Device] local-user userc class network

[Device-luser-network-userc] password simple c123456

[Device-luser-network-userc] service-type sslvpn

[Device-luser-network-userc] quit

# 创建本地用户组group1，将本地用户usera、userb、userc加入用户组group1。

[Device] user-group group1

[Device-ugroup-group1] identity-member user usera

[Device-ugroup-group1] identity-member user userb

[Device-ugroup-group1] identity-member user userc

[Device-ugroup-group1] quit

# 创建身份识别角色r1。

[Device] user-identity role name r1

# 引用身份识别用户组group1。

[Device-identity-role-r1] user-group name group1

[Device-identity-role-r1] quit

# 开启用户身份识别功能。

[Device] user-identity enable

(7)     配置SSL VPN网关，为用户提供登录SSL VPN网关的入口

# 配置SSL VPN网关gw的IP地址为2.1.1.1，端口号为2000。

[Device] sslvpn gateway gw

[Device-sslvpn-gateway-gw] ip address 2.1.1.1 port 2000

[Device-sslvpn-gateway-gw] service enable

[Device-sslvpn-gateway-gw] quit

(8)     配置SSL VPN访问实例，为用户提供SSL VPN Web接入服务

# 配置SSL VPN访问实例ctx1引用SSL VPN网关gw。

[Device] sslvpn context ctx1

[Device-sslvpn-context-ctx1] url-item urlitem

[Device-sslvpn-context-ctx1-url-item-urlitem] url http://20.2.2.2

[Device-sslvpn-context-ctx1-url-item-urlitem] quit

[Device-sslvpn-context-ctx1] url-list urllist

[Device-sslvpn-context-ctx1-url-list-urllist] heading web

[Device-sslvpn-context-ctx1-url-list-urllist] resources url-item urlitem

[Device-sslvpn-context-ctx1-url-list-urllist] quit

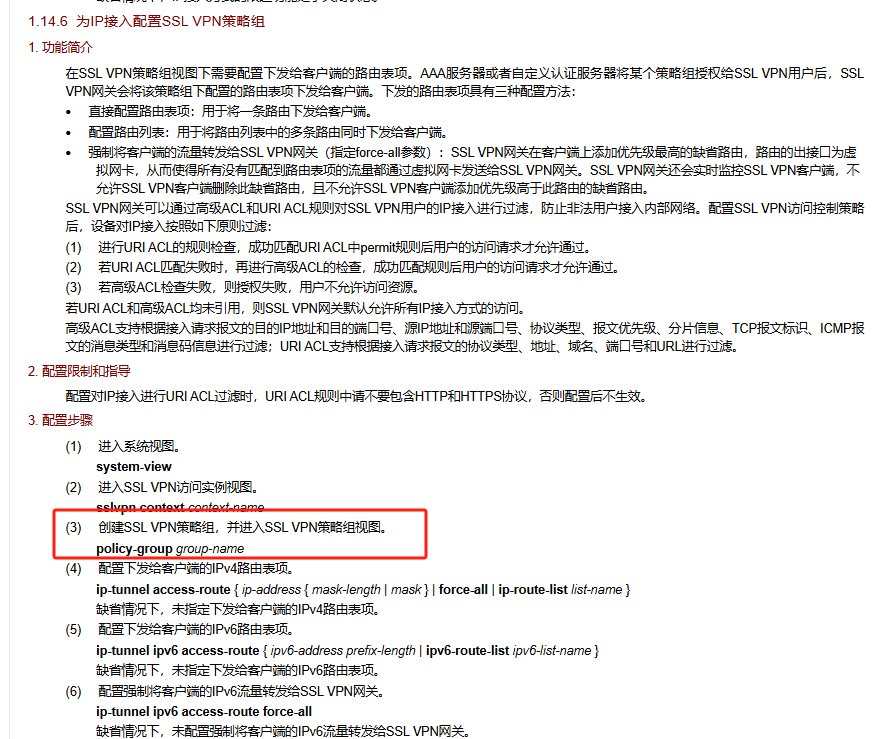

[Device-sslvpn-context-ctx1] policy-group p1

[Device-sslvpn-context-ctx1-policy-group-p1] resources url-list urllist

[Device-sslvpn-context-ctx1-policy-group-p1] quit

# 配置SSL VPN基于角色r1授权策略组p1。

[Device-sslvpn-context-ctx1] role r1

[Device-sslvpn-context-ctx1-role-r1] resources policy-group p1

[Device-sslvpn-context-ctx1-role-r1] web-access enable

[Device-sslvpn-context-ctx1-role-r1] quit

[Device-sslvpn-context-ctx1] service enable

[Device-sslvpn-context-ctx1] quit

5. 验证配置

# 以上配置完成后，可通过如下显示命令查看身份识别角色引用信息。

[Device] display user-identity role

--------------------------------------------------------------------------

Role name: default

This role is assigned to all identity users that do not obtain an administer-defined role.

--------------------------------------------------------------------------

Role name: r1

User group name                                         Domain name

group1                                                  N/A

Total 2 records matched.

SSL VPN用户在浏览器上输入https://2.1.1.1:2000/后，输入对应的本地用户名及密码即可成功登录网关。之后，该用户就能够通过浏览器访问网关为其所属角色授权的远端Web服务器资源。
