H3C MSR 2600路由器

这是链路聚合手册

二层静态聚合配置举例

1. 组网需求

·     Device A与Device B通过各自的二层以太网接口GigabitEthernet2/0/1～GigabitEthernet2/0/3相互连接。

·     在Device A和Device B上分别配置二层静态链路聚合组，并实现设备间VLAN 10和VLAN 20分别互通。

2. 组网图

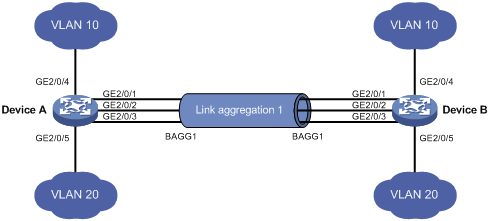

图1-5 二层静态聚合配置组网图



3. 配置步骤

(1)     配置Device A

# 创建VLAN 10，并将端口GigabitEthernet2/0/4加入到该VLAN中。

<DeviceA> system-view

[DeviceA] vlan 10

[DeviceA-vlan10] port gigabitethernet 2/0/4

[DeviceA-vlan10] quit

# 创建VLAN 20，并将端口GigabitEthernet2/0/5加入到该VLAN中。

[DeviceA] vlan 20

[DeviceA-vlan20] port gigabitethernet 2/0/5

[DeviceA-vlan20] quit

# 创建二层聚合接口1。

[DeviceA] interface bridge-aggregation 1

[DeviceA-Bridge-Aggregation1] quit

# 分别将端口GigabitEthernet2/0/1至GigabitEthernet2/0/3加入到聚合组1中。

[DeviceA] interface gigabitethernet 2/0/1

[DeviceA-GigabitEthernet2/0/1] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/1] quit

[DeviceA] interface gigabitethernet 2/0/2

[DeviceA-GigabitEthernet2/0/2] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/2] quit

[DeviceA] interface gigabitethernet 2/0/3

[DeviceA-GigabitEthernet2/0/3] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/3] quit

# 配置二层聚合接口1为Trunk端口，并允许VLAN 10和20的报文通过。

[DeviceA] interface bridge-aggregation 1

[DeviceA-Bridge-Aggregation1] port link-type trunk

[DeviceA-Bridge-Aggregation1] port trunk permit vlan 10 20

[DeviceA-Bridge-Aggregation1] quit

(2)     配置Device B

Device B的配置与Device A相似，配置过程略。

4. 验证配置

# 查看Device A上所有聚合组的详细信息。

[DeviceA] display link-aggregation verbose

Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing

Port Status: S -- Selected, U -- Unselected, I -- Individual

Flags:  A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,

        D -- Synchronization, E -- Collecting, F -- Distributing,

        G -- Defaulted, H -- Expired



Aggregate Interface: Bridge-Aggregation1

Aggregation Mode: Static

Loadsharing Type: NonS

  Port             Status  Priority Oper-Key

--------------------------------------------------------------------------------

  GE2/0/1          S       32768    1

  GE2/0/2          S       32768    1

  GE2/0/3          S       32768    1

以上信息表明，聚合组1为非负载分担类型的二层静态聚合组，包含有三个选中端口。

1.8.2  二层动态聚合配置举例

1. 组网需求

·     Device A与Device B通过各自的二层以太网接口GigabitEthernet2/0/1～GigabitEthernet2/0/3相互连接。

·     在Device A和Device B上分别配置二层动态链路聚合组，并实现设备间VLAN 10和VLAN 20分别互通。

2. 组网图

图1-6 二层动态聚合配置组网图



3. 配置步骤

(1)     配置Device A

# 创建VLAN 10，并将端口GigabitEthernet2/0/4加入到该VLAN中。

<DeviceA> system-view

[DeviceA] vlan 10

[DeviceA-vlan10] port gigabitethernet 2/0/4

[DeviceA-vlan10] quit

# 创建VLAN 20，并将端口GigabitEthernet2/0/5加入到该VLAN中。

[DeviceA] vlan 20

[DeviceA-vlan20] port gigabitethernet 2/0/5

[DeviceA-vlan20] quit

# 创建二层聚合接口1，并配置该接口为动态聚合模式。

[DeviceA] interface bridge-aggregation 1

[DeviceA-Bridge-Aggregation1] link-aggregation mode dynamic

[DeviceA-Bridge-Aggregation1] quit

# 分别将端口GigabitEthernet2/0/1至GigabitEthernet2/0/3加入到聚合组1中。

[DeviceA] interface gigabitethernet 2/0/1

[DeviceA-GigabitEthernet2/0/1] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/1] quit

[DeviceA] interface gigabitethernet 2/0/2

[DeviceA-GigabitEthernet2/0/2] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/2] quit

[DeviceA] interface gigabitethernet 2/0/3

[DeviceA-GigabitEthernet2/0/3] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/3] quit

# 配置二层聚合接口1为Trunk端口，并允许VLAN 10和20的报文通过。

[DeviceA] interface bridge-aggregation 1

[DeviceA-Bridge-Aggregation1] port link-type trunk

[DeviceA-Bridge-Aggregation1] port trunk permit vlan 10 20

[DeviceA-Bridge-Aggregation1] quit

(2)     配置Device B

Device B的配置与Device A相似，配置过程略。

4. 验证配置

# 查看Device A上所有聚合组的详细信息。

[DeviceA] display link-aggregation verbose

Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing

Port Status: S -- Selected, U -- Unselected, I -- Individual

Flags:  A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,

        D -- Synchronization, E -- Collecting, F -- Distributing,

        G -- Defaulted, H -- Expired



Aggregate Interface: Bridge-Aggregation1

Aggregation Mode: Dynamic

Loadsharing Type: NonS

System ID: 0x8000, 000f-e267-6c6a

Local:

  Port             Status  Priority Oper-Key  Flag

--------------------------------------------------------------------------------

  GE2/0/1          S       32768    1         {ACDEF}

  GE2/0/2          S       32768    1         {ACDEF}

  GE2/0/3          S       32768    1         {ACDEF}

Remote:

  Actor            Partner Priority Oper-Key  SystemID               Flag

--------------------------------------------------------------------------------

  GE2/0/1          1       32768    1         0x8000, 000f-e267-57ad {ACDEF}

  GE2/0/2          2       32768    1         0x8000, 000f-e267-57ad {ACDEF}

  GE2/0/3          3       32768    1         0x8000, 000f-e267-57ad {ACDEF}

以上信息表明，聚合组1为非负载分担类型的二层动态聚合组，包含有三个选中端口。

1.8.3  三层静态聚合配置举例

1. 组网需求

·     Device A与Device B通过各自的三层以太网接口GigabitEthernet2/0/1～GigabitEthernet2/0/3相互连接。

·     在Device A和Device B上分别配置三层静态链路聚合组，并为对应的三层聚合接口配置IP地址和子网掩码。

2. 组网图

图1-7 三层静态聚合配置组网图



3. 配置步骤

(1)     配置Device A

# 创建三层聚合接口1，并为该接口配置IP地址和子网掩码。

<DeviceA> system-view

[DeviceA] interface route-aggregation 1

[DeviceA-Route-Aggregation1] ip address 192.168.1.1 24

[DeviceA-Route-Aggregation1] quit

# 分别将接口GigabitEthernet2/0/1至GigabitEthernet2/0/3加入到聚合组1中。

[DeviceA] interface gigabitethernet 2/0/1

[DeviceA-GigabitEthernet2/0/1] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/1] quit

[DeviceA] interface gigabitethernet 2/0/2

[DeviceA-GigabitEthernet2/0/2] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/2] quit

[DeviceA] interface gigabitethernet 2/0/3

[DeviceA-GigabitEthernet2/0/3] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/3] quit

(2)     配置Device B

Device B的配置与Device A相似，配置过程略。

4. 验证配置

# 查看Device A上所有聚合组的详细信息。

[DeviceA] display link-aggregation verbose

Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing

Port Status: S -- Selected, U -- Unselected, I -- Individual

Flags:  A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,

        D -- Synchronization, E -- Collecting, F -- Distributing,

        G -- Defaulted, H -- Expired



Aggregate Interface: Route-Aggregation1

Aggregation Mode: Static

Loadsharing Type: NonS

  Port             Status  Priority Oper-Key

--------------------------------------------------------------------------------

  GE2/0/1          S       32768    1

  GE2/0/2          S       32768    1

  GE2/0/3          S       32768    1

以上信息表明，聚合组1为非负载分担类型的三层静态聚合组，包含有三个选中端口。

1.8.4  三层动态聚合配置举例

1. 组网需求

·     Device A与Device B通过各自的三层以太网接口GigabitEthernet2/0/1～GigabitEthernet2/0/3相互连接。

·     在Device A和Device B上分别配置三层动态链路聚合组，并为对应的三层聚合接口配置IP地址和子网掩码。

2. 组网图

图1-8 三层动态聚合配置组网图



3. 配置步骤

(1)     配置Device A

# 创建三层聚合接口1，配置该接口为动态聚合模式，并为其配置IP地址和子网掩码。

<DeviceA> system-view

[DeviceA] interface route-aggregation 1

[DeviceA-Route-Aggregation1] link-aggregation mode dynamic

[DeviceA-Route-Aggregation1] ip address 192.168.1.1 24

[DeviceA-Route-Aggregation1] quit

# 分别将接口GigabitEthernet2/0/1至GigabitEthernet2/0/3加入到聚合组1中。

[DeviceA] interface gigabitethernet 2/0/1

[DeviceA-GigabitEthernet2/0/1] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/1] quit

[DeviceA] interface gigabitethernet 2/0/2

[DeviceA-GigabitEthernet2/0/2] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/2] quit

[DeviceA] interface gigabitethernet 2/0/3

[DeviceA-GigabitEthernet2/0/3] port link-aggregation group 1

[DeviceA-GigabitEthernet2/0/3] quit

(2)     配置Device B

Device B的配置与Device A相似，配置过程略。

4. 验证配置

# 查看Device A上所有聚合组的详细信息。

[DeviceA] display link-aggregation verbose

Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing

Port Status: S -- Selected, U -- Unselected, I -- Individual

Flags:  A -- LACP_Activity, B -- LACP_Timeout, C -- Aggregation,

        D -- Synchronization, E -- Collecting, F -- Distributing,

        G -- Defaulted, H -- Expired



Aggregate Interface: Route-Aggregation1

Aggregation Mode: Dynamic

Loadsharing Type: NonS

System ID: 0x8000, 000f-e267-6c6a

Local:

  Port             Status  Priority Oper-Key  Flag

--------------------------------------------------------------------------------

  GE2/0/1          S       32768    1         {ACDEF}

  GE2/0/2          S       32768    1         {ACDEF}

  GE2/0/3          S       32768    1         {ACDEF}

Remote:

  Actor            Partner Priority Oper-Key  SystemID               Flag

--------------------------------------------------------------------------------

  GE2/0/1          1       32768    1         0x8000, 000f-e267-57ad {ACDEF}

  GE2/0/2          2       32768    1         0x8000, 000f-e267-57ad {ACDEF}

  GE2/0/3          3       32768    1         0x8000, 000f-e267-57ad {ACDEF}

以上信息表明，聚合组1为非负载分担类型的三层动态聚合组，包含有三个选中端口。
