某局点MSR3620-X1 流量排行只显示vlan1问题处理经验案例

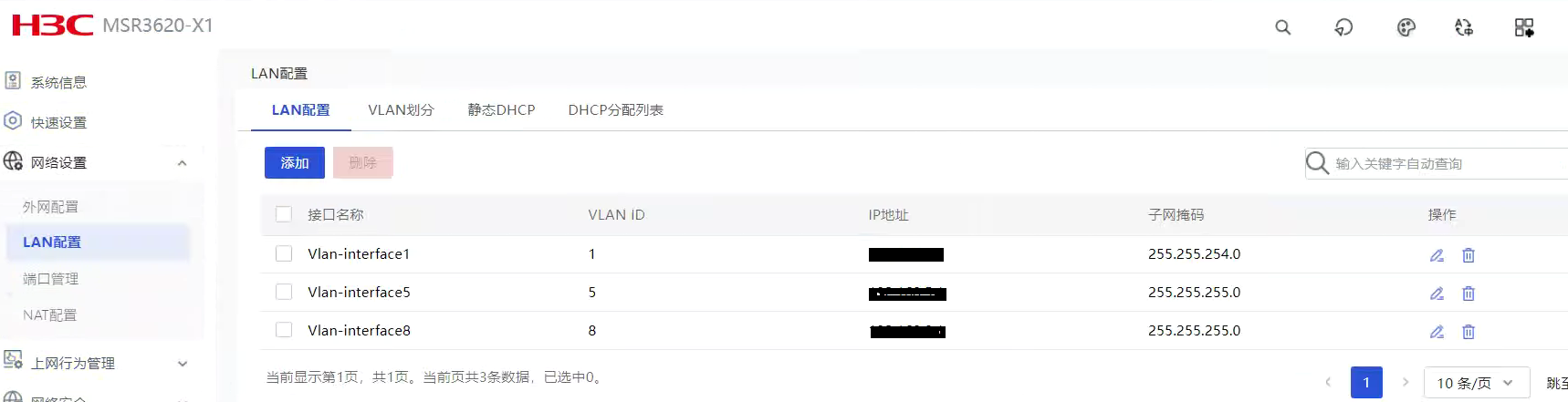

3个VLAN接口，但是开启流量排行后只显示了VLAN1接口

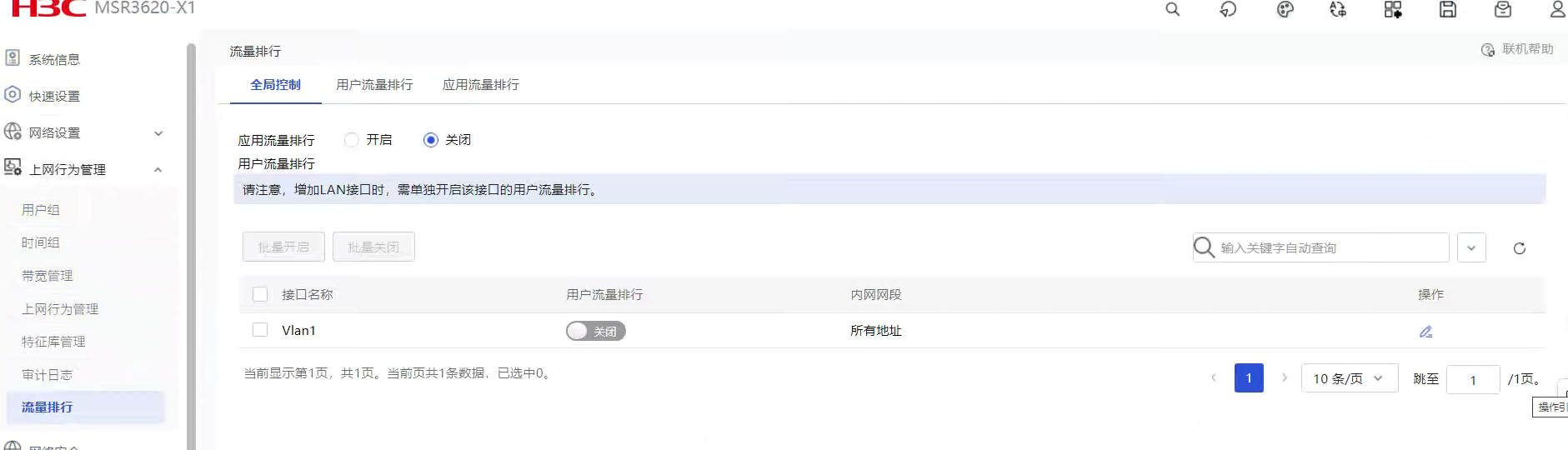

流量排行查看：

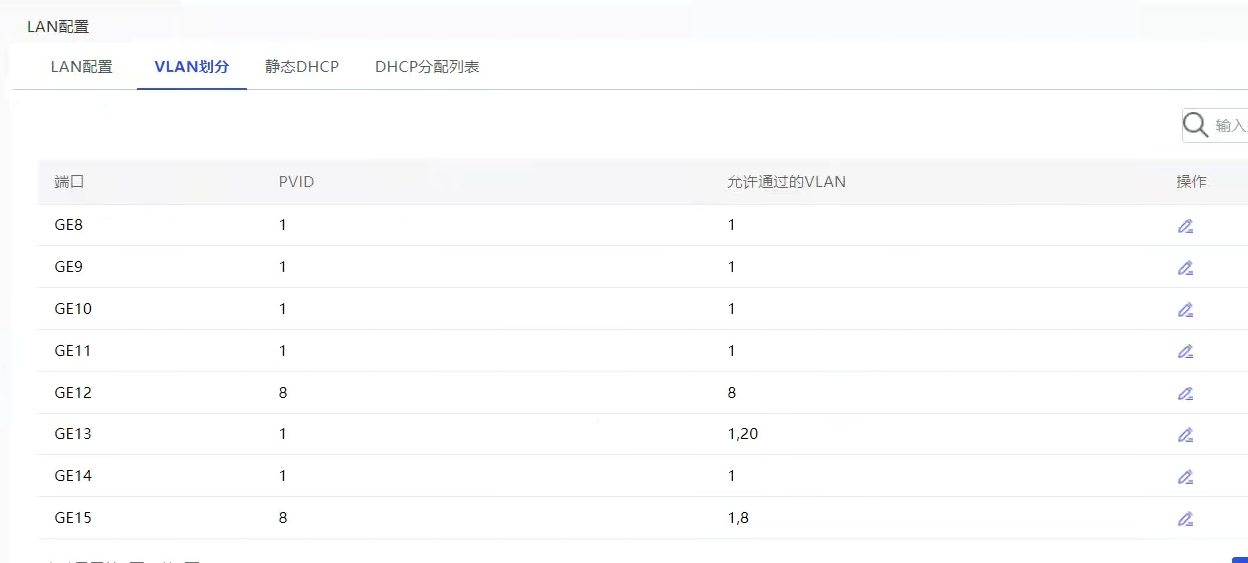

查看接口放通配置，vlan5虽然没有放通，但是vlan8有

查看命令行发现对应的IPOE命令只有vlan1接口有下发：

#

interface Vlan-interface1

description LAN-interface

ip address x.x.x.x 255.255.254.0

tcp mss 1280

nat hairpin enable

undo dhcp select server

ip subscriber l2-connected enable

ip subscriber initiator dhcp enable

ip subscriber initiator unclassified-ip enable

ip subscriber dhcp domain ipoeenabledomain

ip subscriber unclassified-ip domain ipoeenabledomain

#

interface Vlan-interface5

description des ER8300-cp

ip address x.x.x.x 255.255.255.0

nat hairpin enable

#

interface Vlan-interface8

description des ER8300-cp

ip address x.x.x.x 255.255.255.0

tcp mss 1280

nat hairpin enable

undo dhcp select server

#

对比发现接口描述不一致

修改接口描述

interface Vlan-interface8

description des ER8300-cp//改成LAN-interface

ip address x.x.x.x 255.255.255.0

nat hairpin enable
