HPE Network Adapters -在某些基于 HPE Broadcom NX1 的网卡固件更新后，MBA 配置可能会重置为默认设置

HPE Network Adapters - MBA Configuration Settings May Reset to Default Values After Updating the Firmware On Certain HPE Broadcom NX1-Based Network Adapters

文档 ID：a00147410en_us    Last Updated: 2025-06-13

影响范围：

任何HPE 平台配置有以下基于 HPE Broadcom NX1 网络适配器 ：

• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE (P51178-B21)
• Broadcom BCM5719 Ethernet 1Gb 4-port Base-T LOM Adapter for HPE (LOM)
• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE (P51181-B21)
• Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T LOM Adapter for HPE (LOM)

任何HPE 服务器配置了上述列出的 HPE Broadcom NX1 的网卡 ，多重引导代理 (MBA) 配置可能会在网卡固件更新后被重置为默认设置  。

这是因为 v20.25.42（或更高版本）的网卡固件执行了错误代码而导致。

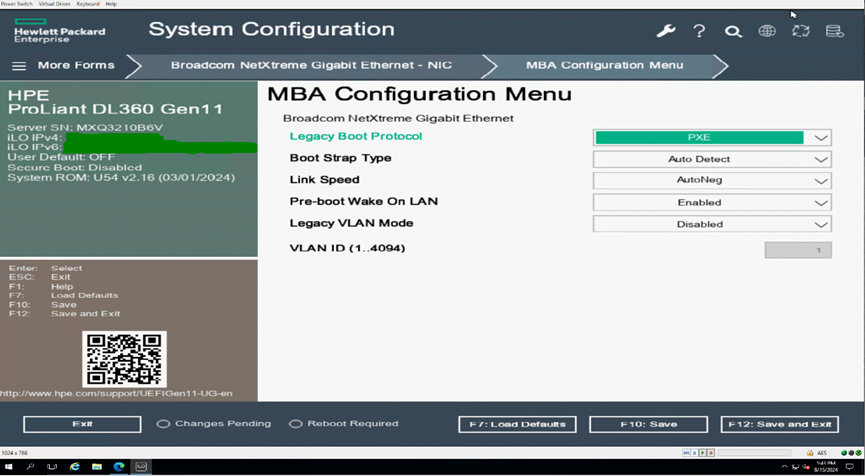

以下是 BIOS/平台配置 (RBSU) 中多重引导代理 (MBA) 配置屏幕的示例：

N/A

要解决此问题，下载安装如下固件：

For HPE BCM NX1 2-port network adapters

Broadcom NX1 Online Firmware Upgrade Utility for Windows Server x64 Editions Version 5.4.4.0 (or later)

Broadcom NX1 Online Firmware Upgrade Utility for Linux x86_64 Version 2.40.0 (or later)

Broadcom NX1 Online Firmware Upgrade Utility for VMware Version 1.41.0 (or later)

HPE BCM NX1 4-port network adapters

Broadcom NX1 Online Firmware Upgrade Utility for Windows Server x64 Editions Version 5.4.5.0 (or later)

Broadcom NX1 Online Firmware Upgrade Utility for Linux x86_64 Version 2.41.0 (or later)

Broadcom NX1 Online Firmware Upgrade Utility for VMware Version 1.42.0 (or later)
