安全防火墙双出口、双等价路由、双隧道的ipsec配置案例

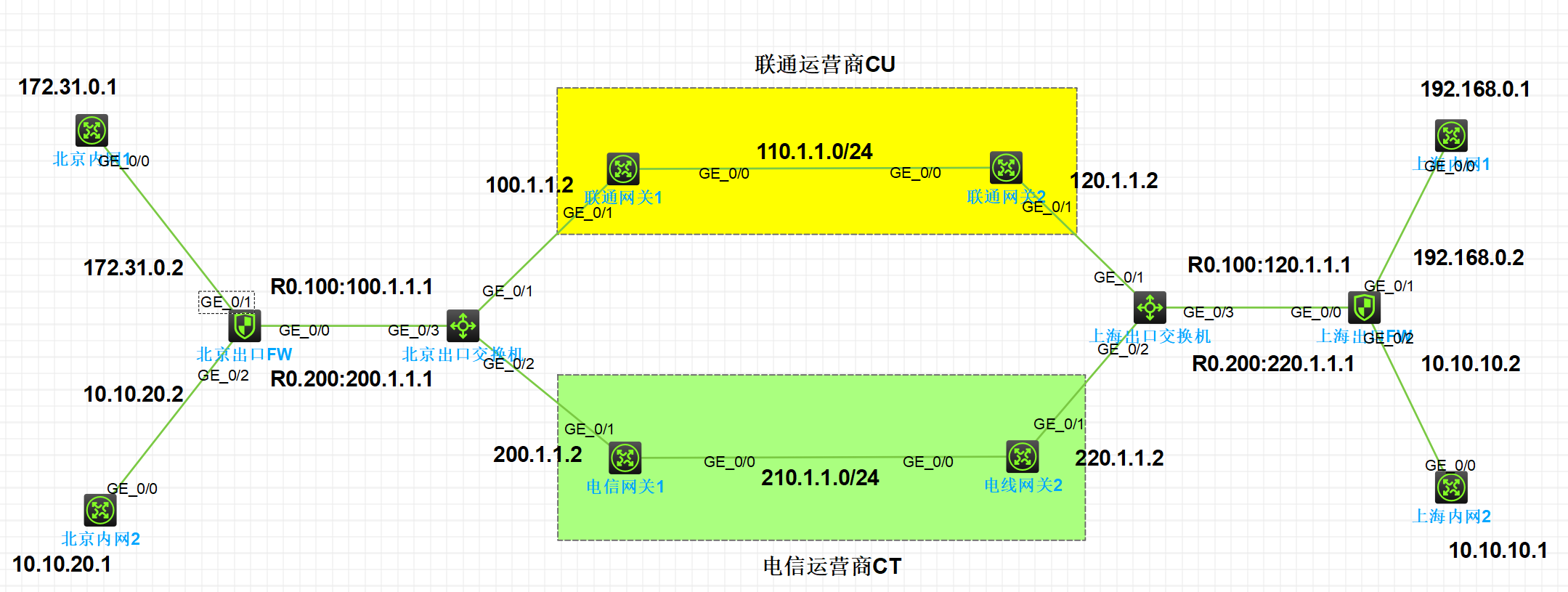

案例组网介绍：

（1）现场上海总部，北京分支；全部使用固定地址建立IPSEC

（2）总部使用模版的方式不校验分支的地址；

（3）总部和分支各有两个公网地址：CU联通  和  CT电信

============北京出口防火墙配置============

vlan 1
#
policy-based-route ipsec permit node 10
 if-match acl 3333
 apply next-hop 100.1.1.2
#
policy-based-route ipsec permit node 20
 if-match acl 3334
 apply next-hop 200.1.1.2
#
interface NULL0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/0.100
 description To-CU
 ip address 100.1.1.1 255.255.255.0
 vlan-type dot1q vid 100
 ipsec apply policy IDCCU
#
interface GigabitEthernet1/0/0.200
 description To-CT
 ip address 200.1.1.1 255.255.255.0
 vlan-type dot1q vid 200
 ipsec apply policy IDCCT
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 172.31.0.2 255.255.255.0
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
 ip address 10.10.20.2 255.255.255.0
#
security-zone name Management
#
security-zone name CT
 import interface GigabitEthernet1/0/0.200
#
security-zone name CU
 import interface GigabitEthernet1/0/0.100
#
security-zone name Trust1
 import interface GigabitEthernet1/0/1
#
security-zone name Trust2
 import interface GigabitEthernet1/0/2
#
 ip route-static 0.0.0.0 0 100.1.1.2
 ip route-static 0.0.0.0 0 200.1.1.2
 ip route-static 192.168.0.1 32 100.1.1.2
 ip route-static 192.168.0.1 32 200.1.1.2
#
 ip local policy-based-route ipsec
#
acl advanced 3333
 rule 0 permit ip source 100.1.1.1 0
#
acl advanced 3334
 rule 0 permit ip source 200.1.1.1 0
#
acl advanced name CUCT
 rule 0 permit ip source 172.31.0.1 0 destination 192.168.0.1 0
 rule 5 permit ip source 10.10.20.1 0 destination 10.10.10.1 0
#
ipsec transform-set ipsectransCT
 esp encryption-algorithm aes-cbc-256
 esp authentication-algorithm sha256
#
ipsec transform-set ipsectransCU
 esp encryption-algorithm aes-cbc-256
 esp authentication-algorithm sha256
#
ipsec policy IDCCT 2 isakmp
 transform-set ipsectransCT
 security acl name CUCT
 local-address 200.1.1.1
 remote-address 220.1.1.1
 ike-profile profileCT
 sa trigger-mode auto
#
ipsec policy IDCCU 1 isakmp
 transform-set ipsectransCU
 security acl name CUCT
 local-address 100.1.1.1
 remote-address 120.1.1.1
 ike-profile profileCU
 sa trigger-mode auto
#
ike profile profileCT
 keychain CT
 exchange-mode aggressive
 match remote identity address 220.1.1.1 255.255.255.255
 match local address GigabitEthernet1/0/0.200
 proposal 1
#
ike profile profileCU
 keychain CU
 exchange-mode aggressive
 match remote identity address 120.1.1.1 255.255.255.255
 match local address GigabitEthernet1/0/0.100
 proposal 1
#
ike proposal 1
 encryption-algorithm aes-cbc-256
 dh group14
 authentication-algorithm sha256
#
ike keychain CT
 match local address GigabitEthernet1/0/0.200
 pre-shared-key address 220.1.1.1 255.255.255.255 key cipher $c$3$jrfpxcGv4+l+aB48H+EHLOs6YP2saA==
#
ike keychain CU
 match local address GigabitEthernet1/0/0.100
 pre-shared-key address 120.1.1.1 255.255.255.255 key cipher $c$3$YhZQpl54n/KsmnsRr+2FiaMr+mL+rw==
#
security-policy ip
 rule 0 name 00
  action pass


======================上海出口防火墙配置==========================

<H3C>dis cu
#
vlan 1
#
policy-based-route ipsec permit node 10
 if-match acl 3333
 apply next-hop 120.1.1.2
#
policy-based-route ipsec permit node 20
 if-match acl 3334
 apply next-hop 220.1.1.2
#
interface NULL0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/0.100
 description To-CU
 ip address 120.1.1.1 255.255.255.0
 vlan-type dot1q vid 100
 ipsec apply policy IDCCU
#
interface GigabitEthernet1/0/0.200
 description To-CT
 ip address 220.1.1.1 255.255.255.0
 vlan-type dot1q vid 200
 ipsec apply policy IDCCT
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 192.168.0.2 255.255.255.0
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
 ip address 10.10.10.2 255.255.255.0
#
security-zone name CT
 import interface GigabitEthernet1/0/0.200
#
security-zone name CU
 import interface GigabitEthernet1/0/0.100
#
security-zone name Trust1
 import interface GigabitEthernet1/0/1
#
security-zone name Trust2
 import interface GigabitEthernet1/0/2
#
 ip route-static 0.0.0.0 0 120.1.1.2
 ip route-static 0.0.0.0 0 220.1.1.2
 ip route-static 172.31.0.1 32 220.1.1.2
 ip route-static 172.31.0.1 32 120.1.1.2
#
 ip local policy-based-route ipsec
#
acl advanced 3333
 rule 0 permit ip source 120.1.1.1 0
#
acl advanced 3334
 rule 0 permit ip source 220.1.1.1 0
#
ipsec transform-set ipsectransCT
 esp encryption-algorithm aes-cbc-256
 esp authentication-algorithm sha256
#
ipsec transform-set ipsectransCU
 esp encryption-algorithm aes-cbc-256
 esp authentication-algorithm sha256
#
ipsec policy-template CT 2
 transform-set ipsectransCT
 local-address 220.1.1.1
 ike-profile profileCT
#
ipsec policy-template CU 1
 transform-set ipsectransCU
 local-address 120.1.1.1
 ike-profile profileCU
#
ipsec policy IDCCT 2 isakmp template CT
#
ipsec policy IDCCU 1 isakmp template CU
#
ike profile profileCT
 keychain CT
 exchange-mode aggressive
 match remote identity address 0.0.0.0 0.0.0.0
 match local address GigabitEthernet1/0/0.200
 proposal 1
#
ike profile profileCU
 keychain CU
 exchange-mode aggressive
 match remote identity address 0.0.0.0 0.0.0.0
 match local address GigabitEthernet1/0/0.100
 proposal 1
#
ike proposal 1
 encryption-algorithm aes-cbc-256
 dh group14
 authentication-algorithm sha256
#
ike keychain CT
 match local address GigabitEthernet1/0/0.200
 pre-shared-key address 0.0.0.0 0.0.0.0 key cipher $c$3$wCaM6dCAG+jaVMFNHBlkAnHRKSD8YA==
#
ike keychain CU
 match local address GigabitEthernet1/0/0.100
 pre-shared-key address 0.0.0.0 0.0.0.0 key cipher $c$3$JzyGhiFbR6rVrL0onk2B2WesT6NsfQ==
#
security-policy ip
 rule 0 name 00
  action pass
#

案例中解释：

（1）使用acl CUCT包括所有的地址，是为了让所有的流量能在两个隧道走，不区分；

（2）开启ipsec自动触发是为了先把隧道建立起来，兴趣流能直接走隧道封装转发；

（3）！！！关键！！！使用本地PBR是为了让联通的流量一定从联通链路发出、电信的流量一定走电信链路；

（4）总部配置0.0.0.0不认证对端的地址，有可能分支是用的拨号上网；另外本地PBR也不写目的地址原因亦如此；

（5）相同的proposal建议直接调用，不要出现内容相同，proposal ID不同的情况；

本案例结果：

172和192互通

10.10.10.1和10.10.20.1互通；
