ipsec ikev2配置案例

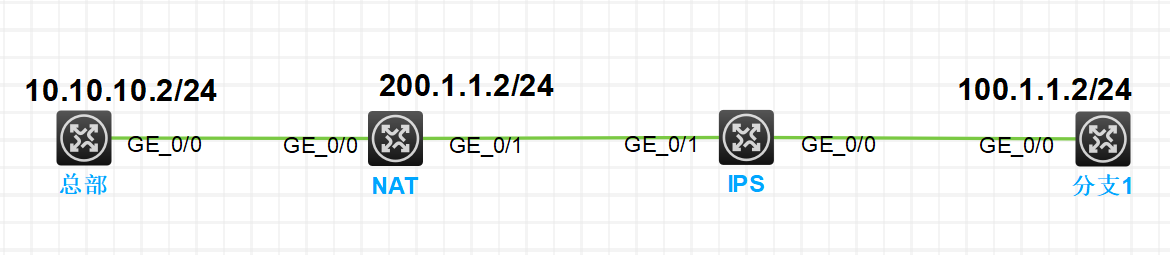

组网图如下:

总部配置如下:

ip vpn-instance vrf

interface LoopBack0    //loopback口模拟业务流量

 ip binding vpn-instance vrf

 ip address 2.2.2.2 255.255.255.255

interface GigabitEthernet0/0

 ip binding vpn-instance vrf

 ip address 10.10.10.2 255.255.255.0

interface Tunnel1000 mode ipsec   //创建tunnel口模式是ipsec

 ip binding vpn-instance vrf   //绑定vpn实例vrf

 ip address 192.168.213.22 255.255.255.248

 source 10.10.10.2

 destination 100.1.1.2

 tunnel vpn-instance vrf    //tunnel口属于vpn实例vrf

 tunnel protection ipsec profile fenzhi1

ip route-static vpn-instance vrf 0.0.0.0 0 10.10.10.1

 ip route-static vpn-instance vrf 1.1.1.1 32 Tunnel1000

ipsec transform-set fenzhi1

 esp encryption-algorithm aes-cbc-256

 esp authentication-algorithm sha256

 pfs dh-group14

ipsec profile fenzhi1 isakmp

 transform-set fenzhi1

 ikev2-profile fenzhi1

#

ikev2 keychain fenzhi1

 peer fenzhi1

  address 100.1.1.2 255.255.255.255

  identity address  100.1.1.2

  pre-shared-key plaintext 123456

ikev2 profile fenzhi1

 authentication-method local pre-share

 authentication-method remote pre-share

 keychain fenzhi1

 identity local fqdn test

 inside-vrf vrf

 match vrf name vrf

 match remote identity address 100.1.1.2 255.255.255.255

ikev2 proposal fenzhi1

 encryption aes-cbc-256

 integrity sha256

 dh group14

ikev2 policy fenzhi1

 match vrf name vrf   //这个很关键需要绑定vrf，否则无法匹配上导致失败

 proposal fenzhi1

分支配置:

interface GigabitEthernet0/0

 ip address 100.1.1.2 255.255.255.0

interface Tunnel3 mode ipsec

 ip address 192.168.213.17 255.255.255.248

 source 100.1.1.2

 destination 200.1.1.2

 tunnel protection ipsec profile zongbu

ip route-static 0.0.0.0 0 100.1.1.1

  ip route-static 2.2.2.2 32 Tunnel3

ipsec transform-set zongbu

 esp encryption-algorithm aes-cbc-256

 esp authentication-algorithm sha256

 pfs dh-group14

ipsec profile zongbu isakmp

 transform-set zongbu

 ikev2-profile zongbu

ikev2 keychain zongbu

 peer zongbu

  address 200.1.1.2

  identity address 200.1.1.2

  pre-shared-key plaintext 123456

ikev2 profile zongbu

 authentication-method local pre-share

 authentication-method remote pre-share

 keychain zongbu

 match remote identity fqdn test

ikev2 proposal zongbu

 encryption aes-cbc-256

 integrity sha256

 dh group14

ikev2 policy zongbu    //创建ikev2 policy

 proposal zongbu     //调用proposal

NAT 设备配置

interface GigabitEthernet0/0

 ip address 10.10.10.1 255.255.255.0

interface GigabitEthernet0/1

 ip address 200.1.1.2 255.255.255.0

 nat outbound

 nat server protocol udp global current-interface 500 inside 172.25.23.5 500

 nat server protocol udp global current-interface 4500 inside 172.25.23.5 4500

ip route-static 0.0.0.0 0 200.1.1.1

IPS配置:

interface GigabitEthernet0/0

 ip address 100.1.1.1 255.255.255.0

interface GigabitEthernet0/1

 ip address 200.1.1.1 255.255.255.0

注意事项:

因为总部这边是有vpn实例,所以在对应的ikev2的policy地方调用vrf否则会导致policy查询不到 tunnel口down

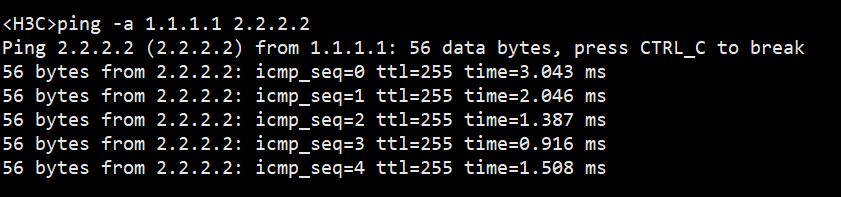

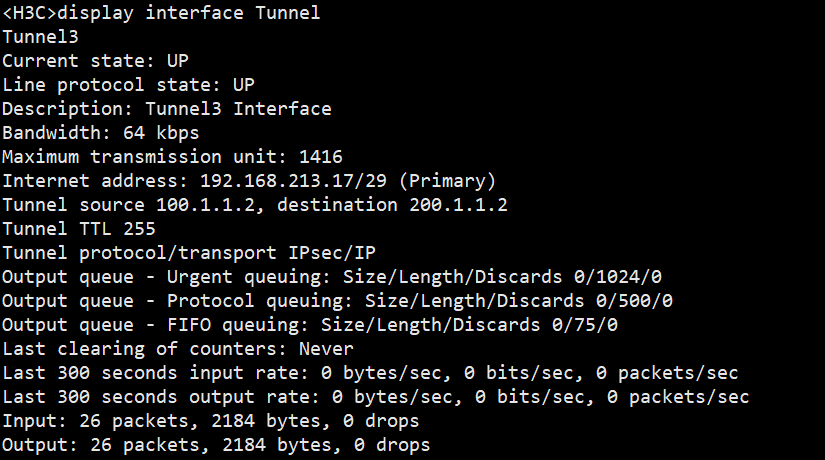

测试情况:
