出现失败的情况是:
inode客户端可以自动识别到portal 服务器ip,用户名和密码,但链接失败,打开网页也没有web portal跳转,但电脑可以通imc服务器的地址

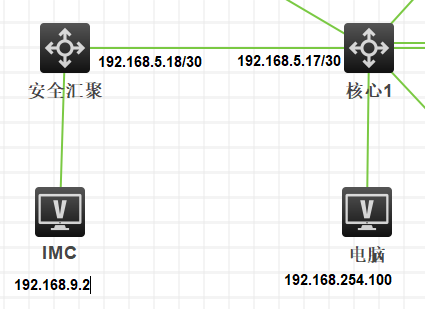

拓扑图:
以下是核心上的配置:
radius scheme test1
primary authe 192.168.9.2 1812
primary acc 192.168.9.2 1813
key authe s test
key acc s test
user-name-format with-domain
#
domain portal
authen portal radius-scheme test1
author portal radius-scheme test1
accoun portal radius-scheme test1
#
portal server myportal
ip 192.168.9.2 key s test
#
portal web-server myportal
url http://192.168.9.2:8080/portal/
#
int vl 2001
portal enable method direct
portal apply web-server myportal
portal bas-ip 192.168.253.254
ip a 192.168.253.254 255.255.255.0
#
(0)
最佳答案
直接输入
http://192.168.9.2:8080/portal/ 能打开吗
(0)
能打开,但输入用户名和密码提示链接失败
能打开,但输入用户名和密码提示链接失败
您好,请知:
以下是IMC下portal认证失败的处理案例,请参考:
https://zhiliao.h3c.com/Theme/details/101812
(0)
亲~登录后才可以操作哦!
确定你的邮箱还未认证,请认证邮箱或绑定手机后进行当前操作
举报
×
侵犯我的权益
×
侵犯了我企业的权益
×
抄袭了我的内容
×
原文链接或出处
诽谤我
×
对根叔社区有害的内容
×
不规范转载
×
举报说明
如果没有用户没有这方面要求,建议不要配置服务类型,设备radius下不带域,配置会简单很多
