wx2540h在三层结构中怎么设置旁路模式

您好，请知：

主要是做好设备间的三层互联及路由发布或指向。确保AP与AC、DHCP服务器的路由可达。

剩下的就是在AC内配置服务模板、射频接口、AP注册等相关配置。

以下是配置举例，请参考：

1.24.4  配置开启自动AP功能建立CAPWAP隧道举例

1. 组网需求

在AC上开启自动AP功能，MAC地址为0011-2200-0101的AP通过DHCP选项方式获取到AC的IP地址，AP通过获取到的AC的IP地址发现AC并与AC建立CAPWAP隧道连接。

2. 组网图

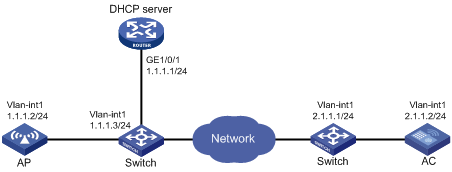

图1-6 开启自动AP功能建立CAPWAP隧道典型组网图

3. 配置步骤

(1)     配置DHCP server

# 使能DHCP服务器功能。

<DHCP Server> system-view

[DHCP Server] dhcp enable

# 配置DHCP地址池1。

[DHCP Server] dhcp server ip-pool 1

[DHCP Server-dhcp-pool-1] network 1.1.1.0 mask 255.255.255.0

# 通过自定义选项的方式配置Option 43的内容，为AP指定AC的IP地址。注意Option 43选项内容中最后四字节为02010102（2.1.1.2），即为AC的IP地址。

[DHCP Server-dhcp-pool-1] option 43 hex 800700000102010102

[DHCP Server-dhcp-pool-1] gateway-list 1.1.1.3

[DHCP Server-dhcp-pool-1] quit

[DHCP Server] quit

(2)     配置AC

# 配置AC的VLAN-interface 1的IP地址为2.1.1.2/24。

<AC> system-view

[AC] interface vlan-interface 1

[AC-Vlan-interface1] ip address 2.1.1.2 24

[AC-Vlan-interface1] quit

# 配置缺省路由，指定下一跳为2.1.1.1。

[AC] ip route-static 0.0.0.0 0 2.1.1.1

# 开启自动AP功能。

[AC] wlan auto-ap enable

4. 验证配置

# 通过display wlan ap name 0011-2200-0101 verbose命令查看ap的详细信息，可以看到该AP已成功建立CAPWAP隧道连接。

[AC] display wlan ap name 0011-2200-0101 verbose

AP name                       : 0011-2200-0101

AP ID                         : 1

AP group name                 : default-group

State                         : Run

Backup type                   : Master

Online time                   : 0 days 1 hours 25 minutes 12 seconds

System up time                : 0 days 2 hours 22 minutes 12 seconds

Model                         : WA4320i-ACN

Region code                   : CN

Region code lock              : Disable

Serial ID                     : 219801A0CNC138011454

MAC address                   : 0011-2200-0101

IP address                    : 1.1.1.2

UDP port number               : 18313

H/W version                   : Ver.C

S/W version                   : R2206P02

Boot version                  : 1.01

USB state                     : N/A

Power Level                   : N/A

PowerInfo                     : N/A

Description                   : wtp1

Priority                      : 4

Echo interval                 : 10 seconds

Statistics report interval    : 50 seconds

Fragment size (data)          : 1500

Fragment size (control)       : 1450

MAC type                      : Local MAC & Split MAC

Tunnel mode                   : Local Bridging & 802.3 Frame & Native Frame

Discovery type                : DHCP

Retransmission count          : 3

Retransmission interval       : 5 seconds

Firmware upgrade              : Enabled

Sent control packets          : 1

Received control packets      : 1

Echo requests                 : 147

Lost echo responses           : 0

Average echo delay            : 3

Last reboot reason            : User soft reboot

Latest IP address             : 10.1.0.2

Tunnel down reason            : Request wait timer expired

Connection count              : 1

Backup Ipv4                   : Not configured

Backup Ipv6                   : Not configured

Tunnel encryption             : Disabled

LED mode                      : Normal

Remote configuration          : Enabled

Radio 1:

    Basic BSSID               : 7848-59f6-3940

    Admin state               : Up

    Radio type                : 802.11ac

    Antenna type              : internal

    Client dot11ac-only       : Disabled

    Client dot11n-only        : Disabled

    Channel band-width        : 20/40/80MHz

    Active band-width         : 20/40/80MHz

    Secondary channel offset  : SCB

    Short GI for 20MHz        : Supported

    Short GI for 40MHz        : Supported

    Short GI for 80MHz        : Supported

    Short GI for 160MHz       : Not supported

    A-MSDU                    : Enabled

    A-MPDU                    : Enabled

    LDPC                      : Not Supported

    STBC                      : Supported

    Operational VHT-MCS Set:

        Mandatory             : Not configured

        Supported             : NSS1 0,1,2,3,4,5,6,7,8,9

                                NSS2 0,1,2,3,4,5,6,7,8,9

        Multicast             : Not configured

    Operational HT MCS Set:

        Mandatory             : Not configured

        Supported             : 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,

                                10, 11, 12, 13, 14, 15

        Multicast             : Not configured

    Channel                   : 44(auto)

    Channel usage(%)          : 15

    Max power                 : 20 dBm

    Operational rate:

        Mandatory             : 6, 12, 24 Mbps

        Multicast             : Auto

        Supported             : 9, 18, 36, 48, 54 Mbps

        Disabled              : Not configured

    Distance                  : 1 km

    ANI                       : Enabled

    Fragmentation threshold   : 2346 bytes

    Beacon interval           : 100 TU

    Protection threshold      : 2346 bytes

    Long retry threshold      : 4

    Short retry threshold     : 7

    Maximum rx duration       : 2000 ms

    Noise Floor               : -102 dBm

    Smart antenna             : Enabled

    Smart antenna policy      : Auto

    Protection mode           : rts-cts

    Continuous mode           : N/A

    HT protection mode        : No protection

Radio 2:

    Basic BSSID               : 7848-59f6-3950

    Admin state               : Down

    Radio type                : 802.11b

    Antenna type              : internal

    Client dot11n-only        : Disabled

    Channel band-width        : 20MHz

    Active band-width         : 20MHz

    Secondary channel offset  : SCN

    Short GI for 20MHz        : Supported

    Short GI for 40MHz        : Supported

    A-MSDU                    : Enabled

    A-MPDU                    : Enabled

    LDPC                      : Not Supported

    STBC                      : Supported

    Operational HT MCS Set:

        Mandatory             : Not configured

        Supported             : 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,

                                10, 11, 12, 13, 14, 15

        Multicast             : Not configured

    Channel                   : 5(auto)

    Channel usage(%)          : 0

    Max power                 : 20 dBm

    Preamble type             : Short

    Operational rate:

        Mandatory             : 1, 2, 5.5, 11 Mbps

        Multicast             : Auto

        Supported             : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

        Disabled              : Not configured

    Distance                  : 1 km

    ANI                       : Enabled

    Fragmentation threshold   : 2346 bytes

    Beacon interval           : 100 TU

    Protection threshold      : 2346 bytes

    Long retry threshold      : 4

    Short retry threshold     : 7

    Maximum rx duration       : 2000 ms

    Noise Floor               : 0 dBm

    Smart antenna             : Enabled

    Smart antenna policy      : Auto

    Protection mode           : rts-cts

    Continuous mode           : N/A

    HT protection mode        : No protection
