最佳答案
为了防止小区内有恶意用户盗用PC1的IP地址,将PC1的MAC地址和IP地址绑定到Switch A上的Ethernet2/0/1端口。

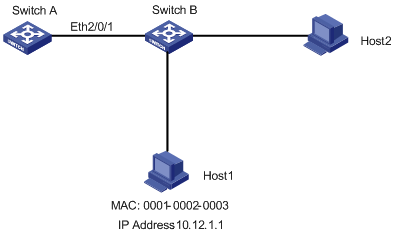

图1-1 端口绑定配置组网图
# 进入系统视图。
<H3C> system-view
# 进入Ethernet2/0/1端口视图。
[H3C] interface Ethernet2/0/1
# 将PC1的MAC地址和IP地址绑定到Ethernet2/0/1端口。
[H3C-Ethernet2/0/1] am user-bind mac-addr 0001-0002-0003 ip-addr 10.12.1.1
(0)
ipsource guard端口绑定?
<H3C>system-view
[H3C]am user-bind mac-addr mac-address ip-addr ip-address [ interface interface-type interface-number ]
2.进入端口视图
[H3C]interface interface-type interface-number
[H3C-interface-type interface-number]am user-bind { ip-addr ip-address | mac-addr mac-address [ ip-addr ip-address ] }
注:二者必选其一
