WA6320

升级前的准备

AP通过以太网线缆连接到AC，配置AP上线后，用户可以通过AC直接下载AP版本进行自动升级。

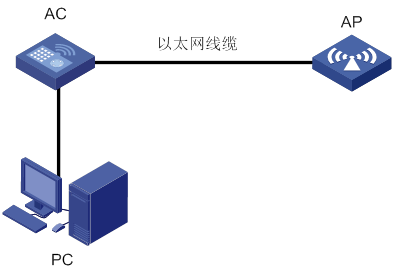

图B-1 设备的升级环境

B.2.2 AP版本升级

1. 在AC上配置对应型号的AP的模板，并开启版本升级功能

# 创建ap100，型号为WA6320。

<Sysname> system-view

[Sysname] wlan ap ap100 model WA6320

# 配置AP的序列号。

[Sysname-wlan-ap-ap100] serial-id 219801A1LHA10A100610

[Sysname-wlan-ap-ap100] quit

2. AC上启动DHCP服务

# 开启DHCP服务。

[Sysname] dhcp enable

# 创建DHCP地址池并进入DHCP地址池视图。

[Sysname] dhcp server ip-pool dhcp1601

# 配置DHCP地址池动态分配的IP地址网段。

[Sysname-dhcp-pool-dhcp1601] network 160.1.1.0 mask 255.255.255.0

[Sysname-dhcp-pool-dhcp1601] quit

3. AP自动完成升级

完成上述配置后，AP会自动下载版本，通过display wlan ap all命令可以查看AP的状态为正在下载版本。

<Sysname> display wlan ap all

Total number of aps: 1

Total number of connected aps: 0

Total number of connected configured aps: 0

Total number of connected auto aps: 0

Total number of connected anchor aps: 0

Maximum ap capacity: 512

Remaining ap capacity: 512

Maximum ap license: 0

Remaining ap license: 0

Maximum WTU license: 100

Remaining WTU license: 100

                                 AP information

 STAte : I = Idle,      J  = Join,       JA = JoinAck,    IL = ImageLoad

         C = Config,    DC = DataCheck,  R  = Run,   M = Master,  B = Backup

AP name                AP ID   STAte   Model             Serial ID

--------------------------------------------------------------------------------

ap100                  1       IL      WA6320            219801A1LHA10A100610

升级完毕后AP会自动重启，在AP上使用display version命令查看版本信息已经是最新的V7的版本。

<H3C> display version

H3C Comware Software, Version 7.1.064, Release 2442

Copyright (c) 2004-2021 New H3C Technologies Co., Ltd. All rights reserved.

H3C WA6320 uptime is 0 weeks, 0 days, 0 hours, 0 minutes

Last reboot reason : User soft reboot

Boot image: flash:/wa6300-boot.bin

Boot image version: 7.1.064, Release 2442

  Compiled Mar 15 2021 16:00:00

System image: flash:/wa6300-system.bin

System image version: 7.1.064, Release 2442

  Compiled Mar 15 2021 16:00:00

with 1 ARM 1000MHz Processor

512M bytes DDR4

128M bytes NandFlash Memory

Hardware Version is Ver.A

Basic Bootrom Version is 7.08

Extend Bootrom Version is 7.15

[Subslot 0]H3C WA6320 Hardware Version is Ver.A

[SLOT 1]GE1/0/1     (Hardware)Ver.A, (Driver)1.0

[SLOT 1]RADIO1/0/1  (Hardware)Ver.A, (Driver)1.0

[SLOT 1]RADIO1/0/2  (Hardware)Ver.A, (Driver)1.0

您好，请知：

无法刷版本上设备，以下是排查要点，请参考：

1、检查要刷的版本是否适配当前的设备。

2、检查设备的存储空间是否足够使用。

3、检查设备到PC的网线和基础网络是否有问题。

4、参考举例如下：
