虚拟化融合AC需要两个交换机都上传解压UWM包嘛？

交换机支持AC功能典型配置举例

1.5.1  集中式IRF设备配置举例

1. 配置需求

·     IRF由两个成员设备组成：主设备的成员编号为1，从设备的成员编号为2。

·     在交换机上安装融合AC，使交换机支持AC功能。

·     在确定不再使用融合AC提供的功能后，卸载并删除融合AC。

2. 组网图

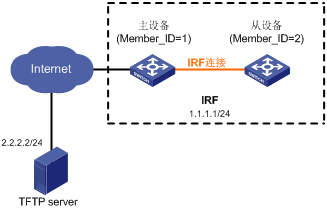

图1-1 交换机支持融合AC组网图

3. 安装融合AC

# 从TFTP server下载s7500exsv2-uww.bin包。

<Sysname> tftp 2.2.2.2 get s7500exsv2-uww.bin

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current

                                 Dload  Upload   Total   Spent    Left  Speed

100 34.6M  100 34.6M    0     0   764k      0 --:--:-- --:--:-- --:--:--  810k

Writing file...Done.

# 显示融合AC的相关信息。

<Sysname> display install package flash:/s7500exsv2-uww.bin verbose

  flash:/S7500EXSV2-UWW.bin

  [Package]

  Vendor: H3C

  Product: S7500EXSV2

  Service name: wlan

  Platform version: 7.1.064

  Product version: Release 5120

  Supported board: mpu

  Version type: debug

  [Component]

  Component: wlan

  Description: wlan package

# 查看更新前激活的软件包。

<Sysname> display install active

Active packages on slot 1:

  flash:/S7500EXS-CMW710-BOOT-A752301.bin

  flash:/S7500EXS-CMW710-SYSTEM-A752301.bin

  flash:/S7500EXS-CMW710-DEVKIT-A752301.bin

  flash:/S7500EXS-CMW710-MANUFACTURE-A752301.bin

Active packages on slot 2:

  flash:/S7500EXS-CMW710-BOOT-A752301.bin

  flash:/S7500EXS-CMW710-SYSTEM-A752301.bin

  flash:/S7500EXS-CMW710-DEVKIT-A752301.bin

  flash:/S7500EXS-CMW710-MANUFACTURE-A752301.bin

# 显示融合AC的更新方式。

<Sysname> install activate feature flash:/s7500exsv2-uww.bin slot 1 test

Verifying the file flash:/s7500exsv2-uww.bin on slot 1..............Done.

Identifying the upgrade methods.....Done.

Upgrade summary according to following table:

flash:/s7500exsv2-uww.bin

  Running Version             New Version

  None                        Release 5121P11

  Slot                        Upgrade Way

  1                           Service Upgrade

Influenced service according to following table on slot 1:

flash:/s7500exsv2-uww.bin

comsh     cfad

<Sysname> install activate feature flash:/s7500exsv2-uww.bin slot 2 test

Copying file flash:/s7500exsv2-uww.bin to slot2#flash:/s7500exsv2-uww.bin............Done.

Verifying the file flash:/s7500exsv2-uww.bin on slot 2..............Done.

Identifying the upgrade methods.....Done.

Upgrade summary according to following table:

flash:/s7500exsv2-uww.bin

  Running Version             New Version

  None                        Release 5121P11

  Slot                        Upgrade Way

  2                           Service Upgrade

Influenced service according to following table on slot 2:

flash:/s7500exsv2-uww.bin

comsh     cfad

以上显示信息表明，s7500exsv2-uww.bin的更新方式是增量。

# 激活融合AC特性包。

<Sysname> install activate feature flash:/s7500exsv2-uww.bin slot 1

Verifying the file flash:/s7500exsv2-uww.bin on slot 1..............Done.

Identifying the upgrade methods.....Done.

Upgrade summary according to following table:

flash:/s7500exsv2-uww.bin

  Running Version             New Version

  None                        Release 5121P11

  Slot                        Upgrade Way

  1                           Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait..............Done.

<Sysname> install activate feature flash:/s7500exsv2-uww.bin slot 2

File flash:/s7500exsv2-uww.bin already exists on slot 2.

Overwrite the existing files? [Y/N]:y

Copying file flash:/s7500exsv2-uww.bin to slot2#flash:/s7500exsv2-uww.bin............Done.

Verifying the file flash:/s7500exsv2-uww.bin on slot 2..............Done.

Identifying the upgrade methods.....Done.

Upgrade summary according to following table:

flash:/s7500exsv2-uww.bin

  Running Version             New Version

  None                        Release 5121P11

  Slot                        Upgrade Way

  2                           Service Upgrade

Upgrading software images to compatible versions. Continue? [Y/N]:y

This operation might take several minutes, please wait..............Done.

# 查看更新后激活的软件包。

<Sysname> display install active

Active packages on slot 1:

  flash:/S7500EXS-CMW710-BOOT-A752301.bin

  flash:/S7500EXS-CMW710-SYSTEM-A752301.bin

  flash:/S7500EXS-CMW710-DEVKIT-A752301.bin

  flash:/S7500EXS-CMW710-MANUFACTURE-A752301.bin

  flash:/s7500exsv2-uww.bin

Active packages on slot 2:

  flash:/S7500EXS-CMW710-BOOT-A752301.bin

  flash:/S7500EXS-CMW710-SYSTEM-A752301.bin

  flash:/S7500EXS-CMW710-DEVKIT-A752301.bin

  flash:/S7500EXS-CMW710-MANUFACTURE-A752301.bin

  flash:/s7500exsv2-uww.bin

# 确认对融合AC特性包的操作。

<Sysname> install commit

This operation will take several minutes, please wait..............Done.

4. 验证安装操作

退出并重新登录，AC功能相关命令可配置表示安装成功。

5. 卸载、删除融合AC

# 卸载融合AC。

<Sysname> install deactivate feature flash:/s7500exsv2-uww.bin slot 2

This operation might take several minutes, please wait..............Done.

<Sysname> install deactivate feature flash:/s7500exsv2-uww.bin slot 1

This operation might take several minutes, please wait..............Done.

# 确认对融合AC特性包的操作。

<Sysname> install commit

This operation will take several minutes, please wait..............Done.

# 显示存储介质根目录下没有被激活的软件包的相关信息。

<Sysname> display install inactive

Inactive packages on slot 1:

  flash:/s7500exsv2-uww.bin

Inactive packages on slot 2:

  flash:/s7500exsv2-uww.bin

# 删除融合AC。

<Sysname> install remove flash:/s7500exsv2-uww.bin

6. 验证卸载、删除操作

# 通过显示存储介质根目录下没有被激活的软件包的相关信息可以看出，系统已没有未被激活的软件包。

<Sysname> display install inactive

# 通过显示当前文件夹信息可以看出，指定Feature包已删除。

<Sysname> dir
