问

F100-S-XI

2025-01-07提问
  • 0关注
  • 0收藏，652浏览
小白的逆袭
小白的逆袭 二段
粉丝：0人 关注：2人

问题描述：

F100-S-XI后期要和好几个点位建立ipsec，这个型号支持配置ipsec模板吗，如果支持，该怎么配置，如果不支持，那点到点建立ipsec怎么配置？

还有就是化三的交换机怎么查看桥(背板)MAC

最佳答案

zhiliao_sEUyB
zhiliao_sEUyB 九段
粉丝：100人 关注：9人

支持的

看背板MAC干啥。。联系400咨询b




组网需求

如下图所示，某企业总部Device A有两条出口链路接入Internet，分支Device B和Device C各有一条出口链路接入Internet，要求实现如下需求：

  • 企业总部与各企业分支之间使用基于路由的IPsec隧道接口方式建立IPsec隧道；

  • 企业总部和各分支之间根据NQA探测结果，选择高质量、低延迟的链路动态建立IPsec隧道。

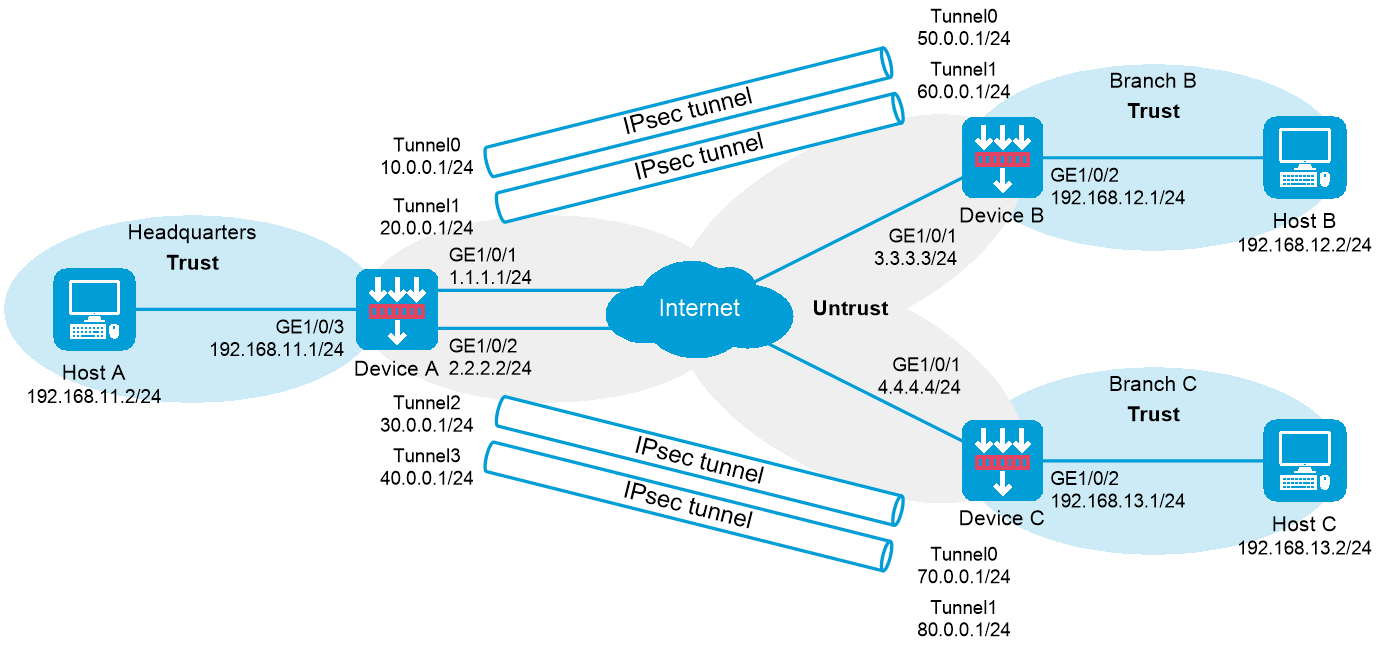

图-1 基于路由模式的总部采用双链路与分支建立IPsec隧道配置组网图

‌

配置步骤

配置Device A

  1. 配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<DeviceA> system-view

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] ip address 1.1.1.1 255.255.255.0

[DeviceA-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

  1. 创建IPsec隧道接口

# 创建IPsec隧道接口Tunnel0，具体配置步骤如下。

[DeviceA] interface tunnel 0 mode ipsec

[DeviceA-Tunnel0] ip address 10.0.0.1 255.255.255.0

[DeviceA-Tunnel0] source 1.1.1.1

[DeviceA-Tunnel0] destination 3.3.3.3

[DeviceA-Tunnel0] quit

# 创建IPsec隧道接口Tunnel1，具体配置步骤如下。

[DeviceA] interface tunnel 1 mode ipsec

[DeviceA-Tunnel1] ip address 20.0.0.1 255.255.255.0

[DeviceA-Tunnel1] source 2.2.2.2

[DeviceA-Tunnel1] destination 3.3.3.3

[DeviceA-Tunnel1] quit

# 创建IPsec隧道接口Tunnel2，具体配置步骤如下。

[DeviceA] interface tunnel 2 mode ipsec

[DeviceA-Tunnel2] ip address 30.0.0.1 255.255.255.0

[DeviceA-Tunnel2] source 1.1.1.1

[DeviceA-Tunnel2] destination 4.4.4.4

[DeviceA-Tunnel2] quit

# 创建IPsec隧道接口Tunnel3，具体配置步骤如下。

[DeviceA] interface tunnel 3 mode ipsec

[DeviceA-Tunnel3] ip address 40.0.0.1 255.255.255.0

[DeviceA-Tunnel3] source 2.2.2.2

[DeviceA-Tunnel3] destination 4.4.4.4

[DeviceA-Tunnel3] quit

  1. 配置接口加入安全域。

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[DeviceA] security-zone name trust

[DeviceA-security-zone-Trust] import interface gigabitethernet 1/0/3

[DeviceA-security-zone-Trust] quit

[DeviceA] security-zone name untrust

[DeviceA-security-zone-Untrust] import interface gigabitethernet 1/0/1

[DeviceA-security-zone-Untrust] import interface gigabitethernet 1/0/2

[DeviceA-security-zone-Untrust] import interface tunnel 0

[DeviceA-security-zone-Untrust] import interface tunnel 1

[DeviceA-security-zone-Untrust] import interface tunnel 2

[DeviceA-security-zone-Untrust] import interface tunnel 3

[DeviceA-security-zone-Untrust] quit

  1. 配置安全策略

  1. 配置安全策略放行Untrust与Local安全域之间的流量，用于设备之间可以建立IPsec隧道。

# 配置名称为ipseclocalout的安全策规则，使Device A可以向Device B和Device C发送IPsec隧道协商报文，具体配置步骤如下。

[DeviceA] security-policy ip

[DeviceA-security-policy-ip] rule name ipseclocalout

[DeviceA-security-policy-ip-1-ipseclocalout] source-zone local

[DeviceA-security-policy-ip-1-ipseclocalout] destination-zone untrust

[DeviceA-security-policy-ip-1-ipseclocalout] source-ip-host 1.1.1.1

[DeviceA-security-policy-ip-1-ipseclocalout] source-ip-host 2.2.2.2

[DeviceA-security-policy-ip-1-ipseclocalout] destination-ip-host 3.3.3.3

[DeviceA-security-policy-ip-1-ipseclocalout] destination-ip-host 4.4.4.4

[DeviceA-security-policy-ip-1-ipseclocalout] action pass

[DeviceA-security-policy-ip-1-ipseclocalout] quit

# 配置名称为ipseclocalin的安全策略规则，使Device A可以接收和处理来自Device B和Device C的IPsec隧道协商报文，具体配置步骤如下。

[DeviceA-security-policy-ip] rule name ipseclocalin

[DeviceA-security-policy-ip-2-ipseclocalin] source-zone untrust

[DeviceA-security-policy-ip-2-ipseclocalin] destination-zone local

[DeviceA-security-policy-ip-2-ipseclocalin] source-ip-host 3.3.3.3

[DeviceA-security-policy-ip-2-ipseclocalin] source-ip-host 4.4.4.4

[DeviceA-security-policy-ip-2-ipseclocalin] destination-ip-host 1.1.1.1

[DeviceA-security-policy-ip-2-ipseclocalin] destination-ip-host 2.2.2.2

[DeviceA-security-policy-ip-2-ipseclocalin] action pass

[DeviceA-security-policy-ip-2-ipseclocalin] quit

  1. 配置安全策略放行Host A与Host B、Host C之间的流量

# 配置名称为trust-untrust的安全策略规则，使Host A访问Host B、Host C的报文可通，具体配置步骤如下。

[DeviceA-security-policy-ip] rule name trust-untrust

[DeviceA-security-policy-ip-3-trust-untrust] source-zone trust

[DeviceA-security-policy-ip-3-trust-untrust] destination-zone untrust

[DeviceA-security-policy-ip-3-trust-untrust] source-ip-subnet 192.168.11.0 24

[DeviceA-security-policy-ip-3-trust-untrust] destination-ip-subnet 192.168.12.0 24

[DeviceA-security-policy-ip-3-trust-untrust] destination-ip-subnet 192.168.13.0 24

[DeviceA-security-policy-ip-3-trust-untrust] action pass

[DeviceA-security-policy-ip-3-trust-untrust] quit

# 配置名称为untrust-trust的安全策略规则，使Host B、Host C访问Host A的报文可通，具体配置步骤如下。

[DeviceA-security-policy-ip] rule name untrust-trust

[DeviceA-security-policy-ip-4-untrust-trust] source-zone untrust

[DeviceA-security-policy-ip-4-untrust-trust] destination-zone trust

[DeviceA-security-policy-ip-4-untrust-trust] source-ip-subnet 192.168.12.0 24

[DeviceA-security-policy-ip-4-untrust-trust] source-ip-subnet 192.168.13.0 24

[DeviceA-security-policy-ip-4-untrust-trust] destination-ip-subnet 192.168.11.0 24

[DeviceA-security-policy-ip-4-untrust-trust] action pass

[DeviceA-security-policy-ip-4-untrust-trust] quit

[DeviceA-security-policy-ip] quit

  1. 配置IPsec安全框架，建立IPsec隧道，保护需要防护的数据流

# 配置IPsec安全框架t0，建立IPsec隧道，具体配置步骤如下。

[DeviceA] ike keychain t0

[DeviceA-ike-keychain-t0] pre-shared-key address 3.3.3.3 255.255.255.0 key simple 123456TESTplat&!

[DeviceA-ike-keychain-t0] quit

[DeviceA] ike profile t0

[DeviceA-ike-profile-t0] keychain t0

[DeviceA-ike-profile-t0] match local address Tunnel0

[DeviceA-ike-profile-t0] match remote identity address 3.3.3.3 24

[DeviceA-ike-profile-t0] exchange-mode aggressive

[DeviceA-ike-profile-t0] dpd interval 30 periodic

[DeviceA-ike-profile-t0] quit

[DeviceA] ipsec transform-set t0

[DeviceA-ipsec-transform-set-t0] esp encryption-algorithm aes-cbc-128

[DeviceA-ipsec-transform-set-t0] esp authentication-algorithm sha1

[DeviceA-ipsec-transform-set-t0] quit

[DeviceA] ipsec profile t0 isakmp

[DeviceA-ipsec-profile-isakmp-t0] transform-set t0

[DeviceA-ipsec-profile-isakmp-t0] ike-profile t0

[DeviceA-ipsec-profile-isakmp-t0] quit

# 配置IPsec安全框架t1，建立IPsec隧道，具体配置步骤如下。

[DeviceA] ike keychain t1

[DeviceA-ike-keychain-t1] pre-shared-key address 3.3.3.3 255.255.255.0 key simple 123456TESTplat&!

[DeviceA-ike-keychain-t1] quit

[DeviceA] ike profile t1

[DeviceA-ike-profile-t1] keychain t1

[DeviceA-ike-profile-t1] match local address Tunnel1

[DeviceA-ike-profile-t1] match remote identity address 3.3.3.3 24

[DeviceA-ike-profile-t1] exchange-mode aggressive

[DeviceA-ike-profile-t1] dpd interval 30 periodic

[DeviceA-ike-profile-t1] quit

[DeviceA] ipsec transform-set t1

[DeviceA-ipsec-transform-set-t1] esp encryption-algorithm aes-cbc-128

[DeviceA-ipsec-transform-set-t1] esp authentication-algorithm sha1

[DeviceA-ipsec-transform-set-t1] quit

[DeviceA] ipsec profile t1 isakmp

[DeviceA-ipsec-profile-isakmp-t1] transform-set t1

[DeviceA-ipsec-profile-isakmp-t1] ike-profile t1

[DeviceA-ipsec-profile-isakmp-t1] quit

# 配置IPsec安全框架t2，建立IPsec隧道，具体配置步骤如下。

[DeviceA] ike keychain t2

[DeviceA-ike-keychain-t2] pre-shared-key address 4.4.4.4 255.255.255.0 key simple 123456TESTplat&!

[DeviceA-ike-keychain-t2] quit

[DeviceA] ike profile t2

[DeviceA-ike-profile-t2] keychain t2

[DeviceA-ike-profile-t2] match local address Tunnel2

[DeviceA-ike-profile-t2] match remote identity address 4.4.4.4 24

[DeviceA-ike-profile-t2] exchange-mode aggressive

[DeviceA-ike-profile-t2] dpd interval 30 periodic

[DeviceA-ike-profile-t2] quit

[DeviceA] ipsec transform-set t2

[DeviceA-ipsec-transform-set-t2] esp encryption-algorithm aes-cbc-128

[DeviceA-ipsec-transform-set-t2] esp authentication-algorithm sha1

[DeviceA-ipsec-transform-set-t2] quit

[DeviceA] ipsec profile t2 isakmp

[DeviceA-ipsec-profile-isakmp-t2] transform-set t2

[DeviceA-ipsec-profile-isakmp-t2] ike-profile t2

[DeviceA-ipsec-profile-isakmp-t2] quit

# 配置IPsec安全框架t3，建立IPsec隧道，具体配置步骤如下。

[DeviceA] ike keychain t3

[DeviceA-ike-keychain-t3] pre-shared-key address 4.4.4.4 255.255.255.0 key simple 123456TESTplat&!

[DeviceA-ike-keychain-t3] quit

[DeviceA] ike profile t3

[DeviceA-ike-profile-t3] keychain t3

[DeviceA-ike-profile-t3] match local address Tunnel3

[DeviceA-ike-profile-t3] match remote identity address 4.4.4.4 24

[DeviceA-ike-profile-t3] exchange-mode aggressive

[DeviceA-ike-profile-t3] dpd interval 30 periodic

[DeviceA-ike-profile-t3] quit

[DeviceA] ipsec transform-set t3

[DeviceA-ipsec-transform-set-t3] esp encryption-algorithm aes-cbc-128

[DeviceA-ipsec-transform-set-t3] esp authentication-algorithm sha1

[DeviceA-ipsec-transform-set-t3] quit

[DeviceA] ipsec profile t3 isakmp

[DeviceA-ipsec-profile-isakmp-t3] transform-set t3

[DeviceA-ipsec-profile-isakmp-t3] ike-profile t3

[DeviceA-ipsec-profile-isakmp-t3] quit

  1. 配置IPsec隧道接口，用于对需要保护的流量进行IPsec封装。

# 在IPsec隧道接口Tunnel0中引用IPsec安全框架t0，建立IPsec隧道。

[DeviceA] interface tunnel 0

[DeviceA-Tunnel0] tunnel protection ipsec profile t0

[DeviceA-Tunnel0] quit

# 在IPsec隧道接口Tunnel1中引用IPsec安全框架t1，建立IPsec隧道。

[DeviceA] interface tunnel 1

[DeviceA-Tunnel1] tunnel protection ipsec profile t1

[DeviceA-Tunnel1] quit

# 在IPsec隧道接口Tunnel2中引用IPsec安全框架t2，建立IPsec隧道。

[DeviceA] interface tunnel 2

[DeviceA-Tunnel2] tunnel protection ipsec profile t2

[DeviceA-Tunnel2] quit

# 在IPsec隧道接口Tunnel3中引用IPsec安全框架t3，建立IPsec隧道。

[DeviceA] interface tunnel 3

[DeviceA-Tunnel3] tunnel protection ipsec profile t3

[DeviceA-Tunnel3] quit

  1. 配置NQA测试组与Track项联动，用于探测链路状态。

# 配置NQA测试组（管理员为test1，操作标签为1），具体配置步骤如下。

[DeviceA] nqa entry admin test1

[DeviceA-nqa-admin-test1] type icmp-echo

[DeviceA-nqa-admin-test1-icmp-echo] destination ip 3.3.3.3

[DeviceA-nqa-admin-test1-icmp-echo] frequency 3000

[DeviceA-nqa-admin-test1-icmp-echo] history-record enable

[DeviceA-nqa-admin-test1-icmp-echo] next-hop ip 1.1.1.2

[DeviceA-nqa-admin-test1-icmp-echo] probe count 5

[DeviceA-nqa-admin-test1-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceA-nqa-admin-test1-icmp-echo] quit

[DeviceA] nqa schedule admin test1 start-time now lifetime forever

# 配置Track项110，关联NQA测试组（管理员为test1，操作标签为1）的联动项1，配置步骤如下。

[DeviceA] track 110 nqa entry admin test1 reaction 1

[DeviceA-track-110] quit

# 配置NQA测试组（管理员为test2，操作标签为1），具体配置步骤如下。

[DeviceA] nqa entry admin test2

[DeviceA-nqa-admin-test2] type icmp-echo

[DeviceA-nqa-admin-test2-icmp-echo] destination ip 3.3.3.3

[DeviceA-nqa-admin-test2-icmp-echo] frequency 3000

[DeviceA-nqa-admin-test2-icmp-echo] history-record enable

[DeviceA-nqa-admin-test2-icmp-echo] probe count 5

[DeviceA-nqa-admin-test2-icmp-echo] next-hop ip 2.2.2.3

[DeviceA-nqa-admin-test2-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceA-nqa-admin-test2-icmp-echo] quit

[DeviceA] nqa schedule admin test2 start-time now lifetime forever

# 配置Track项120，关联NQA测试组（管理员为test2，操作标签为1）的联动项1，配置步骤如下。

[DeviceA] track 120 nqa entry admin test2 reaction 1

[DeviceA-track-120] quit

# 配置NQA测试组（管理员为test3，操作标签为1），具体配置步骤如下。

[DeviceA] nqa entry admin test3

[DeviceA-nqa-admin-test3] type icmp-echo

[DeviceA-nqa-admin-test3-icmp-echo] destination ip 4.4.4.4

[DeviceA-nqa-admin-test3-icmp-echo] frequency 3000

[DeviceA-nqa-admin-test3-icmp-echo] history-record enable

[DeviceA-nqa-admin-test3-icmp-echo] probe count 5

[DeviceA-nqa-admin-test3-icmp-echo] next-hop ip 1.1.1.2

[DeviceA-nqa-admin-test3-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceA-nqa-admin-test3-icmp-echo] quit

[DeviceA] nqa schedule admin test3 start-time now lifetime forever

# 配置Track项130，关联NQA测试组（管理员为test3，操作标签为1）的联动项1，配置步骤如下。

[DeviceA] track 130 nqa entry admin test3 reaction 1

[DeviceA-track-130] quit

# 配置NQA测试组（管理员为test4，操作标签为1），具体配置步骤如下。

[DeviceA] nqa entry admin test4

[DeviceA-nqa-admin-test4] type icmp-echo

[DeviceA-nqa-admin-test4-icmp-echo] destination ip 4.4.4.4

[DeviceA-nqa-admin-test4-icmp-echo] frequency 3000

[DeviceA-nqa-admin-test4-icmp-echo] history-record enable

[DeviceA-nqa-admin-test4-icmp-echo] probe count 5

[DeviceA-nqa-admin-test4-icmp-echo] next-hop ip 2.2.2.3

[DeviceA-nqa-admin-test4-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceA-nqa-admin-test4-icmp-echo] quit

[DeviceA] nqa schedule admin test4 start-time now lifetime forever

# 配置Track项140，关联NQA测试组（管理员为test4，操作标签为1）的联动项1，配置步骤如下。

[DeviceA] track 140 nqa entry admin test4 reaction 1

[DeviceA-track-140] quit

  1. 配置路由

本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。

# 请根据组网图中规划的信息，配置静态路由，本举例的下一跳IP地址仅为示例，实际使用中请以具体组网情况为准，具体配置步骤如下。

[DeviceA] ip route-static 192.168.12.0 24 tunnel 0 track 110 preference 100

[DeviceA] ip route-static 192.168.12.0 24 tunnel 1 track 120 preference 110

[DeviceA] ip route-static 192.168.13.0 24 tunnel 2 track 130 preference 100

[DeviceA] ip route-static 192.168.13.0 24 tunnel 3 track 140 preference 110

[DeviceA] ip route-static 3.3.3.3 24 1.1.1.2 track 110 preference 100

[DeviceA] ip route-static 3.3.3.3 24 2.2.2.3 track 120 preference 110

[DeviceA] ip route-static 4.4.4.4 24 1.1.1.2 track 130 preference 100

[DeviceA] ip route-static 4.4.4.4 24 2.2.2.3 track 140 preference 110

配置Device B

  1. 配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<DeviceB> system-view

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] ip address 3.3.3.3 255.255.255.0

[DeviceB-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

  1. 创建IPsec隧道接口

# 创建IPsec隧道接口Tunnel0，具体配置步骤如下。

[DeviceB] interface tunnel 0 mode ipsec

[DeviceB-Tunnel0] ip address 50.0.0.1 255.255.255.0

[DeviceB-Tunnel0] source 3.3.3.3

[DeviceB-Tunnel0] destination 1.1.1.1

[DeviceB-Tunnel0] quit

# 创建IPsec隧道接口Tunnel1，具体配置步骤如下。

[DeviceB] interface tunnel 1 mode ipsec

[DeviceB-Tunnel1] ip address 60.0.0.1 255.255.255.0

[DeviceB-Tunnel1] source 3.3.3.3

[DeviceB-Tunnel1] destination 2.2.2.2

[DeviceB-Tunnel1] quit

  1. 配置接口加入安全域。

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[DeviceB] security-zone name trust

[DeviceB-security-zone-Trust] import interface gigabitethernet 1/0/2

[DeviceB-security-zone-Trust] quit

[DeviceB] security-zone name untrust

[DeviceB-security-zone-Untrust] import interface gigabitethernet 1/0/1

[DeviceB-security-zone-Untrust] import interface tunnel 0

[DeviceB-security-zone-Untrust] import interface tunnel 1

[DeviceB-security-zone-Untrust] quit

  1. 配置安全策略

  1. 配置安全策略放行Untrust与Local安全域之间的流量，用于设备之间可以建立IPsec隧道。

# 配置名称为ipseclocalout的安全策规则，使Device B可以向Device A发送IPsec隧道协商报文，具体配置步骤如下。

[DeviceB] security-policy ip

[DeviceB-security-policy-ip] rule name ipseclocalout

[DeviceB-security-policy-ip-1-ipseclocalout] source-zone local

[DeviceB-security-policy-ip-1-ipseclocalout] destination-zone untrust

[DeviceB-security-policy-ip-1-ipseclocalout] source-ip-host 3.3.3.3

[DeviceB-security-policy-ip-1-ipseclocalout] destination-ip-host 1.1.1.1

[DeviceB-security-policy-ip-1-ipseclocalout] destination-ip-host 2.2.2.2

[DeviceB-security-policy-ip-1-ipseclocalout] action pass

[DeviceB-security-policy-ip-1-ipseclocalout] quit

# 配置名称为ipseclocalin的安全策略规则，使Device B可以接收和处理来自Device A的IPsec隧道协商报文，具体配置步骤如下。

[DeviceB-security-policy-ip] rule name ipseclocalin

[DeviceB-security-policy-ip-2-ipseclocalin] source-zone untrust

[DeviceB-security-policy-ip-2-ipseclocalin] destination-zone local

[DeviceB-security-policy-ip-2-ipseclocalin] source-ip-host 1.1.1.1

[DeviceB-security-policy-ip-2-ipseclocalin] source-ip-host 2.2.2.2

[DeviceB-security-policy-ip-2-ipseclocalin] destination-ip-host 3.3.3.3

[DeviceB-security-policy-ip-2-ipseclocalin] action pass

[DeviceB-security-policy-ip-2-ipseclocalin] quit

  1. 配置安全策略放行Host B与Host A之间的流量

# 配置名称为trust-untrust的安全策略规则，使Host B访问Host A的报文可通，具体配置步骤如下。

[DeviceB-security-policy-ip] rule name trust-untrust

[DeviceB-security-policy-ip-3-trust-untrust] source-zone trust

[DeviceB-security-policy-ip-3-trust-untrust] destination-zone untrust

[DeviceB-security-policy-ip-3-trust-untrust] source-ip-subnet 192.168.12.0 24

[DeviceB-security-policy-ip-3-trust-untrust] destination-ip-subnet 192.168.11.0 24

[DeviceB-security-policy-ip-3-trust-untrust] action pass

[DeviceB-security-policy-ip-3-trust-untrust] quit

# 配置名称为untrust-trust的安全策略规则，使Host A访问Host B的报文可通，具体配置步骤如下。

[DeviceB-security-policy-ip] rule name untrust-trust

[DeviceB-security-policy-ip-4-untrust-trust] source-zone untrust

[DeviceB-security-policy-ip-4-untrust-trust] destination-zone trust

[DeviceB-security-policy-ip-4-untrust-trust] source-ip-subnet 192.168.11.0 24

[DeviceB-security-policy-ip-4-untrust-trust] destination-ip-subnet 192.168.12.0 24

[DeviceB-security-policy-ip-4-untrust-trust] action pass

[DeviceB-security-policy-ip-4-untrust-trust] quit

[DeviceB-security-policy-ip] quit

  1. 配置IPsec安全框架，建立IPsec隧道，保护需要防护的数据流

# 配置IPsec安全框架t0，建立IPsec隧道，具体配置步骤如下。

[DeviceB] ike keychain t0

[DeviceB-ike-keychain-t0] pre-shared-key address 1.1.1.1 255.255.255.0 key simple 123456TESTplat&!

[DeviceB-ike-keychain-t0] quit

[DeviceB] ike profile t0

[DeviceB-ike-profile-t0] keychain t0

[DeviceB-ike-profile-t0] match local address Tunnel0

[DeviceB-ike-profile-t0] match remote identity address 1.1.1.1 24

[DeviceB-ike-profile-t0] exchange-mode aggressive

[DeviceB-ike-profile-t0] dpd interval 30 periodic

[DeviceB-ike-profile-t0] quit

[DeviceB] ipsec transform-set t0

[DeviceB-ipsec-transform-set-t0] esp encryption-algorithm aes-cbc-128

[DeviceB-ipsec-transform-set-t0] esp authentication-algorithm sha1

[DeviceB-ipsec-transform-set-t0] quit

[DeviceB] ipsec profile t0 isakmp

[DeviceB-ipsec-profile-isakmp-t0] transform-set t0

[DeviceB-ipsec-profile-isakmp-t0] ike-profile t0

[DeviceB-ipsec-profile-isakmp-t0] quit

# 配置IPsec安全框架t1，建立IPsec隧道，具体配置步骤如下。

[DeviceB] ike keychain t1

[DeviceB-ike-keychain-t1] pre-shared-key address 2.2.2.2 255.255.255.0 key simple 123456TESTplat&!

[DeviceB-ike-keychain-t1] quit

[DeviceB] ike profile t1

[DeviceB-ike-profile-t1] keychain t1

[DeviceB-ike-profile-t1] match local address Tunnel1

[DeviceB-ike-profile-t1] match remote identity address 2.2.2.2 24

[DeviceB-ike-profile-t1] exchange-mode aggressive

[DeviceB-ike-profile-t1] dpd interval 30 periodic

[DeviceB-ike-profile-t1] quit

[DeviceB] ipsec transform-set t1

[DeviceB-ipsec-transform-set-t1] esp encryption-algorithm aes-cbc-128

[DeviceB-ipsec-transform-set-t1] esp authentication-algorithm sha1

[DeviceB-ipsec-transform-set-t1] quit

[DeviceB] ipsec profile t1 isakmp

[DeviceB-ipsec-profile-isakmp-t1] transform-set t1

[DeviceB-ipsec-profile-isakmp-t1] ike-profile t1

[DeviceB-ipsec-profile-isakmp-t1] quit

  1. 配置IPsec隧道接口，用于对需要保护的流量进行IPsec封装。

# 在IPsec隧道接口Tunnel0中引用IPsec安全框架t0，建立IPsec隧道。

[DeviceB] interface tunnel 0

[DeviceB-Tunnel0] tunnel protection ipsec profile t0

[DeviceB-Tunnel0] quit

# 在IPsec隧道接口Tunnel1中引用IPsec安全框架t1，建立IPsec隧道。

[DeviceB] interface tunnel 1

[DeviceB-Tunnel1] tunnel protection ipsec profile t1

[DeviceB-Tunnel1] quit

  1. 配置NQA测试组与Track项联动，用于探测链路状态。

# 配置NQA测试组（管理员为test1，操作标签为1），具体配置步骤如下。

[DeviceB] nqa entry admin test1

[DeviceB-nqa-admin-test1] type icmp-echo

[DeviceB-nqa-admin-test1-icmp-echo] destination ip 1.1.1.1

[DeviceB-nqa-admin-test1-icmp-echo] frequency 3000

[DeviceB-nqa-admin-test1-icmp-echo] history-record enable

[DeviceB-nqa-admin-test1-icmp-echo] probe count 5

[DeviceB-nqa-admin-test1-icmp-echo] next-hop ip 3.3.3.4

[DeviceB-nqa-admin-test1-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceB-nqa-admin-test1-icmp-echo] quit

[DeviceB] nqa schedule admin test1 start-time now lifetime forever

# 配置Track项110，关联NQA测试组（管理员为test1，操作标签为1）的联动项1，配置步骤如下。

[DeviceB] track 110 nqa entry admin test1 reaction 1

[DeviceB-track-110] quit

# 配置NQA测试组（管理员为test2，操作标签为1），具体配置步骤如下。

[DeviceB] nqa entry admin test2

[DeviceB-nqa-admin-test2] type icmp-echo

[DeviceB-nqa-admin-test2-icmp-echo] destination ip 2.2.2.2

[DeviceB-nqa-admin-test2-icmp-echo] frequency 3000

[DeviceB-nqa-admin-test2-icmp-echo] history-record enable

[DeviceB-nqa-admin-test2-icmp-echo] probe count 5

[DeviceB-nqa-admin-test2-icmp-echo] next-hop ip 3.3.3.4

[DeviceB-nqa-admin-test2-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceB-nqa-admin-test2-icmp-echo] quit

[DeviceB] nqa schedule admin test2 start-time now lifetime forever

# 配置Track项120，关联NQA测试组（管理员为test2，操作标签为1）的联动项1，配置步骤如下。

[DeviceB] track 120 nqa entry admin test2 reaction 1

[DeviceB-track-120] quit

  1. 配置路由

本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。

# 请根据组网图中规划的信息，配置静态路由，本举例的下一跳IP地址仅为示例，实际使用中请以具体组网情况为准，具体配置步骤如下。

[DeviceB] ip route-static 192.168.11.0 24 tunnel 0 track 110 preference 100

[DeviceB] ip route-static 192.168.11.0 24 tunnel 1 track 120 preference 110

[DeviceB] ip route-static 1.1.1.1 24 3.3.3.4

[DeviceB] ip route-static 2.2.2.2 24 3.3.3.4

配置Device C

  1. 配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<DeviceC> system-view

[DeviceC] interface gigabitethernet 1/0/1

[DeviceC-GigabitEthernet1/0/1] ip address 4.4.4.4 255.255.255.0

[DeviceC-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

  1. 创建IPsec隧道接口

# 创建IPsec隧道接口Tunnel0，具体配置步骤如下。

[DeviceC] interface tunnel 0 mode ipsec

[DeviceC-Tunnel0] ip address 70.0.0.1 255.255.255.0

[DeviceC-Tunnel0] source 4.4.4.4

[DeviceC-Tunnel0] destination 1.1.1.1

[DeviceC-Tunnel0] quit

# 创建IPsec隧道接口Tunnel1，具体配置步骤如下。

[DeviceC] interface tunnel 1 mode ipsec

[DeviceC-Tunnel1] ip address 80.0.0.1 255.255.255.0

[DeviceC-Tunnel1] source 4.4.4.4

[DeviceC-Tunnel1] destination 2.2.2.2

[DeviceC-Tunnel1] quit

  1. 配置接口加入安全域。

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[DeviceC] security-zone name trust

[DeviceC-security-zone-Trust] import interface gigabitethernet 1/0/2

[DeviceC-security-zone-Trust] quit

[DeviceC] security-zone name untrust

[DeviceC-security-zone-Untrust] import interface gigabitethernet 1/0/1

[DeviceC-security-zone-Untrust] import interface tunnel 0

[DeviceC-security-zone-Untrust] import interface tunnel 1

[DeviceC-security-zone-Untrust] quit

  1. 配置安全策略

  1. 配置安全策略放行Untrust与Local安全域之间的流量，用于设备之间可以建立IPsec隧道。

# 配置名称为ipseclocalout的安全策规则，使Device B可以向Device A发送IPsec隧道协商报文，具体配置步骤如下。

[DeviceC] security-policy ip

[DeviceC-security-policy-ip] rule name ipseclocalout

[DeviceC-security-policy-ip-1-ipseclocalout] source-zone local

[DeviceC-security-policy-ip-1-ipseclocalout] destination-zone untrust

[DeviceC-security-policy-ip-1-ipseclocalout] source-ip-host 4.4.4.4

[DeviceC-security-policy-ip-1-ipseclocalout] destination-ip-host 1.1.1.1

[DeviceC-security-policy-ip-1-ipseclocalout] destination-ip-host 2.2.2.2

[DeviceC-security-policy-ip-1-ipseclocalout] action pass

[DeviceC-security-policy-ip-1-ipseclocalout] quit

# 配置名称为ipseclocalin的安全策略规则，使Device B可以接收和处理来自Device A的IPsec隧道协商报文，具体配置步骤如下。

[DeviceC-security-policy-ip] rule name ipseclocalin

[DeviceC-security-policy-ip-2-ipseclocalin] source-zone untrust

[DeviceC-security-policy-ip-2-ipseclocalin] destination-zone local

[DeviceC-security-policy-ip-2-ipseclocalin] source-ip-host 1.1.1.1

[DeviceC-security-policy-ip-2-ipseclocalin] source-ip-host 2.2.2.2

[DeviceC-security-policy-ip-2-ipseclocalin] destination-ip-host 4.4.4.4

[DeviceC-security-policy-ip-2-ipseclocalin] action pass

[DeviceC-security-policy-ip-2-ipseclocalin] quit

  1. 配置安全策略放行Host B与Host A之间的流量

# 配置名称为trust-untrust的安全策略规则，使Host B访问Host A的报文可通，具体配置步骤如下。

[DeviceC-security-policy-ip] rule name trust-untrust

[DeviceC-security-policy-ip-3-trust-untrust] source-zone trust

[DeviceC-security-policy-ip-3-trust-untrust] destination-zone untrust

[DeviceC-security-policy-ip-3-trust-untrust] source-ip-subnet 192.168.13.0 24

[DeviceC-security-policy-ip-3-trust-untrust] destination-ip-subnet 192.168.11.0 24

[DeviceC-security-policy-ip-3-trust-untrust] action pass

[DeviceC-security-policy-ip-3-trust-untrust] quit

# 配置名称为untrust-trust的安全策略规则，使Host A访问Host B的报文可通，具体配置步骤如下。

[DeviceC-security-policy-ip] rule name untrust-trust

[DeviceC-security-policy-ip-4-untrust-trust] source-zone untrust

[DeviceC-security-policy-ip-4-untrust-trust] destination-zone trust

[DeviceC-security-policy-ip-4-untrust-trust] source-ip-subnet 192.168.11.0 24

[DeviceC-security-policy-ip-4-untrust-trust] destination-ip-subnet 192.168.13.0 24

[DeviceC-security-policy-ip-4-untrust-trust] action pass

[DeviceC-security-policy-ip-4-untrust-trust] quit

[DeviceC-security-policy-ip] quit

  1. 配置IPsec安全框架，建立IPsec隧道，保护需要防护的数据流

# 配置IPsec安全框架t0，建立IPsec隧道，具体配置步骤如下。

[DeviceC] ike keychain t0

[DeviceC-ike-keychain-t0] pre-shared-key address 1.1.1.1 255.255.255.0 key simple 123456TESTplat&!

[DeviceC-ike-keychain-t0] quit

[DeviceC] ike profile t0

[DeviceC-ike-profile-t0] keychain t0

[DeviceC-ike-profile-t0] match local address Tunnel0

[DeviceC-ike-profile-t0] match remote identity address 1.1.1.1 24

[DeviceC-ike-profile-t0] exchange-mode aggressive

[DeviceC-ike-profile-t0] dpd interval 30 periodic

[DeviceC-ike-profile-t0] quit

[DeviceC] ipsec transform-set t0

[DeviceC-ipsec-transform-set-t0] esp encryption-algorithm aes-cbc-128

[DeviceC-ipsec-transform-set-t0] esp authentication-algorithm sha1

[DeviceC-ipsec-transform-set-t0] quit

[DeviceC] ipsec profile t0 isakmp

[DeviceC-ipsec-profile-isakmp-t0] transform-set t0

[DeviceC-ipsec-profile-isakmp-t0] ike-profile t0

[DeviceC-ipsec-profile-isakmp-t0] quit

# 配置IPsec安全框架t1，建立IPsec隧道，具体配置步骤如下。

[DeviceC] ike keychain t1

[DeviceC-ike-keychain-t1] pre-shared-key address 2.2.2.2 255.255.255.0 key simple 123456TESTplat&!

[DeviceC-ike-keychain-t1] quit

[DeviceC] ike profile t1

[DeviceC-ike-profile-t1] keychain t1

[DeviceC-ike-profile-t1] match local address Tunnel1

[DeviceC-ike-profile-t1] match remote identity address 2.2.2.2 24

[DeviceC-ike-profile-t1] exchange-mode aggressive

[DeviceC-ike-profile-t1] dpd interval 30 periodic

[DeviceC-ike-profile-t1] quit

[DeviceC] ipsec transform-set t1

[DeviceC-ipsec-transform-set-t1] esp encryption-algorithm aes-cbc-128

[DeviceC-ipsec-transform-set-t1] esp authentication-algorithm sha1

[DeviceC-ipsec-transform-set-t1] quit

[DeviceC] ipsec profile t1 isakmp

[DeviceC-ipsec-profile-isakmp-t1] transform-set t1

[DeviceC-ipsec-profile-isakmp-t1] ike-profile t1

[DeviceC-ipsec-profile-isakmp-t1] quit

  1. 配置IPsec隧道接口，用于对需要保护的流量进行IPsec封装

# 在IPsec隧道接口Tunnel0中引用IPsec安全框架t0，建立IPsec隧道。

[DeviceC] interface tunnel 0

[DeviceC-Tunnel0] tunnel protection ipsec profile t0

[DeviceC-Tunnel0] quit

# 在IPsec隧道接口Tunnel1中引用IPsec安全框架t1，建立IPsec隧道。

[DeviceC] interface tunnel 1

[DeviceC-Tunnel1] tunnel protection ipsec profile t1

[DeviceC-Tunnel1] quit

  1. 配置NQA测试组与Track项联动，用于探测链路状态

# 配置NQA测试组（管理员为test1，操作标签为1），具体配置步骤如下。

[DeviceC] nqa entry admin test1

[DeviceC-nqa-admin-test1] type icmp-echo

[DeviceC-nqa-admin-test1-icmp-echo] destination ip 1.1.1.1

[DeviceC-nqa-admin-test1-icmp-echo] frequency 3000

[DeviceC-nqa-admin-test1-icmp-echo] history-record enable

[DeviceC-nqa-admin-test1-icmp-echo] probe count 5

[DeviceC-nqa-admin-test1-icmp-echo] next-hop ip 4.4.4.5

[DeviceC-nqa-admin-test1-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceC-nqa-admin-test1-icmp-echo] quit

[DeviceC] nqa schedule admin test1 start-time now lifetime forever

# 配置Track项110，关联NQA测试组（管理员为test1，操作标签为1）的联动项1，配置步骤如下。

[DeviceC] track 110 nqa entry admin test1 reaction 1

[DeviceC-track-110] quit

# 配置NQA测试组（管理员为test2，操作标签为1），具体配置步骤如下。

[DeviceC] nqa entry admin test2

[DeviceC-nqa-admin-test2] type icmp-echo

[DeviceC-nqa-admin-test2-icmp-echo] destination ip 2.2.2.2

[DeviceC-nqa-admin-test2-icmp-echo] frequency 3000

[DeviceC-nqa-admin-test2-icmp-echo] history-record enable

[DeviceC-nqa-admin-test2-icmp-echo] probe count 5

[DeviceC-nqa-admin-test2-icmp-echo] next-hop ip 4.4.4.5

[DeviceC-nqa-admin-test2-icmp-echo] reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

[DeviceC-nqa-admin-test2-icmp-echo] quit

[DeviceC] nqa schedule admin test2 start-time now lifetime forever

# 配置Track项120，关联NQA测试组（管理员为test2，操作标签为1）的联动项1，配置步骤如下。

[DeviceC] track 120 nqa entry admin test2 reaction 1

[DeviceC-track-120] quit

  1. 配置路由

本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。

# 请根据组网图中规划的信息，配置静态路由，本举例的下一跳IP地址仅为示例，实际使用中请以具体组网情况为准，具体配置步骤如下。

[DeviceC] ip route-static 192.168.11.0 24 tunnel 0 track 110 preference 100

[DeviceC] ip route-static 192.168.11.0 24 tunnel 1 track 120 preference 110

[DeviceC] ip route-static 1.1.1.1 24 4.4.4.5

[DeviceC] ip route-static 2.2.2.2 24 4.4.4.5

验证配置

以上配置完成后，Device A会自动与Device B、Device C进行IKE协商。当IKE协商完成后，Device A、Device B和Device C上的IPsec 虚拟隧道接口都将up，即可对总部和分支的数据流进行安全保护。

# 通过display ip interface brief命令可查看Device A的接口状态如下。

<DeviceA> display ip interface brief

*down: administratively down

(s): spoofing  (l): loopback

Interface           Physical Protocol IP address/Mask    VPN instance Description

GE1/0/1             up       up       1.1.1.1/24          --           --

GE1/0/2             up       up       2.2.2.2/24          --           --

GE1/0/3             up       up       192.168.11.1/24     --           --

Tun0                up       up       10.0.0.1/24         --           --

Tun1                up       up       20.0.0.1/24         --           --

Tun2                up       up       30.0.0.1/24         --           --

Tun3                up       up       40.0.0.1/24         --           --

# 通过display ip routing-table命令可查看Device A的路由状态如下。

<DeviceA> display ip routing-table



Destinations : 14        Routes : 14



Destination/Mask   Proto   Pre Cost        NextHop         Interface

1.1.1.0/24         Direct  0   0           1.1.1.1         GE1/0/1

1.1.1.255/32       Direct  0   0           1.1.1.1         GE1/0/1

2.2.2.0/24         Direct  0   0           2.2.2.2         GE1/0/2

2.2.2.255/32       Direct  0   0           2.2.2.2         GE1/0/2

3.3.3.0/24         Static  100 0           1.1.1.2         GE1/0/1

4.4.4.0/24         Static  100 0           1.1.1.2         GE1/0/1

10.0.0.0/24        Direct  0   0           10.0.0.1        Tun0

10.0.0.255/32      Direct  0   0           10.0.0.1        Tun0

20.0.0.0/24        Direct  0   0           20.0.0.1        Tun1

20.0.0.255/32      Direct  0   0           20.0.0.1        Tun1

192.168.11.0/24    Direct  0   0           192.168.11.1    GE1/0/3

192.168.11.255/32  Direct  0   0           192.168.11.1    GE1/0/3

192.168.12.0/24    Static  100 0           0.0.0.0         Tun0

192.168.13.0/24    Static  100 0           0.0.0.0         Tun2

# Host A可以Ping通Host B，此时IPsec流量在Tunnel0所在链路传输。

C:\Users\hosta> ping 192.168.12.2



正在 Ping 192.168.12.2 具有 32 字节的数据:

来自 192.168.12.2 的回复: 字节=32 时间=1ms TTL=254

来自 192.168.12.2 的回复: 字节=32 时间<1ms TTL=254

来自 192.168.12.2 的回复: 字节=32 时间<1ms TTL=254

来自 192.168.12.2 的回复: 字节=32 时间<1ms TTL=254



192.168.12.2 的 Ping 统计信息:

    数据包: 已发送 = 4，已接收 = 4，丢失 = 0 (0% 丢失)，

往返行程的估计时间(以毫秒为单位):

    最短 = 0ms，最长 = 1ms，平均 = 0ms

# 当Device A的GigabitEthernet1/0/1接口所在链路发生故障时，Host A仍然可以Ping通Host B，此时IPsec流量在Tunnel1所在链路传输。

C:\Users\hosta> ping 192.168.12.2



正在 Ping 192.168.12.2 具有 32 字节的数据:

来自 192.168.12.2 的回复: 字节=32 时间=1ms TTL=254

来自 192.168.12.2 的回复: 字节=32 时间<1ms TTL=254

来自 192.168.12.2 的回复: 字节=32 时间<1ms TTL=254

来自 192.168.12.2 的回复: 字节=32 时间<1ms TTL=254



192.168.12.2 的 Ping 统计信息:

    数据包: 已发送 = 4，已接收 = 4，丢失 = 0 (0% 丢失)，

往返行程的估计时间(以毫秒为单位):

    最短 = 0ms，最长 = 1ms，平均 = 0ms

# 通过display ip interface brief命令可查看Device A的接口状态如下。

<DeviceA> display ip interface brief

*down: administratively down

(s): spoofing  (l): loopback

Interface           Physical Protocol IP address/Mask    VPN instance Description

GE1/0/1             down     down     1.1.1.1/24          --           --

GE1/0/2             up       up       2.2.2.2/24          --           --

GE1/0/3             up       up       192.168.11.1/24     --           --

Tun0                down     down     10.0.0.1/24         --           --

Tun1                up       up       20.0.0.1/24         --           --

Tun2                down     down     30.0.0.1/24         --           --

Tun3                up       up       40.0.0.1/24         --           --

# 通过display ip routing-table命令可查看Device A的路由状态如下。

<DeviceA> display ip routing-table



Destinations : 10        Routes : 10



Destination/Mask   Proto   Pre Cost        NextHop         Interface

2.2.2.0/24         Direct  0   0           2.2.2.2         GE1/0/2

2.2.2.255/32       Direct  0   0           2.2.2.2         GE1/0/2

3.3.3.0/24         Static  110 0           2.2.2.3         GE1/0/2

4.4.4.0/24         Static  110 0           2.2.2.3         GE1/0/2

20.0.0.0/24        Direct  0   0           20.0.0.1        Tun1

20.0.0.255/32      Direct  0   0           20.0.0.1        Tun1

192.168.11.0/24    Direct  0   0           192.168.11.1    GE1/0/3

192.168.11.255/32  Direct  0   0           192.168.11.1    GE1/0/3

192.168.12.0/24    Static  110 0           0.0.0.0         Tun1

192.168.13.0/24    Static  110 0           0.0.0.0         Tun3

# 当Device A的GigabitEthernet1/0/1接口所在链路故障恢复时，IPsec流量将切换到Tunnel0所在链路传输。、

配置文件

Device A

#

track 110 nqa entry admin test1 reaction 1

#

track 120 nqa entry admin test2 reaction 1

#

track 130 nqa entry admin test3 reaction 1

#

track 140 nqa entry admin test4 reaction 1

#

nqa entry admin test1

 type icmp-echo

  destination ip 3.3.3.3

  frequency 3000

  history-record enable

  next-hop ip 1.1.1.2

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

nqa entry admin test2

 type icmp-echo

  destination ip 3.3.3.3

  frequency 3000

  history-record enable

  next-hop ip 2.2.2.3

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

nqa entry admin test3

 type icmp-echo

  destination ip 4.4.4.4

  frequency 3000

  history-record enable

  next-hop ip 1.1.1.2

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

nqa entry admin test4

 type icmp-echo

  destination ip 4.4.4.4

  frequency 3000

  history-record enable

  next-hop ip 2.2.2.3

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

 nqa schedule admin test1 start-time now lifetime forever

 nqa schedule admin test2 start-time now lifetime forever

 nqa schedule admin test3 start-time now lifetime forever

 nqa schedule admin test4 start-time now lifetime forever

#

interface GigabitEthernet1/0/1

 ip address 1.1.1.1 255.255.255.0

#

interface GigabitEthernet1/0/2

 ip address 2.2.2.2 255.255.255.0

#

interface GigabitEthernet1/0/3

 ip address 192.168.11.1 255.255.255.0

#

interface Tunnel0 mode ipsec

 ip address 10.0.0.1 255.255.255.0

 source 1.1.1.1

 destination 3.3.3.3

 tunnel protection ipsec profile t0

#

interface Tunnel1 mode ipsec

 ip address 20.0.0.1 255.255.255.0

 source 2.2.2.2

 destination 3.3.3.3

 tunnel protection ipsec profile t1

#

interface Tunnel2 mode ipsec

 ip address 30.0.0.1 255.255.255.0

 source 1.1.1.1

 destination 4.4.4.4

 tunnel protection ipsec profile t2

#

interface Tunnel3 mode ipsec

 ip address 40.0.0.1 255.255.255.0

 source 2.2.2.2

 destination 4.4.4.4

 tunnel protection ipsec profile t3

#

security-zone name Trust

 import interface GigabitEthernet1/0/3

#

security-zone name Untrust

 import interface GigabitEthernet1/0/1

 import interface GigabitEthernet1/0/2

 import interface Tunnel0

 import interface Tunnel1

 import interface Tunnel2

 import interface Tunnel3

#

 ip route-static 3.3.3.0 24 1.1.1.2 track 110 preference 100

 ip route-static 3.3.3.0 24 2.2.2.3 track 120 preference 110

 ip route-static 4.4.4.0 24 1.1.1.2 track 130 preference 100

 ip route-static 4.4.4.0 24 2.2.2.3 track 140 preference 110

 ip route-static 192.168.12.0 24 Tunnel0 track 110 preference 100

 ip route-static 192.168.12.0 24 Tunnel1 track 120 preference 110

 ip route-static 192.168.13.0 24 Tunnel2 track 130 preference 100

 ip route-static 192.168.13.0 24 Tunnel3 track 140 preference 110

#

ipsec transform-set t0

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec transform-set t1

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec transform-set t2

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec transform-set t3

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec profile t0 isakmp

 transform-set t0

 ike-profile t0

#

ipsec profile t1 isakmp

 transform-set t1

 ike-profile t1

#

ipsec profile t2 isakmp

 transform-set t2

 ike-profile t2

#

ipsec profile t3 isakmp

 transform-set t3

 ike-profile t3

#

ike profile t0

 keychain t0

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 3.3.3.3 255.255.255.0

 match local address Tunnel0

#

ike profile t1

 keychain t1

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 3.3.3.3 255.255.255.0

 match local address Tunnel1

#

ike profile t2

 keychain t2

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 4.4.4.4 255.255.255.0

 match local address Tunnel2

#

ike profile t3

 keychain t3

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 4.4.4.4 255.255.255.0

 match local address Tunnel3

#

ike keychain t0

 pre-shared-key address 3.3.3.3 255.255.255.0 key simple 123456TESTplat&!

#

ike keychain t1

 pre-shared-key address 3.3.3.3 255.255.255.0 key simple 123456TESTplat&!

#

ike keychain t2

 pre-shared-key address 4.4.4.4 255.255.255.0 key simple 123456TESTplat&!

#

ike keychain t3

 pre-shared-key address 4.4.4.4 255.255.255.0 key simple 123456TESTplat&!

#

security-policy ip

 rule 0 name ipseclocalout

  action pass

  source-zone local

  destination-zone untrust

  source-ip-host 1.1.1.1

  source-ip-host 2.2.2.2

  destination-ip-host 3.3.3.3

  destination-ip-host 4.4.4.4

 rule 1 name ipseclocalin

  action pass

  source-zone untrust

  destination-zone local

  source-ip-host 3.3.3.3

  source-ip-host 4.4.4.4

  destination-ip-host 1.1.1.1

  destination-ip-host 2.2.2.2

 rule 2 name trust-untrust

  action pass

  source-zone trust

  destination-zone untrust

  source-ip-subnet 192.168.11.0 255.255.255.0

  destination-ip-subnet 192.168.12.0 255.255.255.0

  destination-ip-subnet 192.168.13.0 255.255.255.0

 rule 3 name untrust-trust

  action pass

  source-zone untrust

  destination-zone trust

  source-ip-subnet 192.168.12.0 255.255.255.0

  source-ip-subnet 192.168.13.0 255.255.255.0

  destination-ip-subnet 192.168.11.0 255.255.255.0

#

Device B

#

track 110 nqa entry admin test1 reaction 1

#

track 120 nqa entry admin test2 reaction 1

#

nqa entry admin test1

 type icmp-echo

  destination ip 1.1.1.1

  frequency 3000

  history-record enable

  next-hop ip 3.3.3.4

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

nqa entry admin test2

 type icmp-echo

  destination ip 2.2.2.2

  frequency 3000

  history-record enable

  next-hop ip 3.3.3.4

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

 nqa schedule admin test1 start-time now lifetime forever

 nqa schedule admin test2 start-time now lifetime forever

#

interface GigabitEthernet1/0/1

 ip address 3.3.3.3 255.255.255.0

#

interface GigabitEthernet1/0/2

 ip address 192.168.12.1 255.255.255.0

#

interface Tunnel0 mode ipsec

 ip address 50.0.0.1 255.255.255.0

 source 3.3.3.3

 destination 1.1.1.1

 tunnel protection ipsec profile t0

#

interface Tunnel1 mode ipsec

 ip address 60.0.0.1 255.255.255.0

 source 3.3.3.3

 destination 2.2.2.2

 tunnel protection ipsec profile t1

#

security-zone name Trust

 import interface GigabitEthernet1/0/2

#

security-zone name Untrust

 import interface GigabitEthernet1/0/1

 import interface Tunnel0

 import interface Tunnel1

#

 ip route-static 1.1.1.0 24 3.3.3.4

 ip route-static 2.2.2.0 24 3.3.3.4

 ip route-static 192.168.11.0 24 Tunnel0 track 110 preference 100

 ip route-static 192.168.11.0 24 Tunnel1 track 120 preference 110

#

ipsec transform-set t0

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec transform-set t1

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec profile t0 isakmp

 transform-set t0

 ike-profile t0

#

ipsec profile t1 isakmp

 transform-set t1

 ike-profile t1

#

ike profile t0

 keychain t0

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 1.1.1.1 255.255.255.0

 match local address Tunnel0

#

ike profile t1

 keychain t1

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 2.2.2.2 255.255.255.0

 match local address Tunnel1

#

ike keychain t0

 pre-shared-key address 1.1.1.1 255.255.255.0 key simple 123456TESTplat&!

#

ike keychain t1

 pre-shared-key address 2.2.2.2 255.255.255.0 key simple 123456TESTplat&!

#

security-policy ip

 rule 0 name ipseclocalout

  action pass

  source-zone local

  destination-zone untrust

  source-ip-host 3.3.3.3

  destination-ip-host 1.1.1.1

  destination-ip-host 2.2.2.2

 rule 1 name ipseclocalin

  action pass

  source-zone untrust

  destination-zone local

  source-ip-host 1.1.1.1

  source-ip-host 2.2.2.2

  destination-ip-host 3.3.3.3

 rule 2 name trust-untrust

  action pass

  source-zone trust

  destination-zone untrust

  source-ip-subnet 192.168.12.0 255.255.255.0

  destination-ip-subnet 192.168.11.0 255.255.255.0

 rule 3 name untrust-trust

  action pass

  source-zone untrust

  destination-zone trust

  source-ip-subnet 192.168.11.0 255.255.255.0

  destination-ip-subnet 192.168.12.0 255.255.255.0

#

Device C

#

track 110 nqa entry admin test1 reaction 1

#

track 120 nqa entry admin test2 reaction 1

#

nqa entry admin test1

 type icmp-echo

  destination ip 1.1.1.1

  frequency 3000

  history-record enable

  next-hop ip 4.4.4.5

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

nqa entry admin test2

 type icmp-echo

  destination ip 2.2.2.2

  frequency 3000

  history-record enable

  next-hop ip 4.4.4.5

  probe count 5

  reaction 1 checked-element probe-fail threshold-type consecutive 3 action-type trigger-only

#

 nqa schedule admin test1 start-time now lifetime forever

 nqa schedule admin test2 start-time now lifetime forever

#

interface GigabitEthernet1/0/1

 ip address 4.4.4.4 255.255.255.0

#

interface GigabitEthernet1/0/2

 ip address 192.168.13.1 255.255.255.0

#

interface Tunnel0 mode ipsec

 ip address 70.0.0.1 255.255.255.0

 source 4.4.4.4

 destination 1.1.1.1

 tunnel protection ipsec profile t0

#

interface Tunnel1 mode ipsec

 ip address 80.0.0.1 255.255.255.0

 source 4.4.4.4

 destination 2.2.2.2

 tunnel protection ipsec profile t1

#

security-zone name Trust

 import interface GigabitEthernet1/0/2

#

security-zone name Untrust

 import interface GigabitEthernet1/0/1

 import interface Tunnel0

 import interface Tunnel1

#

 ip route-static 1.1.1.0 24 4.4.4.5

 ip route-static 2.2.2.0 24 4.4.4.5

 ip route-static 192.168.11.0 24 Tunnel0 track 110 preference 100

 ip route-static 192.168.11.0 24 Tunnel1 track 120 preference 110

#

ipsec transform-set t0

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec transform-set t1

 encapsulation-mode tunnel

 protocol esp

 esp encryption-algorithm aes-cbc-128

 esp authentication-algorithm sha1

#

ipsec profile t0 isakmp

 transform-set t0

 ike-profile t0

#

ipsec profile t1 isakmp

 transform-set t1

 ike-profile t1

#

ike profile t0

 keychain t0

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 1.1.1.1 255.255.255.0

 match local address Tunnel0

#

ike profile t1

 keychain t1

 dpd interval 30 periodic

 exchange-mode aggressive

 match remote identity address 2.2.2.2 255.255.255.0

 match local address Tunnel1

#

ike keychain t0

 pre-shared-key address 1.1.1.1 255.255.255.0 key simple 123456TESTplat&!

#

ike keychain t1

 pre-shared-key address 2.2.2.2 255.255.255.0 key simple 123456TESTplat&!

#

security-policy ip

 rule 0 name ipseclocalout

  action pass

  source-zone local

  destination-zone untrust

  source-ip-host 4.4.4.4

  destination-ip-host 1.1.1.1

  destination-ip-host 2.2.2.2

 rule 1 name ipseclocalin

  action pass

  source-zone untrust

  destination-zone local

  source-ip-host 1.1.1.1

  source-ip-host 2.2.2.2

  destination-ip-host 4.4.4.4

 rule 2 name trust-untrust

  action pass

  source-zone trust

  destination-zone untrust

  source-ip-subnet 192.168.13.0 255.255.255.0

  destination-ip-subnet 192.168.11.0 255.255.255.0

 rule 3 name untrust-trust

  action pass

  source-zone untrust

  destination-zone trust

  source-ip-subnet 192.168.11.0 255.255.255.0

  destination-ip-subnet 192.168.13.0 255.255.255.0

这个好复杂

小白的逆袭 发表时间：2025-01-07 更多>>

这个好复杂

小白的逆袭 发表时间：2025-01-07
0 个回答
按时间 按赞数

该问题暂时没有网友解答

编辑答案

你正在编辑答案

如果你要对问题或其他回答进行点评或询问，请使用评论功能。

✖

分享扩散:

➤

提出建议

✖

    +
网站相关
关于我们
服务条款
隐私政策
帮助中心
经验与权限
积分规则
联系我们
联系我们
建议反馈
常用链接
标杆的神器下载
关注我们
H3C官网
新华三服务公众号
安仔远程运维服务
新华三商城
内容许可
除特别说明外，用户内容均可采用知识共享署名-相同方式共享3.0中国大陆许可协议进行许可

Copyright©2025新华三集团保留一切权利 当前呈现版本 NO.1

本图标版权归新华三集团所有，仅限本社区使用，切勿用做商业目的，违者必究

浙ICP备09064986号-1   浙公网安备 33010802004416号

✖

亲~登录后才可以操作哦!

确定
✖

亲~检测到您登陆的账号未在http://hclhub.h3c.com进行注册

注册后可访问此模块

跳转hclhub
✖

你的邮箱还未认证，请认证邮箱或绑定手机后进行当前操作

✖

举报

×

侵犯我的权益 >
对根叔社区有害的内容 >
辱骂、歧视、挑衅等（不友善）

侵犯我的权益

×

泄露了我的隐私 >
侵犯了我企业的权益 >
抄袭了我的内容 >
诽谤我 >
辱骂、歧视、挑衅等（不友善）
骚扰我

泄露了我的隐私

×

您好，当您发现根叔知了上有泄漏您隐私的内容时，您可以向根叔知了进行举报。 请您把以下内容通过邮件发送到pub.zhiliao@h3c.com 邮箱，我们会尽快处理。
  • 1. 您认为哪些内容泄露了您的隐私？（请在邮件中列出您举报的内容、链接地址，并给出简短的说明）
  • 2. 您是谁？（身份证明材料，可以是身份证或护照等证件）

侵犯了我企业的权益

×

您好，当您发现根叔知了上有关于您企业的造谣与诽谤、商业侵权等内容时，您可以向根叔知了进行举报。 请您把以下内容通过邮件发送到 pub.zhiliao@h3c.com 邮箱，我们会在审核后尽快给您答复。
  • 1. 您举报的内容是什么？（请在邮件中列出您举报的内容和链接地址）
  • 2. 您是谁？（身份证明材料，可以是身份证或护照等证件）
  • 3. 是哪家企业？（营业执照，单位登记证明等证件）
  • 4. 您与该企业的关系是？（您是企业法人或被授权人，需提供企业委托授权书）
我们认为知名企业应该坦然接受公众讨论，对于答案中不准确的部分，我们欢迎您以正式或非正式身份在根叔知了上进行澄清。

抄袭了我的内容

×

原文链接或出处

诽谤我

×

您好，当您发现根叔知了上有诽谤您的内容时，您可以向根叔知了进行举报。 请您把以下内容通过邮件发送到pub.zhiliao@h3c.com 邮箱，我们会尽快处理。
  • 1. 您举报的内容以及侵犯了您什么权益？（请在邮件中列出您举报的内容、链接地址，并给出简短的说明）
  • 2. 您是谁？（身份证明材料，可以是身份证或护照等证件）
我们认为知名企业应该坦然接受公众讨论，对于答案中不准确的部分，我们欢迎您以正式或非正式身份在根叔知了上进行澄清。

对根叔社区有害的内容

×

垃圾广告信息
色情、暴力、血腥等违反法律法规的内容
政治敏感
不规范转载 >
辱骂、歧视、挑衅等（不友善）
骚扰我
诱导投票

不规范转载

×

举报说明
