1.已经试过MSR3620和VSR88,问题都一样

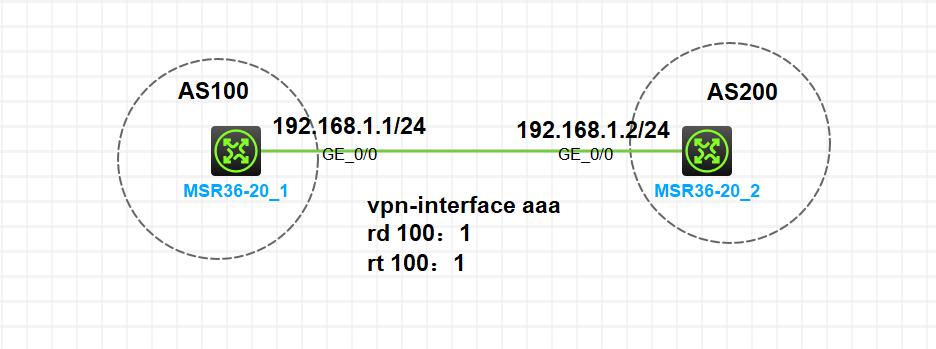

2.设备配置:
AR1基本配置:
ip vpn-instance aaa
route-distinguisher 100:1
vpn-target 100:1 import-extcommunity
vpn-target 100:1 export-extcommunity
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip binding vpn-instance aaa
ip address 192.168.1.1 255.255.255.0
#
===================================================================
AR2基本配置:
ip vpn-instance aaa
route-distinguisher 100:1
vpn-target 100:1 import-extcommunity
vpn-target 100:1 export-extcommunity
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip binding vpn-instance aaa
ip address 192.168.1.2 255.255.255.0
#
===========================================================
3.测试连通性
[AR2]ping -vpn-instance aaa 192.168.1.1
Ping 192.168.1.1 (192.168.1.1): 56 data bytes, press CTRL+C to break
56 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=0.878 ms
56 bytes from 192.168.1.1: icmp_seq=1 ttl=255 time=0.622 ms
56 bytes from 192.168.1.1: icmp_seq=2 ttl=255 time=0.449 ms
56 bytes from 192.168.1.1: icmp_seq=3 ttl=255 time=0.576 ms
56 bytes from 192.168.1.1: icmp_seq=4 ttl=255 time=0.963 ms
===========================================================
4.EBGP邻居建立配置:
AR1的BGP配置:
bgp 100
router-id 1.1.1.1
#
ip vpn-instance aaa
peer 192.168.1.2 as-number 200
#
address-family ipv4 unicast
peer 192.168.1.2 enable //报错
Peers don't exist.
#
AR2的BGP配置:
bgp 100
router-id 1.1.1.1
#
ip vpn-instance aaa
peer 192.168.1.1 as-number 100
#
address-family ipv4 unicast
peer 192.168.1.1 enable //报错
Peers don't exist.
#
========================================
3.咨询解决方法是换配置了还是模拟器问题无法解法
(0)
可以实现,命令的时候后面加?看下命令提示
(0)
peer 192.168.1.2 enable ?没有东西
peer 192.168.1.2 enable ?没有东西
