华为S5720，vlan三层互通，但vlan下的接口允许设置为其它vlan的IP段信息的设备通信

没有配置子接口

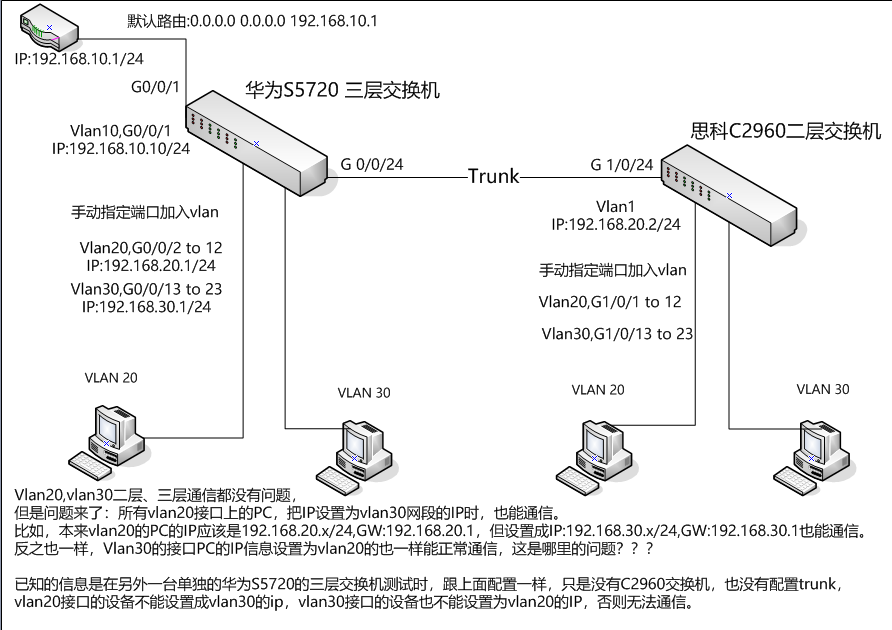

1,思科上的vlan1配置了一个IP，应该是方便通过网络连接到这台交换机进行维护，我也想不明白为啥要配个vlan20段的IP，可能就是这个配置引起的问题也说不好。 2,通信就是指pc能上网，能访问vlan20,vlwn30接口下连接的电脑和设备，比如打印机，服务器。 3，随便拿台电脑 ，配置成vlan30段的IP和网关，接到vlan20所属的交换机端口上，都能正常访问网络。 我是接手后，发现有这个问题，按原样画出的拓扑图.

1，说错了，我刚刚再检查了一下配置，是我抄错了，在C2960的vlan20上配置的IP，不是在vlan1上

华为S5720配置(以下内容中的加密密码太长，去掉了，其它未改动) !Software Version V200R019C10SPC500 # sysname Switch # undo info-center enable # vlan batch 10 20 30 40 # authentication-profile name default_authen_profile authentication-profile name dot1x_authen_profile authentication-profile name dot1xmac_authen_profile authentication-profile name mac_authen_profile authentication-profile name multi_authen_profile authentication-profile name portal_authen_profile # telnet server enable # clock timezone Beijing,Chongqing,Hongkon,Urumqi add 08:00:00 # diffserv domain default # radius-server template default # pki realm default certificate-check none # free-rule-template name default_free_rule # portal-access-profile name portal_access_profile # drop-profile default # aaa authentication-scheme default authentication-mode local authentication-scheme radius authentication-mode radius authorization-scheme default authorization-mode local accounting-scheme default accounting-mode none local-aaa-user password policy administrator password history record number 0 password expire 0 domain default authentication-scheme radius accounting-scheme default radius-server default domain default_admin authentication-scheme default accounting-scheme default local-user bbq local-user bbq privilege level 15 local-user bbq service-type all local-user admin local-user admin privilege level 15 local-user admin service-type all # ntp-service disable # interface Vlanif1 # interface Vlanif10 ip address 192.168.10.10 255.255.255.0 # interface Vlanif20 ip address 192.168.20.1 255.255.255.0 # interface Vlanif30 ip address 192.168.30.1 255.255.255.0 # interface Vlanif40 ip address 192.168.40.1 255.255.255.0 # interface MEth0/0/1 ip address 192.168.1.253 255.255.255.0 # interface GigabitEthernet0/0/1 port default vlan 10 # interface GigabitEthernet0/0/2 port default vlan 40 # interface GigabitEthernet0/0/3 port default vlan 40 # interface GigabitEthernet0/0/4 port default vlan 40 # interface GigabitEthernet0/0/5 port default vlan 20 # interface GigabitEthernet0/0/6 port default vlan 20 # interface GigabitEthernet0/0/7 port default vlan 20 # interface GigabitEthernet0/0/8 port default vlan 20 # interface GigabitEthernet0/0/9 port default vlan 20 # interface GigabitEthernet0/0/10 port default vlan 20 # interface GigabitEthernet0/0/11 port default vlan 20 # interface GigabitEthernet0/0/12 port default vlan 20 # interface GigabitEthernet0/0/13 port default vlan 20 # interface GigabitEthernet0/0/14 port default vlan 20 # interface GigabitEthernet0/0/15 port default vlan 20 # interface GigabitEthernet0/0/16 port default vlan 20 # interface GigabitEthernet0/0/17 port default vlan 20 # interface GigabitEthernet0/0/18 port default vlan 20 # interface GigabitEthernet0/0/19 port default vlan 20 # interface GigabitEthernet0/0/20 port default vlan 30 # interface GigabitEthernet0/0/21 port default vlan 30 # interface GigabitEthernet0/0/22 port default vlan 30 # interface GigabitEthernet0/0/23 port default vlan 30 # interface GigabitEthernet0/0/24 port link-type trunk port trunk allow-pass vlan 2 to 4094 # interface GigabitEthernet0/0/25 port default vlan 20 # interface GigabitEthernet0/0/26 port default vlan 20 # interface GigabitEthernet0/0/27 port default vlan 20 # interface GigabitEthernet0/0/28 port default vlan 20 # interface GigabitEthernet0/0/29 # interface GigabitEthernet0/0/30 # interface GigabitEthernet0/0/31 # interface GigabitEthernet0/0/32 # interface NULL0 # undo icmp name timestamp-request receive # ip route-static 0.0.0.0 0.0.0.0 192.168.10.1 # ssh server cipher aes256_ctr aes128_ctr ssh server hmac sha2_256 ssh client cipher aes256_ctr aes128_ctr ssh client hmac sha2_256 ssh server dh-exchange min-len 2048 # user-interface con 0 authentication-mode password set authentication password cipher user-interface vty 0 4 authentication-mode aaa user privilege level 15 protocol inbound telnet user-interface vty 16 20 # dot1x-access-profile name dot1x_access_profile # mac-access-profile name mac_access_profile # ops # return 思科C2960配置(中间去掉了一段证书的内容，其它未改动) ! version 12.2 no service pad service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption service sequence-numbers ! hostname Switch ! boot-start-marker boot-end-marker ! enable secret 5 ! username username ! ! no aaa new-model ! ! ! ! crypto pki trustpoint TP-self-signed-1973211136 enrollment selfsigned subject-name cn=IOS-Self-Signed-Certificate-1973211136 revocation-check none rsakeypair TP-self-signed-1973211136 ! ! crypto pki certificate chain TP-self-signed-1973211136 certificate self-signed 01 308202 C2BD . . . . 5892 7ED4CF quit spanning-tree mode pvst spanning-tree extend system-id ! ! ! ! vlan internal allocation policy ascending ! ip ftp username ftp ip ftp password ftp ! interface FastEthernet0 no ip address ! interface GigabitEthernet0/1 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/2 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/3 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/4 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/5 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/6 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/7 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/8 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/9 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/10 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/11 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/12 switchport access vlan 20 switchport mode access ! interface GigabitEthernet0/13 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/14 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/15 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/16 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/17 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/18 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/19 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/20 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/21 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/22 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/23 switchport access vlan 30 switchport mode access ! interface GigabitEthernet0/24 switchport mode trunk ! interface GigabitEthernet0/25 ! interface GigabitEthernet0/26 ! interface Vlan1 no ip address ! interface Vlan20 ip address 192.168.20.2 255.255.255.0 ! ip http server ip http secure-server ! line con 0 line vty 0 4 login local line vty 5 login local line vty 6 15 login ! end

没道理啊，dis int brief , dis mac address 结果，反馈一下，并标识是哪个口的IP地址可以随便换。
