防火墙拨号成功，外网无法ping通内网地址

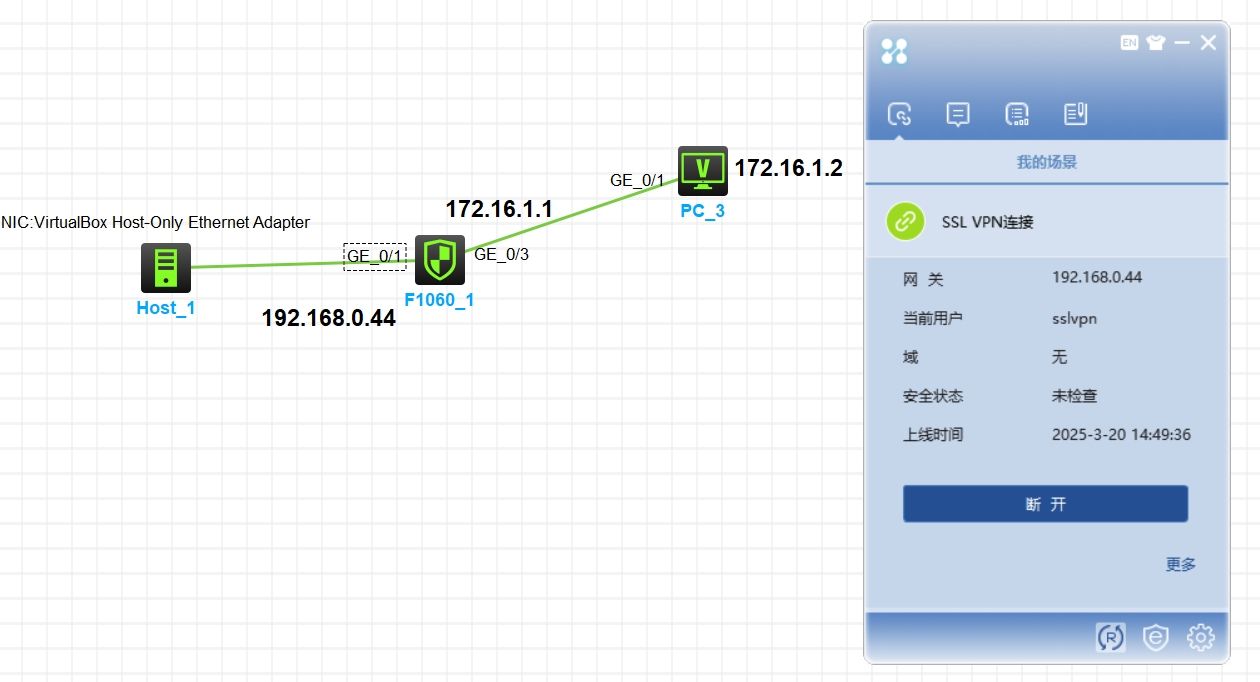

防火墙sslvpn拨号成功，外网无法ping通内网地址

防火墙sslvpn拨号成功，外网无法ping通内网地址
配置如下:
#
 version 7.1.064, Alpha 7164
#
 sysname H3C
#
context Admin id 1
#
 telnet server enable
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
interface NULL0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 192.168.0.44 255.255.255.0
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
#

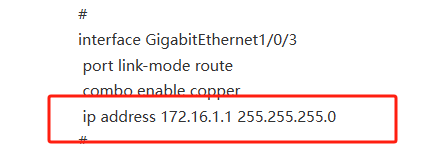

interface GigabitEthernet1/0/3
 port link-mode route
 combo enable copper
 ip address 172.16.1.1 255.255.255.0
#
interface GigabitEthernet1/0/4
 port link-mode route
 combo enable copper
#

interface SSLVPN-AC1
 ip address 10.10.10.1 255.255.255.0
#
security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet1/0/3
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet1/0/1
 import interface SSLVPN-AC1
#
security-zone name Management
#

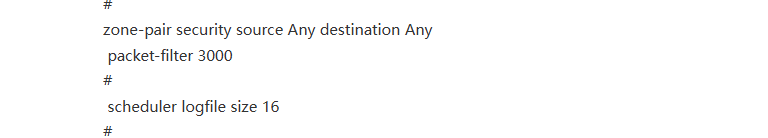

zone-pair security source Any destination Any
 packet-filter 3000
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-admin
#
line con 0
 authentication-mode scheme
 user-role network-admin
#
line vty 0 4
 authentication-mode scheme
 user-role network-admin
#
line vty 5 63
 user-role network-operator
#
 info-center loghost 127.0.0.1 port 3301 format default
 info-center source CFGLOG loghost level informational
#
acl advanced 3000
 rule 0 permit ip
#
domain system
#
 aaa session-limit ftp 16
 aaa session-limit telnet 16
 aaa session-limit ssh 16
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 rol
role name level-1
 description Predefined level-1 role
#

role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$WblAckcja5HMJHge$iLRdhZyeKwTN3DDS6s89wFN2BEUApVOKReZbJW2jD3pFF6Ti4Qv1TTQx7E/VLlJHuO93KCCyjaUZAWdEF3EWzw==
 service-type telnet terminal http https
 authorization-attribute user-role level-3
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#
local-user sslvpn class network
 password cipher $c$3$RKDInb vg7tjttGitZ/ytHTvJsNQcg3Uq7hM6w==
 service-type sslvpn
 authorization-attribute acl 3000
 authorization-attribute user-role network-operator
 authorization-attribute sslvpn-policy-group sslvpnziyuan
#
 ip http enable
 ip https enable
#
sslvpn ip address-pool sslvpnpool 10.10.10.1 10.10.10.254
#
sslvpn gateway sslvpngw
 ip address 192.168.0.44 port 2000
 service enable
#

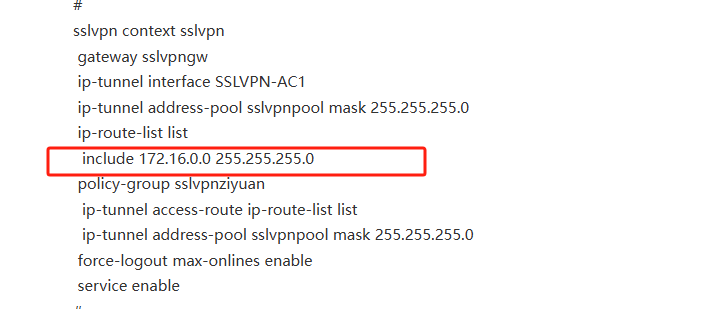

sslvpn context sslvpn
 gateway sslvpngw
 ip-tunnel interface SSLVPN-AC1
 ip-tunnel address-pool sslvpnpool mask 255.255.255.0
 ip-route-list list
  include 172.16.0.0 255.255.255.0
 policy-group sslvpnziyuan
  ip-tunnel access-route ip-route-list list
  ip-tunnel address-pool sslvpnpool mask 255.255.255.0
 force-logout max-onlines enable
 service enable
#
security-policy ip
 rule 6 name any
  action pass
  source-zone Local
  source-zone Trust
  source-zone DMZ
  source-zone Untrust
  source-zone Management
  destination-zone Local
  destination-zone Trust
  destination-zone DMZ
  destination-zone Untrust
  destination-zone Management
#
return
