大佬们，HCL模拟器做ipsec怎么起不来
- 0关注
- 0收藏，332浏览

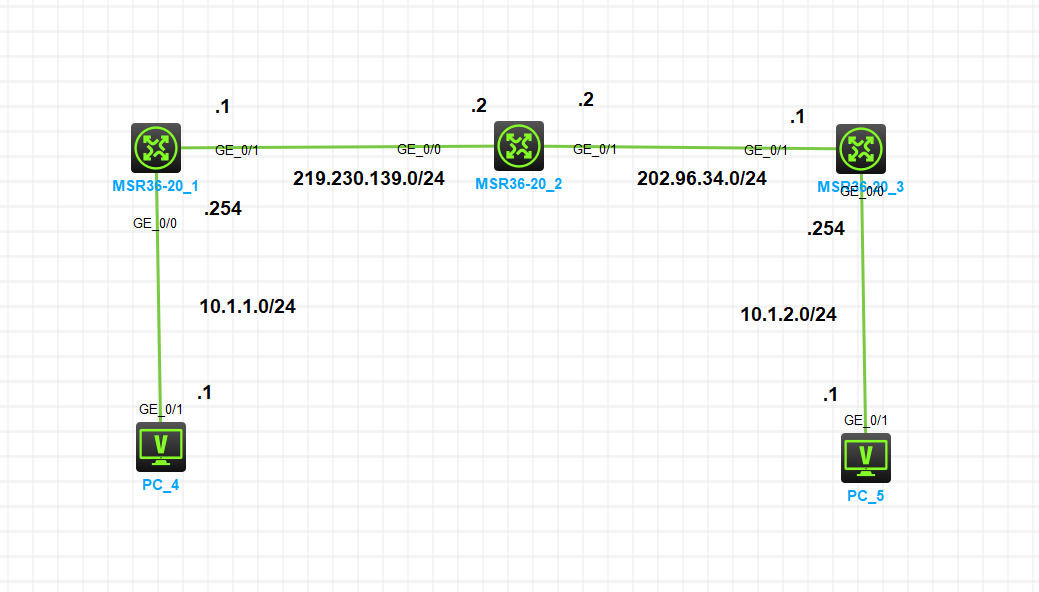

问题描述：
隧道建立不起来
[r1]dis cu
#
version 7.1.064, Release 0427P22
#
sysname r1
#
ospf 1 router-id 1.1.1.1
area 0.0.0.0
network 10.1.1.0 0.0.0.255
network 219.230.139.0 0.0.0.255
#
system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series
#
vlan 1
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 10.1.1.254 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
combo enable copper
ip address 219.230.139.1 255.255.255.0
ipsec apply policy policy1
#
interface GigabitEthernet0/2
port link-mode route
combo enable copper
ip address 192.168.1.1 255.255.255.0
#
interface GigabitEthernet5/0
port link-mode route
combo enable copper
#
interface GigabitEthernet5/1
port link-mode route
combo enable copper
#
interface GigabitEthernet6/0
port link-mode route
combo enable copper
#
interface GigabitEthernet6/1
port link-mode route
combo enable copper
#
scheduler logfile size 16
#
line class aux
user-role network-operator
#
line class console
user-role network-admin
#
line class tty
user-role network-operator
#
line class vty
user-role network-operator
#
line aux 0
user-role network-operator
#
line con 0
user-role network-admin
#
line vty 0 4
authentication-mode scheme
user-role network-admin
user-role network-operator
#
line vty 5 63
user-role network-operator
#
acl advanced 3000
rule 0 permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
local-user admin class manage
password hash $h$6$tsaeiKgqHDn4VUsY$SQBYXsnZkGhA+nN/9i63nIWM5g8EDuxc9raPfpPhFEPUzfjGCE3S2Rf9tHBjiVRtX3C5Uc6qERSVkTwdDriamg==
service-type telnet http https
authorization-attribute user-role network-admin
authorization-attribute user-role network-operator
#
ipsec transform-set tran1
esp encryption-algorithm 3des-cbc
esp authentication-algorithm sha1
#
ipsec policy policy1 10 isakmp
transform-set tran1
security acl 3000
remote-address 202.96.34.1
ike-profile profile1
#
ike profile profile1
keychain key1
local-identity address 219.230.139.1
match remote identity address 202.96.34.1 255.255.255.255
#
ike keychain key1
pre-shared-key address 202.96.34.1 255.255.255.255 key cipher $c$3$NCYShkzEwa6TcrMaN90caoJ5bB38lPqKVOGtCg==
#
return
dis cu
#
version 7.1.064, Release 0427P22
#
sysname r3
#
ospf 1 router-id 3.3.3.3
area 0.0.0.0
network 10.1.2.0 0.0.0.255
network 202.96.34.0 0.0.0.255
#
system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series
#
vlan 1
#
interface Serial1/0
#
interface Serial2/0
#
interface Serial3/0
#
interface Serial4/0
#
interface NULL0
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 10.1.2.254 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
combo enable copper
ip address 202.96.34.1 255.255.255.0
ipsec apply policy policy1
#
interface GigabitEthernet0/2
port link-mode route
combo enable copper
#
interface GigabitEthernet5/0
port link-mode route
combo enable copper
#
interface GigabitEthernet5/1
port link-mode route
combo enable copper
#
interface GigabitEthernet6/0
port link-mode route
combo enable copper
#
interface GigabitEthernet6/1
port link-mode route
combo enable copper
#
scheduler logfile size 16
#
line class aux
user-role network-operator
#
line class console
user-role network-admin
#
line class tty
user-role network-operator
#
line class vty
user-role network-operator
#
line aux 0
user-role network-operator
#
line con 0
user-role network-admin
#
line vty 0 63
user-role network-operator
#
acl advanced 3000
rule 0 permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255
#
domain system
#
domain default enable system
#
role name level-0
description Predefined level-0 role
#
role name level-1
description Predefined level-1 role
#
role name level-2
description Predefined level-2 role
#
role name level-3
description Predefined level-3 role
#
role name level-4
description Predefined level-4 role
#
role name level-5
description Predefined level-5 role
#
role name level-6
description Predefined level-6 role
#
role name level-7
description Predefined level-7 role
#
role name level-8
description Predefined level-8 role
#
role name level-9
description Predefined level-9 role
#
role name level-10
description Predefined level-10 role
#
role name level-11
description Predefined level-11 role
#
role name level-12
description Predefined level-12 role
#
role name level-13
description Predefined level-13 role
#
role name level-14
description Predefined level-14 role
#
user-group system
#
ipsec transform-set tran1
esp encryption-algorithm 3des-cbc
esp authentication-algorithm sha1
#
ipsec policy policy1 10 isakmp
transform-set tran1
security acl 3000
remote-address 219.230.139.1
ike-profile profile1
#
ike profile profile1
keychain key1
local-identity address 202.96.34.1
match remote identity address 219.230.139.1 255.255.255.255
#
ike keychain key1
pre-shared-key address 219.230.139.1 255.255.255.255 key cipher $c$3$5WsyLnNzosM+aY8oi6HyFvaR0id+qdS1nJY=
#
return
最佳答案
你两边的预共享密钥没统一啊，配置里全是密文谁能看出来啊。。。。。。
把ike keychain key1下的pre-shared-key删掉重新配一下就好了，比如都改成pre-shared-key address x.x.x.x key simple 123。
- 2025-07-04回答
