F5000M-IPSEC第二阶段协商不起来

IPSec VPN

3天前提问

0关注
0收藏，77浏览

zhiliao_Rui7UY

zhiliao_Rui7UY 零段

粉丝：0人关注：0人

问题描述：

F5000M-IPSEC第二阶段协商不起来

组网及组网描述：

【本端配置】

Advanced IPv4 ACL named IPsec_GXB_IPv4_1, 1 rule,

ACL's step is 5

rule 0 permit ip destination 10.255.224.0 0.0.0.255 (22958 times matched)

ipsec transform-set GXB_IPv4_1

esp encryption-algorithm aes-cbc-128

esp authentication-algorithm sha1

ipsec policy GXB 1 isakmp

transform-set GXB_IPv4_1

security acl name IPsec_GXB_IPv4_1

local-address 1.1.1.1

remote-address 2.2.2.2

ike-profile GXB_IPv4_1

ike profile GXB_IPv4_1

keychain GXB_IPv4_1

match remote identity address 2.2.2.2 255.255.255.255

match local address 1.1.1.1

proposal 1

ike proposal 1

encryption-algorithm aes-cbc-128

ike keychain GXB_IPv4_1

match local address 1.1.1.1

pre-shared-key address 2.2.2.2 255.255.255.255 key cipher $c$3$0vxn9Z/bx5tzMTOUlkUAUAsYijVx529ECSIyZr0=

ipsec policy GXB 1 isakmp

transform-set GXB_IPv4_1

security acl name IPsec_GXB_IPv4_1

local-address 1.1.1.1

remote-address 2.2.2.2

ike-profile GXB_IPv4_1

interface Route-Aggregation1

ipsec apply policy GXB

【报错信息】

Can't find block-flow node.

*Nov 30 10:25:30:304 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:25:30:304 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

*Nov 30 10:25:30:304 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Sent SA-Acquire message : SP ID = 0

*Nov 30 10:25:30:304 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Received negotiatiate SA message from IPsec kernel.

*Nov 30 10:25:30:304 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Got SA time-based soft lifetime settings when filling Sp data.

Configured soft lifetime buffer : 0 seconds.

Configured global soft lifetime buffer : 0 seconds.

*Nov 30 10:25:44:534 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:25:44:534 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:25:44:534 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

%Nov 30 10:25:44:983 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

*Nov 30 10:25:45:535 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:25:45:535 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:25:45:535 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

*Nov 30 10:25:46:528 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Failed to match profile: IKE profile was while IPsec used profile GXB_IPv4_1.

*Nov 30 10:25:46:529 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Failed to match profile: IKE profile was while IPsec used profile GXB_IPv4_1.

*Nov 30 10:25:47:539 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:25:47:539 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:25:47:539 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

%Nov 30 10:25:49:983 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

*Nov 30 10:25:51:551 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:25:51:551 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:25:51:551 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

%Nov 30 10:25:54:983 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

*Nov 30 10:25:55:791 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Sent delete SA message to all nodes, message type is 0x16.

*Nov 30 10:25:55:791 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

The SA doesn't exist in kernel.

*Nov 30 10:25:59:567 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Can't find block-flow node.

*Nov 30 10:25:59:567 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:25:59:567 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

*Nov 30 10:25:59:567 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Sent SA-Acquire message : SP ID = 0

*Nov 30 10:25:59:567 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Received negotiatiate SA message from IPsec kernel.

*Nov 30 10:25:59:567 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Got SA time-based soft lifetime settings when filling Sp data.

Configured soft lifetime buffer : 0 seconds.

Configured global soft lifetime buffer : 0 seconds

*Nov 30 10:26:11:782 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:26:11:782 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:26:11:782 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

*Nov 30 10:26:12:783 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:26:12:783 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:26:12:783 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

*Nov 30 10:26:14:787 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:26:14:787 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:26:14:787 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

*Nov 30 10:26:15:615 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:26:15:615 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:26:15:615 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

%Nov 30 10:26:16:065 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

*Nov 30 10:26:18:799 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:26:18:799 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:26:18:799 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

%Nov 30 10:26:21:065 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

%Nov 30 10:26:26:065 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

*Nov 30 10:26:26:814 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:26:26:814 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:26:26:814 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

*Nov 30 10:26:27:708 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Failed to match profile: IKE profile was while IPsec used profile GXB_IPv4_1.

*Nov 30 10:26:27:708 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Failed to match profile: IKE profile was while IPsec used profile GXB_IPv4_1.

%Nov 30 10:26:31:087 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

*Nov 30 10:26:34:432 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/EVENT: -COntext=1;

Found block-flow node.

*Nov 30 10:26:34:432 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/PACKET: -COntext=1;

Failed to find SA by SP, SP Index = 0, SP Convert-Seq = 65536.

*Nov 30 10:26:34:432 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IPSEC/7/ERROR: -COntext=1;

The reason of dropping packet is no available IPsec tunnel.

undo debugging all

All possible debugging has been turned off.

<ZJ-SX-QFC-FW-1.SOC.F5000-M>%Nov 30 10:26:37:066 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M ARP/6/DUPIFIP: -COntext=1;

3 个回答

按时间按赞数

zhiliao_tTJQhO

zhiliao_tTJQhO 一段

粉丝：0人关注：0人

要收集 debug ike all

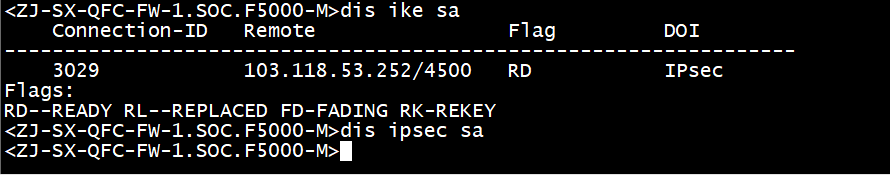

display ike sa
display ipsec sa

暂无评论

zhiliao_Rui7UY

zhiliao_Rui7UY 知了小白

粉丝：0人关注：0人

*Nov 30 12:14:28:777 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IKE/7/ERROR: -COntext=1; vrf = 0, local = 115.239.131.117, remote = 103.118.53.252/4500

Failed to get IPsec policy for phase 2 responder. Delete IPsec SA.
*Nov 30 12:14:28:777 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IKE/7/ERROR: -COntext=1; vrf = 0, local = 115.239.131.117, remote = 103.118.53.252/4500
Failed to negotiate IPsec SA.
*Nov 30 12:14:28:777 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IKE/7/EVENT: -COntext=1; Delete IPsec SA.
*Nov 30 12:14:28:777 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IKE/7/PACKET: -COntext=1; vrf = 0, local = 115.239.131.117, remote = 103.118.53.252/4500
Encrypt the packet.
*Nov 30 12:14:28:778 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IKE/7/PACKET: -COntext=1; vrf = 0, local = 115.239.131.117, remote = 103.118.53.252/4500
Construct notification packet: INVALID_ID_INFORMATION.
*Nov 30 12:14:28:778 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IKE/7/PACKET: -COntext=1; vrf = 0, local = 115.239.131.117, remote = 103.118.53.252/4500
Sending packet to 103.118.53.252 remote port 4500, local port 4500.
*Nov 30 12:14:28:778 2025 ZJ-SX-QFC-FW-1.SOC.F5000-M IKE/7/PACKET: -COntext=1; vrf = 0, local = 115.239.131.117, remote = 103.118.53.252/4500

I-COOKIE: edafee7401cedfdf
R-COOKIE: 63fd4e731f9f765f
next payload: HASH
version: ISAKMP Version 1.0
exchange mode: Info
flags: ENCRYPT
message ID: 8058f067
