华三模拟器ipv6组网模拟

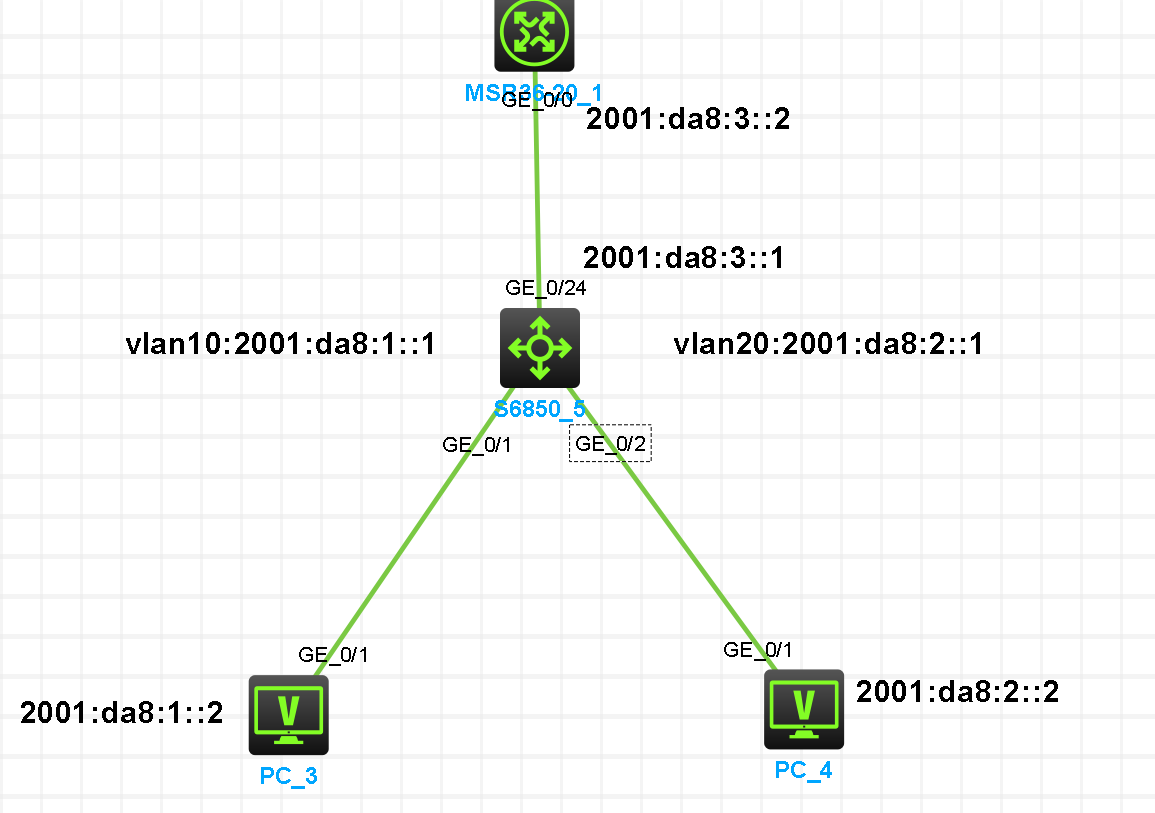

组网描述：路由器R1的g0/0口连接三层交换机sw1的g1/0/24口，三层交换机的g1/0/1和g1/0/2分别连接pc，pc1地址：2001:da8:1::2/64,pc2地址：2001:da8:2::2/64,分别属于vlan10和vlan20.

路由器和三层交换机配置如下：R1： version 7.1.064, Release 0427P22 # sysname R1

# system-working-mode standard xbar load-single password-recovery enable lpu-type f-series

# vlan 1

# interface Serial1/0

# interface Serial2/0

# interface Serial3/0

# interface Serial4/0

# interface NULL0

# interface GigabitEthernet0/0

port link-mode route

description ith

combo enable copper

ipv6 address 2001:DA8:3::2/64

undo ipv6 nd ra halt

# ipv6 route-static 2001:DA8:1:: 64 2001:DA8:3::1

ipv6 route-static 2001:DA8:2:: 64 2001:DA8:3::1

# acl ipv6 basic 2000

rule 0 permit

# domain system

# domain default enable system

# role name level-0 description Predefined level-0 role # role name level-1 description Predefined level-1 role # role name level-2 description Predefined level-2 role # role name level-3 description Predefined level-3 role # role name level-4 description Predefined level-4 role # role name level-5 description Predefined level-5 role # role name level-6 description Predefined level-6 role # role name level-7 description Predefined level-7 role # role name level-8 description Predefined level-8 role # role name level-9 description Predefined level-9 role # role name level-10 description Predefined level-10 role # role name level-11 description Predefined level-11 role # role name level-12 description Predefined level-12 role # role name level-13 description Predefined level-13 role # role name level-14 description Predefined level-14 role # user-group system # return

三层交换机sw1配置如下： version 7.1.070, Alpha 7170

# sysname sw1

# irf mac-address persistent timer irf auto-update enable undo irf link-delay irf member 1 priority 1

# lldp global enable

# system-working-mode standard xbar load-single password-recovery enable lpu-type f-series

# vlan 1

# vlan 10

# vlan 20

# stp global enable

# interface NULL0

# interface Vlan-interface10

ipv6 address 2001:DA8:1::1/64

undo ipv6 nd ra halt

# interface Vlan-interface20

ipv6 address 2001:DA8:2::1/64

undo ipv6 nd ra halt

# interface FortyGigE1/0/53 port link-mode bridge # interface FortyGigE1/0/54 port link-mode bridge

# interface GigabitEthernet1/0/24

port link-mode route

description ith

combo enable fiber

ipv6 address 2001:DA8:3::1/64

# interface GigabitEthernet1/0/1

port link-mode bridge

port access vlan 10

combo enable fiber

# interface GigabitEthernet1/0/2

port link-mode bridge

port access vlan 20

combo enable fiber

# scheduler logfile size 16 # line class aux user-role network-operator # line class console user-role network-admin # line class tty user-role network-operator # line class vty user-role network-operator # line aux 0 user-role network-operator # line con 0 user-role network-admin # line vty 0 63 user-role network-operator

# ipv6 route fast-switchover enable

# ipv6 route-static :: 0 2001:DA8:3::2

现在的问题是两台pc互相ping不通，而且pc和路由器之间也ping不通，为什么
