问

iMC PLAT数据库自动备份失败（monitor_db失败）

PLAT

1天前提问

0关注
0收藏，100浏览

zhiliao_ly7JxN

zhiliao_ly7JxN 二段

粉丝：0人关注：0人

问题描述：

请教下面的问题是什么原因导致的？对应的解决方案有那些？

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [RemoveReservedFile] Begin Remove Reserved File

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] ClearFile

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] Remove file: /opt/dbmanbak/127.0.0.1@aclm_db_imc_aclm_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [DEBUG] [Remove] Remove file: /opt/dbmanbak/127.0.0.1@aclm_db_imc_aclm_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] Remove file: /opt/dbmanbak/127.0.0.1@icc_db_imc_icc_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [DEBUG] [Remove] Remove file: /opt/dbmanbak/127.0.0.1@icc_db_imc_icc_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] Remove file: /opt/dbmanbak/127.0.0.1@invent_db_imc_inventory_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [DEBUG] [Remove] Remove file: /opt/dbmanbak/127.0.0.1@invent_db_imc_inventory_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] Remove file: /opt/dbmanbak/127.0.0.1@monitor_db_imc_monitor_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [DEBUG] [Remove] Remove file: /opt/dbmanbak/127.0.0.1@monitor_db_imc_monitor_db_20260519_040003_full.db

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] Remove file: /opt/dbmanbak/fault_20260519_040003.zip

2026-05-22 03:13:09 [THREAD(4059032384)] [DEBUG] [Remove] Remove file: /opt/dbmanbak/fault_20260519_040003.zip

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] Remove file: /opt/dbmanbak/icc_20260519_040003.zip

2026-05-22 03:13:09 [THREAD(4059032384)] [DEBUG] [Remove] Remove file: /opt/dbmanbak/icc_20260519_040003.zip

2026-05-22 03:13:09 [THREAD(4059032384)] [INFO] [ClearFile] ClearFile

2026-05-22 04:00:03 [THREAD(4069522240)] [INFO] [TimeBackup] Begin auto backup .

2026-05-22 04:00:03 [THREAD(4069522240)] [INFO] [CommonBackup] Begin backup ...

2026-05-22 04:00:03 [THREAD(4069522240)] [INFO] [Remove] Fail to remove file: /opt/iMC/dbman/etc/dbman_bak.conf

2026-05-22 04:00:03 [THREAD(4069522240)] [DEBUG] [CommonBackup] Echo all server, Flag=0

2026-05-22 04:00:03 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/server/bin/../../dbman/etc/LastOperationResult.conf

2026-05-22 04:00:03 [THREAD(4069522240)] [DEBUG] [CLorOper::modifyLor] Write file LastOperationResult.conf: Result= ڱ

ErrorReport= ڱ ʱ ٴα ݻ ڱ ݵ ʱ

Tips= ͨ ErrorReport ܷ ʧ ԭ 鿴 ־dbman/log/dbman.log dbman_debug.log

2026-05-22 04:00:03 [THREAD(4069522240)] [DEBUG] [WriteFile] Write file /opt/iMC/server/bin/../../dbman/etc/LastOperationResult.conf.

2026-05-22 04:00:03 [THREAD(4069522240)] [INFO] [CDbBackup::BackupAllDataBase] Begin to auto backup all databases

2026-05-22 04:00:03 [THREAD(4069522240)] [INFO] [CDbBackup::BackupAllDataBase] Path: 127.0.0.1@aclm_db_imc_aclm_db_20260522_040003_full.db

2026-05-22 04:00:03 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec Mysqldump to export data, command: mysqldump --log-error="/opt/iMC/dbman/bin/dbop.sql.log" -u"root" -p"XXX" -h127.0.0.1 -P3306 --hex-blob --single-transaction aclm_db > "/opt/dbmanbak/127.0.0.1@aclm_db_imc_aclm_db_20260522_040003_full.db"

2026-05-22 04:00:04 [THREAD(4069522240)] [INFO] [runCommand] runCommand result OK. ret=0, WIFEXITED(ret)=1, WEXITSTATUS(ret)=0

2026-05-22 04:00:04 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec mysql backup log:

2026-05-22 04:00:04 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/dbman/bin/dbop.sql.log

2026-05-22 04:00:04 [THREAD(4069522240)] [INFO] [CDbBackup::BackupOneLocalDBase] ifAuto: 1;ifTrans: 0;bakDbIp: ,bakDBReceivePath:

2026-05-22 04:00:04 [THREAD(4069522240)] [INFO] [CDbBackup::BackupAllDataBase] Path: 127.0.0.1@icc_db_imc_icc_db_20260522_040003_full.db

2026-05-22 04:00:04 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalZipFile] Exec: ../etc/icc_zip.sh 127.0.0.1 imc_icc "XXX" "/opt/dbmanbak" icc_20260522_040003.zip icc_db 3306 >"/opt/iMC/dbman/bin/dbop.sql.log" 2>&1

2026-05-22 04:01:31 [THREAD(4069522240)] [INFO] [runCommand] runCommand result OK. ret=0, WIFEXITED(ret)=1, WEXITSTATUS(ret)=0

2026-05-22 04:01:31 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalZipFile] Exec shell log:../etc/icc_zip.sh:行14: /bin/cp: 参数列表过长

2026-05-22 04:01:31 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/dbman/bin/dbop.sql.log

2026-05-22 04:01:31 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec Mysqldump to export data, command: mysqldump --log-error="/opt/iMC/dbman/bin/dbop.sql.log" -u"root" -p"XXX" -h127.0.0.1 -P3306 --hex-blob --single-transaction icc_db > "/opt/dbmanbak/127.0.0.1@icc_db_imc_icc_db_20260522_040003_full.db"

2026-05-22 04:01:32 [THREAD(4069522240)] [INFO] [runCommand] runCommand result OK. ret=0, WIFEXITED(ret)=1, WEXITSTATUS(ret)=0

2026-05-22 04:01:32 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec mysql backup log:

2026-05-22 04:01:32 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/dbman/bin/dbop.sql.log

2026-05-22 04:01:32 [THREAD(4069522240)] [INFO] [CDbBackup::BackupOneLocalDBase] ifAuto: 1;ifTrans: 0;bakDbIp: ,bakDBReceivePath:

2026-05-22 04:01:32 [THREAD(4069522240)] [INFO] [CDbBackup::BackupAllDataBase] Path: 127.0.0.1@invent_db_imc_inventory_db_20260522_040003_full.db

2026-05-22 04:01:32 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec Mysqldump to export data, command: mysqldump --log-error="/opt/iMC/dbman/bin/dbop.sql.log" -u"root" -p"XXX" -h127.0.0.1 -P3306 --hex-blob --single-transaction invent_db > "/opt/dbmanbak/127.0.0.1@invent_db_imc_inventory_db_20260522_040003_full.db"

2026-05-22 04:01:32 [THREAD(4069522240)] [INFO] [runCommand] runCommand result OK. ret=0, WIFEXITED(ret)=1, WEXITSTATUS(ret)=0

2026-05-22 04:01:32 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec mysql backup log:

2026-05-22 04:01:32 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/dbman/bin/dbop.sql.log

2026-05-22 04:01:32 [THREAD(4069522240)] [INFO] [CDbBackup::BackupOneLocalDBase] ifAuto: 1;ifTrans: 0;bakDbIp: ,bakDBReceivePath:

2026-05-22 04:01:32 [THREAD(4069522240)] [INFO] [CDbBackup::BackupAllDataBase] Path: 127.0.0.1@monitor_db_imc_monitor_db_20260522_040003_full.db

2026-05-22 04:01:32 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalZipFile] Exec: ../etc/fault_zip.sh 127.0.0.1 imc_monitor "XXX" "/opt/dbmanbak" fault_20260522_040003.zip monitor_db 3306 >"/opt/iMC/dbman/bin/dbop.sql.log" 2>&1

2026-05-22 04:01:55 [THREAD(4069522240)] [INFO] [runCommand] runCommand result OK. ret=0, WIFEXITED(ret)=1, WEXITSTATUS(ret)=0

2026-05-22 04:01:55 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalZipFile] Exec shell log:OK

2026-05-22 04:01:55 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/dbman/bin/dbop.sql.log

2026-05-22 04:01:55 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec Mysqldump to export data, command: mysqldump --log-error="/opt/iMC/dbman/bin/dbop.sql.log" -u"root" -p"XXX" -h127.0.0.1 -P3306 --hex-blob --single-transaction monitor_db > "/opt/dbmanbak/127.0.0.1@monitor_db_imc_monitor_db_20260522_040003_full.db"

2026-05-22 04:16:09 [THREAD(4069522240)] [INFO] [runCommand] runCommand result FAIL. ret=768, errno=0, WIFEXITED(ret)=1, WEXITSTATUS(ret)=3

2026-05-22 04:16:09 [THREAD(4069522240)] [DEBUG] [CDbBackup::BackupOneLocalDBase] Exec mysql backup log:mysqldump: Error 1194: Table 'tbl_trap_data_event' is marked as crashed and should be repaired when dumping table `tbl_trap_data_event` at row: 141780263

2026-05-22 04:16:09 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/dbman/bin/dbop.sql.log

2026-05-22 04:16:09 [THREAD(4069522240)] [ERROR] [CDbBackup::BackupOneLocalDBase] Exec command fail.

2026-05-22 04:17:10 [THREAD(4069522240)] [INFO] [sendTrapAlert] Send trap success

2026-05-22 04:17:10 [THREAD(4069522240)] [WARNING] [CDbBackup::BackupAllDataBase] Backup database: monitor_db failed

2026-05-22 04:17:10 [THREAD(4069522240)] [ERROR] [CommonBackup] backup all db failed .

2026-05-22 04:17:10 [THREAD(4069522240)] [DEBUG] [Remove] Remove file: /opt/iMC/server/bin/../../dbman/etc/LastOperationResult.conf

2026-05-22 04:17:10 [THREAD(4069522240)] [DEBUG] [CLorOper::modifyLor] Write file LastOperationResult.conf: Result= ʧ

ErrorReport= ݿ ִ ʧ

Tips= ͨ ErrorReport ܷ ʧ ԭ 鿴 ־dbman/log/dbman.log dbman_debug.log

2026-05-22 04:17:10 [THREAD(4069522240)] [DEBUG] [WriteFile] Write file /opt/iMC/server/bin/../../dbman/etc/LastOperationResult.conf.

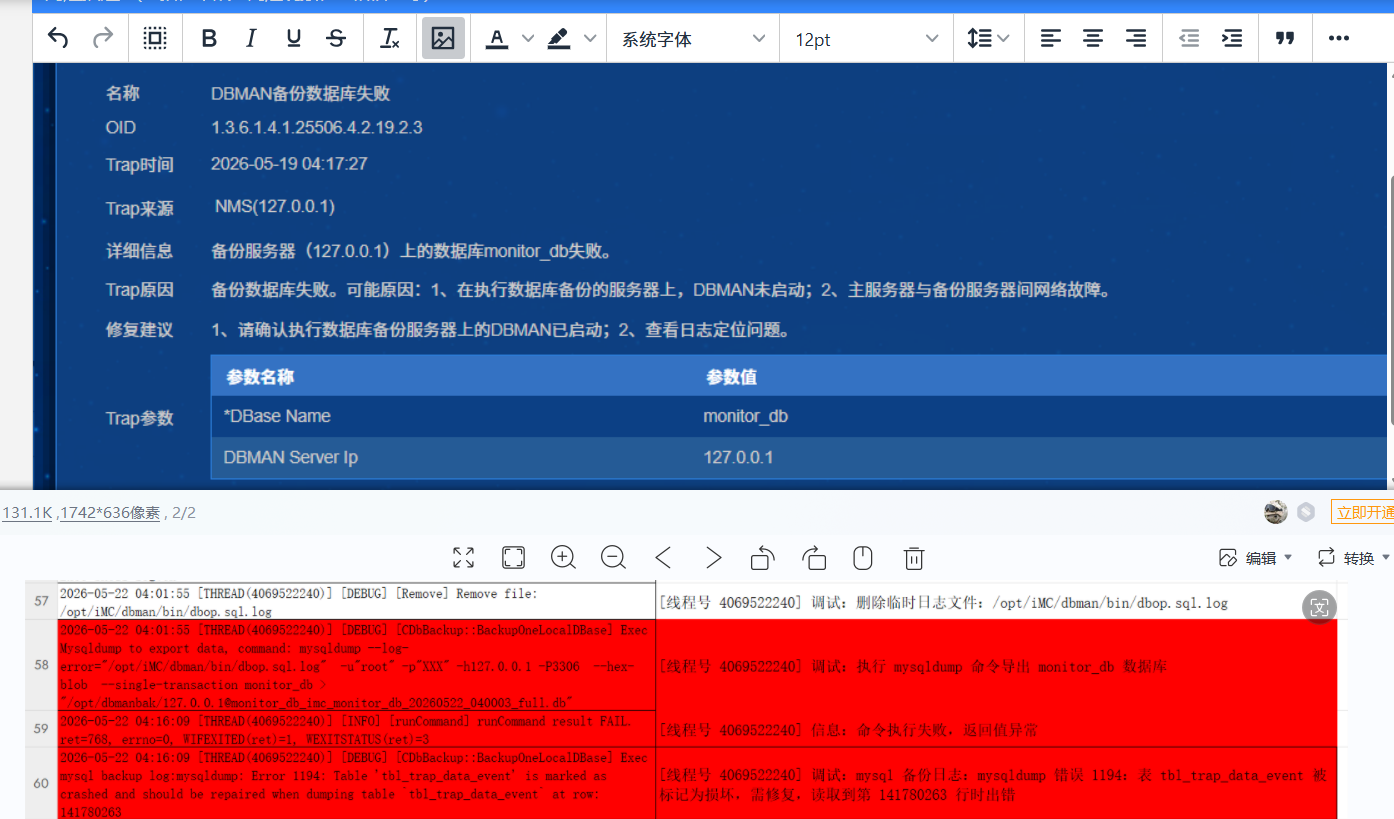

dbman_debug日志里的告警信息：

3 个回答

按时间按赞数

已采纳

刘浩存

刘浩存九段

粉丝：16人关注：1人

根据你提供的 iMC dbman_debug.log 日志，导致 monitor_db 数据库自动备份失败的直接原因非常明确。

日志中记录了具体的报错信息：

mysqldump: Error 1194: Table 'tbl_trap_data_event' is marked as crashed and should be repaired when dumping table 'tbl_trap_data_event' at row: 141780263

这表明 iMC 监控数据库（monitor_db）中的 tbl_trap_data_event（告警/Trap事件表）已经损坏（crashed），导致 mysqldump 在导出数据时无法读取该表，从而引发了整个备份任务的失败。

你可以按照以下步骤来修复损坏的数据库表并恢复备份功能：

1. 修复损坏的数据库表

你需要登录到 iMC 服务器的后台，通过 MySQL 命令行工具来修复这张损坏的表。

进入 MySQL 命令行：
在 iMC 服务器的 Linux 终端中，进入 iMC 自带的 MySQL 目录（通常在 /opt/iMC/mysql/bin/ 下），使用 root 账号登录数据库。
1cd /opt/iMC/mysql/bin/ 2./mysql -uroot -p
(注：输入密码时，密码默认为 imcplat 或者你在部署时设置的数据库密码。如果忘记密码，可以查看 /opt/iMC/common/conf/dbconf.properties 文件获取)
执行修复命令：
登录成功后，依次执行以下 SQL 语句：
1USE monitor_db; -- 切换到监控数据库 2REPAIR TABLE tbl_trap_data_event; -- 修复损坏的表
等待系统返回 OK 或 Status: OK 的提示，即表示表修复成功。
退出 MySQL：
输入 exit; 退出数据库命令行。

2. 验证并重新执行备份

表修复完成后，建议手动触发一次备份，确认问题是否彻底解决：

打开 iMC 的“智能部署监控代理”。
切换到“运行环境”页签。
点击“立即备份”按钮。
观察备份任务是否能顺利完成。

3. 补充建议与排查

检查磁盘空间：数据库表损坏有时是因为服务器磁盘空间写满导致的。建议顺手检查一下 iMC 服务器的磁盘使用情况（使用 df -h 命令），确保 /opt 分区有足够的剩余空间。
数据清理：tbl_trap_data_event 是告警事件表，如果该表数据量极其庞大（日志显示已读到上亿行），建议定期在 iMC 界面上配置告警数据的自动转储或清理策略，避免单表过大影响数据库性能。
版本已知问题：如果你的 iMC 平台版本较旧，且备份任务在特定日期（如2024年6月10日左右）后突然频繁出现异常，可能与 iMC 内部进程生成 ID 的算法缺陷有关。如果遇到修复后依然频繁报错的情况，可以考虑重启 iMC 进程，或联系 H3C 技术支持确认是否需要升级平台版本。
