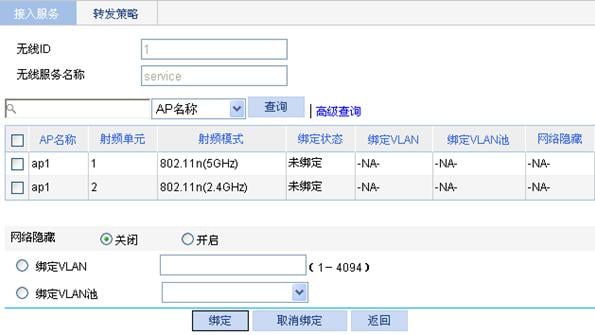

如果在ac的WEP界面里开通wa2610h-fit的，射频服务

看案例：http://www.h3c.com/cn/d_201906/1201947_30005_0.htm

组网需求

如图3-1所示，集中式转发架构下，无线客户端Client、有线客户端Host通过L2 switch和AC相连，L2 switch通过PoE方式给AP供电，AC做为DHCP server为AP、Client和Host分配IP地址。需要实现无线客户端Client通过AP连接到AC上，并能与有线客户端Host互相访问。

图3-1 Fit AP通过二层网络注册到AC配置举例组网图

3.2  配置思路

·     在AC上开启DHCP server功能，AP、无线客户端Client和有线客户端Host都能通过DHCP server自动获取IP地址。

·     在L2 switch上开启PoE功能，为AP设备供电。

·     在AC上配置无线服务，确保Client可以通过配置的无线服务接入网络，并访问Host。

3.3  配置注意事项

·     配置AP的序列号时请确保该序列号与AP唯一对应，AP的序列号可以通过AP设备背面的标签获取。

·     配置L2 switch和AP相连的接口禁止VLAN 1报文通过，以防止VLAN 1内报文过多。

3.4  配置步骤

3.4.1  配置AC

(1)     配置DHCP server

# 开启DHCP server功能。

<AC> system-view

[AC] dhcp enable

# 配置DHCP地址池1为AP分配地址范围为192.168.201.0/24，网关地址为192.168.201.1。

[AC] dhcp server ip-pool 1

[AC-dhcp-pool-1] network 192.168.201.0 mask 255.255.255.0

[AC-dhcp-pool-1] gateway-list 192.168.201.1

[AC-dhcp-pool-1] quit

# 配置DHCP地址池2为Client分配地址范围为192.168.202.0/24，为Client分配的DNS服务器地址为网关地址（实际使用过程中请根据实际网络规划配置无线客户端的DNS服务器地址），网关地址为192.168.202.1。

[AC] dhcp server ip-pool 2

[AC-dhcp-pool-2] network 192.168.202.0 mask 255.255.255.0

[AC-dhcp-pool-2] gateway-list 192.168.202.1

[AC-dhcp-pool-2] dns-list 192.168.202.1

[AC-dhcp-pool-2] quit

# 配置DHCP地址池3为Host分配地址范围为192.168.203.0/24，为Host分配的DNS服务器地址为网关地址（实际使用过程中请根据实际网络规划配置无线客户端的DNS服务器地址），网关地址为192.168.203.1。

[AC] dhcp server ip-pool 3

[AC-dhcp-pool-3] network 192.168.203.0 mask 255.255.255.0

[AC-dhcp-pool-3] gateway-list 192.168.203.1

[AC-dhcp-pool-3] dns-list 192.168.203.1

[AC-dhcp-pool-3] quit

(2)     配置AC的接口

# 创建VLAN 100及其对应的VLAN接口，并为该接口配置IP地址。AP将获取该IP地址与AC建立CAPWAP隧道。

[AC] vlan 100

[AC-vlan100] quit

[AC] interface vlan-interface 100

[AC-Vlan-interface100] ip address 192.168.201.1 255.255.255.0

[AC-Vlan-interface100] quit

# 创建VLAN 200及其对应的VLAN接口，并为该接口配置IP地址。Client使用该VLAN接入无线网络。

[AC] vlan 200

[AC-vlan200] quit

[AC] interface vlan-interface 200

[AC-Vlan-interface200] ip address 192.168.202.1 24

[AC-Vlan-interface200] quit

# 创建VLAN 300及其对应的VLAN接口，并为该接口配置IP地址。Host使用该VLAN与AC建立连接。

[AC] vlan 300

[AC-vlan300] quit

[AC] interface vlan-interface 300

[AC-Vlan-interface300] ip address 192.168.203.1 24

[AC-Vlan-interface300] quit

# 配置AC和L2 switch相连的接口GigabitEthernet1/0/1为Trunk类型，禁止VLAN 1报文通过，允许VLAN 100、VLAN 200和VLAN 300通过，当前Trunk口的PVID为100。

[AC] interface gigabitethernet 1/0/1

[AC-GigabitEthernet1/0/1] port link-type trunk

[AC-GigabitEthernet1/0/1] undo port trunk permit vlan 1

[AC-GigabitEthernet1/0/1] port trunk permit vlan 100 200 300

[AC-GigabitEthernet1/0/1] port trunk pvid vlan 100

[AC-GigabitEthernet1/0/1] quit

(3)     配置无线服务

# 创建无线服务模板1，并进入无线服务模板视图。

[AC] wlan service-template 1

# 配置SSID为service。

[AC-wlan-st-1] ssid service

# 使能服务模板。

[AC-wlan-st-1] service-template enable

[AC-wlan-st-1] quit

(4)     配置AP

# 创建手工AP，名称为officeap，型号名称为WA4320i-ACN。

[AC] wlan ap officeap model WA4320i-ACN

# 设置AP的序列号为210235A1Q2C159000018。

[AC-wlan-ap-officeap] serial-id 210235A1Q2C159000018

# 进入AP的Radio 1视图，将无线服务模板1绑定到Radio 1上，并指定客户端上线的VLAN为VLAN 200。

[AC-wlan-ap-officeap] radio 1

[AC-wlan-ap-officeap-radio-1] service-template 1 vlan 200

# 开启Radio 1的射频功能。

[AC-wlan-ap-officeap-radio-1] radio enable

[AC-wlan-ap-officeap-radio-1] return

3.4.2  配置L2 switch

# 创建VLAN 100、VLAN 200和VLAN 300，其中VLAN 100用于转发AC和AP间CAPWAP隧道内的流量，VLAN 200为无线客户端接入的VLAN，VLAN 300为Host接入的VLAN。

<L2 switch> system-view

[L2 switch] vlan 100

[L2 switch-vlan100] quit

[L2 switch] vlan 200

[L2 switch-vlan200] quit

[L2 switch] vlan 300

[L2 switch-vlan300] quit

# 配置L2 switch和AC相连的接口GigabitEthernet1/0/1为Trunk类型，允许VLAN 100、VLAN 200和VLAN 300通过，当前Trunk口的PVID为100。

[L2 switch] interface gigabitEthernet 1/0/1

[L2 switch-GigabitEthernet1/0/1] port link-type trunk

[L2 switch-GigabitEthernet1/0/1] port trunk permit vlan 100 200 300

[L2 switch-GigabitEthernet1/0/1] port trunk pvid vlan 100

[L2 switch-GigabitEthernet1/0/1] quit

# 配置L2 switch和AP相连的接口GigabitEthernet1/0/2为Trunk类型，禁止VLAN 1报文通过，允许VLAN 100和VLAN 200通过，当前Trunk口的PVID为100，并开启PoE远程供电功能。

[L2 switch] interfac gigabitEthernet 1/0/2

[L2 switch-GigabitEthernet1/0/2] port link-type trunk

[L2 switch-GigabitEthernet1/0/2] undo port trunk permit vlan 1

[L2 switch-GigabitEthernet1/0/2] port trunk permit vlan 100 200

[L2 switch-GigabitEthernet1/0/2] port trunk pvid vlan 100

[L2 switch-GigabitEthernet1/0/2] poe enable

[L2 switch-GigabitEthernet1/0/2] quit

# 配置L2 switch和Host相连的接口GigabitEthernet1/0/3为Access类型，允许VLAN 300通过。

[L2 switch] interface gigabitEthernet 1/0/3

[L2 switch-GigabitEthernet1/0/3] port access vlan 300

[L2 switch-GigabitEthernet1/0/3] quit

3.5  验证配置

(1)     在AC上查看AP注册信息

# 在AC上使用命令display wlan ap all查看AP，可以看到AP的状态是R/M，表明AP已经成功注册到AC。

<AC> display wlan ap all

Total number of APs: 1

Total number of connected APs: 1

Total number of connected manual APs: 1

Total number of connected auto APs: 0

Total number of connected common APs: 1

Total number of connected WTUs: 0

Total number of inside APs: 0

Maximum supported APs: 3072

Remaining APs: 3071

Total AP licenses: 512

Remaining AP licenses: 511

                                 AP information

 State : I = Idle,      J  = Join,       JA = JoinAck,    IL = ImageLoad

         C = Config,    DC = DataCheck,  R  = Run,   M = Master,  B = Backup

AP name                AP ID   State   Model             Serial ID

officeap               1       R/M     WA4320i-ACN       210235A1Q2C159000018

(2)     在AC上查看Client信息

# 在AC上使用命令display wlan client查看在线Client，可以看到Client已经连接到AP的radio1。

<AC> display wlan client

Total number of clients: 1

MAC address     Username   AP name         RID  IP address      IPv6 address   VLAN

109a-dd9d-fc68  N/A        officeap        1    192.168.202.4   N/A            200

(3)     Host与Client可以相互ping通

# Client 通过DHCP server获取到IP地址192.168.202.4，在Host上ping Client的IP地址可以ping通。同理，在Client上ping Host的IP地址也能ping通，不再赘述。

C:\Users\system32>ping 192.168.202.4 -t

Pinging 192.168.202.4 with 32 bytes of data:

Reply from 192.168.202.4: bytes=32 time=8ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Reply from 192.168.202.4: bytes=32 time<1ms TTL=255

Ping statistics for 192.168.202.4:

    Packets: Sent = 11, Received = 11, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

    Minimum = 0ms, Maximum = 8ms, Average = 0ms

Control-C

^C

C:\Users\system32>
