rrpp domian 1 不配置控制vlan 会默认出4092

控制vlan需要人为指定，STP实例无需添加。如果是相切环，控制vlan不能一样，另外一个环默认会加1处理

1.12.2  相交环配置举例

1. 组网需求

·            Device A～Device E构成RRPP域1，该域的主控制VLAN为VLAN 4092，保护VLAN为VLAN 1～30。

·            Device A、Device B、Device C和Device D构成主环Ring 1；Device B、Device C和Device E构成子环Ring 2。

·            Device A为主环的主节点，GigabitEthernet1/0/1和GigabitEthernet1/0/2分别为主、副端口；Device E为子环的主节点，GigabitEthernet1/0/1和GigabitEthernet1/0/2分别为主、副端口；Device B为主环的传输节点和子环的边缘节点，GigabitEthernet1/0/3为边缘端口；Device C为主环的传输节点和子环的辅助边缘节点，GigabitEthernet1/0/3为边缘端口；Device D为主环的传输节点，GigabitEthernet1/0/1和GigabitEthernet1/0/2分别为主、副端口。

2. 组网图

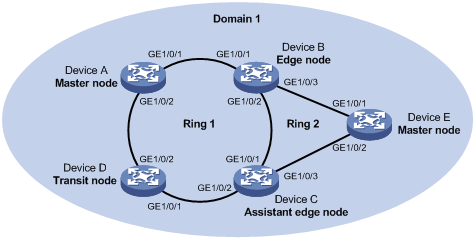

图1-9 相交环配置组网图

‌

3. 配置步骤

(1)       配置Device A

# 创建VLAN 1～30，将这些VLAN都映射到MSTI 1上，并激活MST域的配置。

<DeviceA> system-view

[DeviceA] vlan 1 to 30

[DeviceA] stp region-configuration

[DeviceA-mst-region] instance 1 vlan 1 to 30

[DeviceA-mst-region] active region-configuration

[DeviceA-mst-region] quit

# 分别在端口GigabitEthernet1/0/1和GigabitEthernet1/0/2上配置物理连接状态up/down抑制时间为0秒（即不抑制），关闭生成树协议，并将端口配置为Trunk端口且允许VLAN 1～30通过。

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] link-delay 0

[DeviceA-GigabitEthernet1/0/1] undo stp enable

[DeviceA-GigabitEthernet1/0/1] port link-type trunk

[DeviceA-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30

[DeviceA-GigabitEthernet1/0/1] quit

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] link-delay 0

[DeviceA-GigabitEthernet1/0/2] undo stp enable

[DeviceA-GigabitEthernet1/0/2] port link-type trunk

[DeviceA-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30

[DeviceA-GigabitEthernet1/0/2] quit

# 创建RRPP域1，将VLAN 4092配置为该域的主控制VLAN，并将MSTI 1所映射的VLAN配置为该域的保护VLAN。

[DeviceA] rrpp domain 1

[DeviceA-rrpp-domain1] control-vlan 4092

[DeviceA-rrpp-domain1] protected-vlan reference-instance 1

# 配置本设备为主环Ring 1的主节点，主端口为GigabitEthernet1/0/1，副端口为GigabitEthernet1/0/2，并开启该环。

[DeviceA-rrpp-domain1] ring 1 node-mode master primary-port gigabitethernet 1/0/1 secondary-port gigabitethernet 1/0/2 level 0

[DeviceA-rrpp-domain1] ring 1 enable

[DeviceA-rrpp-domain1] quit

# 开启RRPP协议。

[DeviceA] rrpp enable

(2)       配置Device B

# 创建VLAN 1～30，将这些VLAN都映射到MSTI 1上，并激活MST域的配置。

<DeviceB> system-view

[DeviceB] vlan 1 to 30

[DeviceB] stp region-configuration

[DeviceB-mst-region] instance 1 vlan 1 to 30

[DeviceB-mst-region] active region-configuration

[DeviceB-mst-region] quit

# 分别在端口GigabitEthernet1/0/1、GigabitEthernet1/0/2和GigabitEthernet1/0/3上配置物理连接状态up/down抑制时间为0秒（即不抑制），关闭生成树协议，并将端口配置为Trunk端口且允许VLAN 1～30通过。

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] link-delay 0

[DeviceB-GigabitEthernet1/0/1] undo stp enable

[DeviceB-GigabitEthernet1/0/1] port link-type trunk

[DeviceB-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30

[DeviceB-GigabitEthernet1/0/1] quit

[DeviceB] interface gigabitethernet 1/0/2

[DeviceB-GigabitEthernet1/0/2] link-delay 0

[DeviceB-GigabitEthernet1/0/2] undo stp enable

[DeviceB-GigabitEthernet1/0/2] port link-type trunk

[DeviceB-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30

[DeviceB-GigabitEthernet1/0/2] quit

[DeviceB] interface gigabitethernet 1/0/3

[DeviceB-GigabitEthernet1/0/3] link-delay 0

[DeviceB-GigabitEthernet1/0/3] undo stp enable

[DeviceB-GigabitEthernet1/0/3] port link-type trunk

[DeviceB-GigabitEthernet1/0/3] port trunk permit vlan 1 to 30

[DeviceB-GigabitEthernet1/0/3] quit

# 创建RRPP域1，将VLAN 4092配置为该域的主控制VLAN，并将MSTI 1所映射的VLAN配置为该域的保护VLAN。

[DeviceB] rrpp domain 1

[DeviceB-rrpp-domain1] control-vlan 4092

[DeviceB-rrpp-domain1] protected-vlan reference-instance 1

# 配置本设备为主环Ring 1的传输节点，主端口为GigabitEthernet1/0/1，副端口为GigabitEthernet1/0/2，并开启该环。

[DeviceB-rrpp-domain1] ring 1 node-mode transit primary-port gigabitethernet 1/0/1 secondary-port gigabitethernet 1/0/2 level 0

[DeviceB-rrpp-domain1] ring 1 enable

# 配置本设备为子环Ring 2的边缘节点，边缘端口为GigabitEthernet1/0/3，并开启该环。

[DeviceB-rrpp-domain1] ring 2 node-mode edge edge-port gigabitethernet 1/0/3

[DeviceB-rrpp-domain1] ring 2 enable

[DeviceB-rrpp-domain1] quit

# 开启RRPP协议。

[DeviceB] rrpp enable

(3)       配置Device C

# 创建VLAN 1～30，将这些VLAN都映射到MSTI 1上，并激活MST域的配置。

<DeviceC> system-view

[DeviceC] vlan 1 to 30

[DeviceC] stp region-configuration

[DeviceC-mst-region] instance 1 vlan 1 to 30

[DeviceC-mst-region] active region-configuration

[DeviceC-mst-region] quit

# 分别在端口GigabitEthernet1/0/1、GigabitEthernet1/0/2和GigabitEthernet1/0/3上配置物理连接状态up/down抑制时间为0秒（即不抑制），关闭生成树协议，并将端口配置为Trunk端口且允许VLAN 1～30通过。

[DeviceC] interface gigabitethernet 1/0/1

[DeviceC-GigabitEthernet1/0/1] link-delay 0

[DeviceC-GigabitEthernet1/0/1] undo stp enable

[DeviceC-GigabitEthernet1/0/1] port link-type trunk

[DeviceC-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30

[DeviceC-GigabitEthernet1/0/1] quit

[DeviceC] interface gigabitethernet 1/0/2

[DeviceC-GigabitEthernet1/0/2] link-delay 0

[DeviceC-GigabitEthernet1/0/2] undo stp enable

[DeviceC-GigabitEthernet1/0/2] port link-type trunk

[DeviceC-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30

[DeviceC-GigabitEthernet1/0/2] quit

[DeviceC] interface gigabitethernet 1/0/3

[DeviceC-GigabitEthernet1/0/3] link-delay 0

[DeviceC-GigabitEthernet1/0/3] undo stp enable

[DeviceC-GigabitEthernet1/0/3] port link-type trunk

[DeviceC-GigabitEthernet1/0/3] port trunk permit vlan 1 to 30

[DeviceC-GigabitEthernet1/0/3] quit

# 创建RRPP域1，将VLAN 4092配置为该域的主控制VLAN，并将MSTI 1所映射的VLAN配置为该域的保护VLAN。

[DeviceC] rrpp domain 1

[DeviceC-rrpp-domain1] control-vlan 4092

[DeviceC-rrpp-domain1] protected-vlan reference-instance 1

# 配置本设备为主环Ring 1的传输节点，主端口为GigabitEthernet1/0/1，副端口为GigabitEthernet1/0/2，并开启该环。

[DeviceC-rrpp-domain1] ring 1 node-mode transit primary-port gigabitethernet 1/0/1 secondary-port gigabitethernet 1/0/2 level 0

[DeviceC-rrpp-domain1] ring 1 enable

# 配置本设备为子环Ring 2的辅助边缘节点，边缘端口为GigabitEthernet1/0/3，并开启该环。

[DeviceC-rrpp-domain1] ring 2 node-mode assistant-edge edge-port gigabitethernet 1/0/3

[DeviceC-rrpp-domain1] ring 2 enable

[DeviceC-rrpp-domain1] quit

# 开启RRPP协议。

[DeviceC] rrpp enable

(4)       配置Device D

# 创建VLAN 1～30，将这些VLAN都映射到MSTI 1上，并激活MST域的配置。

<DeviceD> system-view

[DeviceD] vlan 1 to 30

[DeviceD] stp region-configuration

[DeviceD-mst-region] instance 1 vlan 1 to 30

[DeviceD-mst-region] active region-configuration

[DeviceD-mst-region] quit

# 分别在端口GigabitEthernet1/0/1和GigabitEthernet1/0/2上配置物理连接状态up/down抑制时间为0秒（即不抑制），关闭生成树协议，并将端口配置为Trunk端口且允许VLAN 1～30通过。

[DeviceD] interface gigabitethernet 1/0/1

[DeviceD-GigabitEthernet1/0/1] link-delay 0

[DeviceD-GigabitEthernet1/0/1] undo stp enable

[DeviceD-GigabitEthernet1/0/1] port link-type trunk

[DeviceD-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30

[DeviceD-GigabitEthernet1/0/1] quit

[DeviceD] interface gigabitethernet 1/0/2

[DeviceD-GigabitEthernet1/0/2] link-delay 0

[DeviceD-GigabitEthernet1/0/2] undo stp enable

[DeviceD-GigabitEthernet1/0/2] port link-type trunk

[DeviceD-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30

[DeviceD-GigabitEthernet1/0/2] quit

# 创建RRPP域1，将VLAN 4092配置为该域的主控制VLAN，并将MSTI 1所映射的VLAN配置为该域的保护VLAN。

[DeviceD] rrpp domain 1

[DeviceD-rrpp-domain1] control-vlan 4092

[DeviceD-rrpp-domain1] protected-vlan reference-instance 1

# 配置本设备为主环Ring 1的传输节点，主端口为GigabitEthernet1/0/1，副端口为GigabitEthernet1/0/2，并开启该环。

[DeviceD-rrpp-domain1] ring 1 node-mode transit primary-port gigabitethernet 1/0/1 secondary-port gigabitethernet 1/0/2 level 0

[DeviceD-rrpp-domain1] ring 1 enable

[DeviceD-rrpp-domain1] quit

# 开启RRPP协议。

[DeviceD] rrpp enable

(5)       配置Device E

# 创建VLAN 1～30，将这些VLAN都映射到MSTI 1上，并激活MST域的配置。

<DeviceE> system-view

[DeviceE] vlan 1 to 30

[DeviceE] stp region-configuration

[DeviceE-mst-region] instance 1 vlan 1 to 30

[DeviceE-mst-region] active region-configuration

[DeviceE-mst-region] quit

# 分别在端口GigabitEthernet1/0/1和GigabitEthernet1/0/2上配置物理连接状态up/down抑制时间为0秒（即不抑制），关闭生成树协议，并将端口配置为Trunk端口且允许VLAN 1～30通过。

[DeviceE] interface gigabitethernet 1/0/1

[DeviceE-GigabitEthernet1/0/1] link-delay 0

[DeviceE-GigabitEthernet1/0/1] undo stp enable

[DeviceE-GigabitEthernet1/0/1] port link-type trunk

[DeviceE-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30

[DeviceE-GigabitEthernet1/0/1] quit

[DeviceE] interface gigabitethernet 1/0/2

[DeviceE-GigabitEthernet1/0/2] link-delay 0

[DeviceE-GigabitEthernet1/0/2] undo stp enable

[DeviceE-GigabitEthernet1/0/2] port link-type trunk

[DeviceE-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30

[DeviceE-GigabitEthernet1/0/2] quit

# 创建RRPP域1，将VLAN 4092配置为该域的主控制VLAN，并将MSTI 1所映射的VLAN配置为该域的保护VLAN。

[DeviceE] rrpp domain 1

[DeviceE-rrpp-domain1] control-vlan 4092

[DeviceE-rrpp-domain1] protected-vlan reference-instance 1

# 配置本设备为子环Ring 2的主节点，主端口为GigabitEthernet1/0/1，副端口为GigabitEthernet1/0/2，并开启该环。

[DeviceE-rrpp-domain1] ring 2 node-mode master primary-port gigabitethernet 1/0/1 secondary-port gigabitethernet 1/0/2 level 1

[DeviceE-rrpp-domain1] ring 2 enable

[DeviceE-rrpp-domain1] quit

# 开启RRPP协议。

[DeviceE] rrpp enable

4. 验证配置

配置完成后，用户可以使用display命令显示各设备上RRPP的配置和运行情况。
