[F1000-AK135]display version
H3C Comware Software, Version 7.1.064, Release 9323P16
Copyright (c) 2004-2018 New H3C Technologies Co., Ltd. All rights reserved.
H3C SecPath F1000-AK135 uptime is 2 weeks, 3 days, 2 hours, 15 minutes
Last reboot reason: User reboot
Boot image: flash:/f1000fw-cmw710-boot-R9323P16.bin
Boot image version: 7.1.064, Release 9323P16
Compiled Apr 10 2018 16:00:00
System image: flash:/f1000fw-cmw710-system-R9323P16.bin
System image version: 7.1.064, Release 9323P16
Compiled Apr 10 2018 16:00:00
SLOT 1
CPU type: Multi-core CPU
DDR3 SDRAM Memory 4096M bytes
Board PCB Version:Ver.A
CPLD_A Version: 1.0
CPLD_B Version: 3.0
Basic BootWare Version: 2.00
Extend BootWare Version: 2.00
Board PFC Version:Ver.A
NandFlash PCB Version:Ver.A
HD PCB Version:Ver.A
[SubSlot 0]16GE+2SFP (Hardware)Ver.A, (Driver)1.0, (Cpld)3.0
[F1000-AK135] [F1000-AK135] m?
mac-address Configure MAC address
mac-address-filter Destination MAC address filtering
mac-authentication MAC authentication module
mac-list Configure a MAC address list
mad Multi-active detection information
memory-threshold Set memory thresholds
mld Multicast Listener Discovery Protocol (MLD) module
monitor
monitor-link Monitor Link module
multicast Multicast module
mvrp Multiple VLAN registration protocol
[F1000-AK135] m
没有镜像端口命令这个谁知道是怎么回事
(0)
最佳答案
F5010/F5020/F5020-GM/F5040/F5000-C/F5000-S/F1020/F1020-GM/F1030/F1030-GM/F1050/F1060/F1070/F1070-GM/F1070-GM-L/F1080/F1000-V70/F1000-AK130/AK135/AK140/AK145/AK150/AK155/AK160/AK165/AK170/AK175/AK180/AK185/AK711/AK1212/AK1222/AK1232/AK1312/AK1322/AK1332/F1000-AI-20/F1000-AI-30/F1000-AI-50/F1000-GM-AK370/F1000-GM-AK380不支持设备自带接口与接口卡接口加入同一镜像组。
在IRF中不支持跨设备镜像,即镜像源与镜像目的不可以位于不同成员设备上。
设备不支持虚拟接口镜像。
流经Context共享口的流量均会被镜像到目的端口,无法区分不同的Context。
F1000系列设备配置镜像组时,需要先配置目的端口,再配置源端口。
当配置F1000系列设备的一个镜像组源端口为outbound或者both模式时,则另一个镜像组的所有源端口只能配置为inbound模式。
F1000系列设备每个镜像组内只能配置一个目的端口或者多个源端口,且端口配置为一个镜像组的目的端口或者源端口后,不能再配置为另一个镜像组的源端口或者目的端口。
在完成镜像源和镜像目的配置之后,本地镜像组才能生效。
本地端口镜像配置任务如下:
(1) 创建本地镜像组
(2) 配置镜像源
(3) 配置镜像目的
(1) 进入系统视图。
system-view
(2) 创建本地镜像组。
mirroring-group group-id local
配置源端口时,需要注意的是:
· 一个镜像组内可以配置多个源端口。
· 一个端口可被多个镜像组用作源端口。
· 源端口不能用作目的端口。
· 在系统视图下配置源端口。
a. 进入系统视图。
system-view
b. 为本地镜像组配置源端口。
mirroring-group group-id mirroring-port interface-list { both | inbound | outbound }
缺省情况下,未为本地镜像组配置源端口。
· 在接口视图下配置源端口。
a. 进入系统视图。
system-view
b. 进入接口视图。
interface interface-type interface-number
c. 配置当前端口为本地镜像组的源端口。
mirroring-group group-id mirroring-port { both | inbound | outbound }
缺省情况下,未配置当前端口为本地镜像组的源端口。
不能在目的端口上开启生成树协议,否则会影响镜像功能的正常使用。
从目的端口发出的报文包括镜像报文和其他端口正常转发来的报文。为了保证数据监测设备只对镜像报文进行分析,请将目的端口只用于端口镜像,不作其他用途。
· 在系统视图下配置目的端口。
a. 进入系统视图。
system-view
b. 为本地镜像组配置目的端口。
mirroring-group group-id monitor-port interface-type interface-number
缺省情况下,未为本地镜像组配置目的端口。
· 在接口视图下配置目的端口。
a. 进入系统视图。
system-view
b. 进入接口视图。
interface interface-type interface-number
c. 配置本端口为本地镜像组的目的端口。
mirroring-group group-id monitor-port
缺省情况下,未配置当前端口为本地镜像组的目的端口。
在完成上述配置后,在任意视图下执行display命令可以显示配置后镜像组的运行情况,通过查看显示信息验证配置的效果。
表1-1 端口镜像显示和维护
操作 |
命令 |
显示镜像组的配置信息 |
display mirroring-group { group-id | all | local } |
(0)
你直接在web页面抓接口包就行了,不用镜像
(0)
https://www.h3c.com/cn/d_202503/2371201_30005_0.htm R9900版本支持镜像
需要将流量发送到指定设备
https://www.h3c.com/cn/d_202503/2371201_30005_0.htm R9900版本支持镜像
大部分防火墙都不支持镜像功能
如果是需要抓包,通过web抓包就可以
(0)
需要将流量发送到指定设备
先进入目的端口配置,然后再配置源端口
sys
int g1/0/x
mirroring-group group-id mirroring-port { both | inbound | outbound }
#
配置源端口
sys
mirroring-group group-id mirroring-port interface-list { both | inbound | outbound }
(0)
[F1000-AK135-GigabitEthernet1/0/1]m? mac-address MAC address information mld Multicast Listener Discovery (MLD) module monitor System monitor mtu Specify Maximum Transmission Unit(MTU) of the interface multicast Multicast module [F1000-AK135-GigabitEthernet1/0/1]m
也不行 [F1000-AK135-GigabitEthernet1/0/1]m? mac-address MAC address information mld Multicast Listener Discovery (MLD) module monitor System monitor mtu Specify Maximum Transmission Unit(MTU) of the interface multicast Multicast module [F1000-AK135-GigabitEthernet1/0/1]m
[F1000-AK135-GigabitEthernet1/0/1]m? mac-address MAC address information mld Multicast Listener Discovery (MLD) module monitor System monitor mtu Specify Maximum Transmission Unit(MTU) of the interface multicast Multicast module [F1000-AK135-GigabitEthernet1/0/1]m

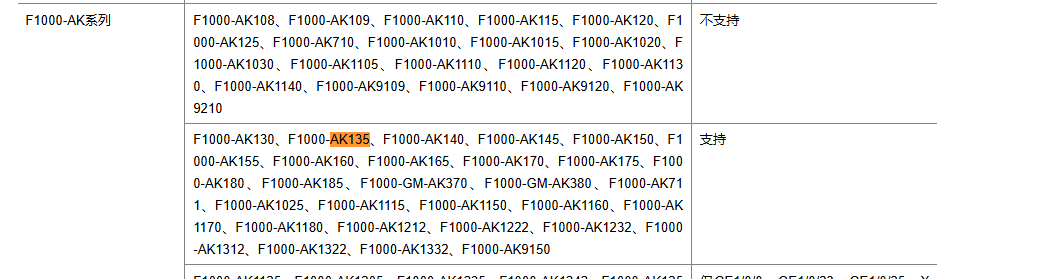

该设备支持镜像,需要升级版本
https://www.h3c.com/cn/d_202405/2152722_30005_0.htm
(0)
可以直接上级上去吗?当前版本
因为不太会看H3C 软件升级在哪里看 前置版本
