H3C WA4320i-ACN 刷机胖AP失败
- 0关注
- 0收藏，414浏览
ctrl+F格式化一下，然后重新再刷一遍
- 2025-05-21回答
- 评论(3)
- 举报
-
(0)
Starting to get the main application file--flash:/wa4600_fit.bin! The main application file does not exist--flash:/wa4600_fit.bin! Starting to get the backup application file--flash:/backup.bin! The backup application file does not exist--flash:/backup.bin! Starting to get the secure application file--flash:/secure.bin! The secure application file does not exist--flash:/secure.bin! Booting App fails! Trying to get the IP address from the DHCP server...... DHCP server's IP address is 192.168.1.1 Client's assigned address is 192.168.1.111 DNS domain name got from DHCP server is DNS server's IP address is 192.168.1.1 Default Gateway's IP address is 192.168.1.1 This client's subnet mask is 255.255.255.0 The length of option 43 is: 0 Change State : Idle to Broadcast Discovery Change State : Broadcast Discovery to Unicast Discovery get ac [***.***]'s ip... Getting AC's IP Address Failed... Change State : Unicast Discovery to Sulking
好像还是不行
这还是没刷成功啊，按照步骤一步一步重新来
你 版本找对了吗？重名命只能用小写，不可大写。
Password recovery capability is enabled.
Note: The current operating device is flash
Enter < Storage Device Operation > to select device.
===========================<EXTEND-BOOTWARE MENU>===========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Clear Super Password |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+C: Display Copyright
Ctrl+Y: Change AP Mode
Ctrl+F: Format File System
为防止AP空间不够，选择Ctrl+F再格式化一次。格式化之后：
===========================<EXTEND-BOOTWARE MENU>===========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Clear Super Password |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+C: Display Copyright
Ctrl+Y: Change AP Mode
Ctrl+F: Format File System
Enter your choice(0-9): 3
==========================<Enter Ethernet SubMenu>==========================
|Note:the operating device is flash |
|<1> Download Application Program To SDRAM And Run |
|<2> Update Main Application File |
|<3> Modify Ethernet Parameter |
|<0> Exit To Main Menu |
|<Ensure The Parameter Be Modified Before Downloading!> |
============================================================================
Enter your choice(0-3): 3 //修改以太网参数,有可能选5，请根据实际情况选择
==========================<ETHERNET PARAMETER SET>==========================
|Note: "." = Clear field. |
| "-" = Go to previous field. |
| Ctrl+D = Quit. |
============================================================================
Protocol (FTP or TFTP) :tftp tftp //不管看到什么输入tftp
Load File Name :wa4300s_fat.bin
: wa4300_fat.bin //输入更改过后的文件名字
Target File Name :wa4300s_fat.bin
: wa4300_fat.bin
Server IP Address :192.168.0.1 192.168.0.1 //PC的ip地址，这个ip只是举例
Local IP Address :192.168.0.50 192.168.0.50 //指定AP的ip和PC同一网段
Gateway IP Address :0.0.0.0
==========================<Enter Ethernet SubMenu>==========================
|Note:the operating device is flash |
|<1> Download Application Program To SDRAM And Run |
|<2> Update Main Application File |
|<3> Modify Ethernet Parameter |
|<0> Exit To Main Menu |
|<Ensure The Parameter Be Modified Before Downloading!> |
============================================================================
Enter your choice(0-3): 2
Loading.....................................................................
............................................................................
............................................................................
..Done!
11293696 bytes downloaded!
Updating File flash:/wa4300s_fat.bin........................................
............................................................................
...........................................................Done! //上传完成
==========================<Enter Ethernet SubMenu>==========================
|Note:the operating device is flash |
|<1> Download Application Program To SDRAM And Run |
|<2> Update Main Application File |
|<3> Modify Ethernet Parameter |
|<0> Exit To Main Menu |
|<Ensure The Parameter Be Modified Before Downloading!> |
============================================================================
Enter your choice(0-3): 0 //回到主菜单
===========================<EXTEND-BOOTWARE MENU>===========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Clear Super Password |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+C: Display Copyright
Ctrl+Y: Change AP Mode
Ctrl+F: Format File System
Enter your choice(0-9): 4 //输入4查看文件
===============================<File CONTROL>===============================
|Note:the operating device is flash |
|<1> Display All File(s) |
|<2> Set Application File type |
|<3> Delete File |
|<0> Exit To Main Menu |
============================================================================
Enter your choice(0-3): 1 //输入1查看所有文件
Display all file(s) in flash:
"M" = MAIN "B" = BACKUP "S" = SECURE "N/A" = NOT ASSIGNED
============================================================================
|NO. Size(B) Time Type Name |
|1 388 Jan/01/2009 00:09:07 N/A private-data.txt |
|2 1418 Jan/01/2009 00:09:10 N/A startup.cfg |
|3 294 Jan/01/2009 00:09:08 N/A system.xml |
|4 11293696 Aug/08/2008 20:00:00 M wa4300s_fat.bin //ap的版本
============================================================================
===============================<File CONTROL>===============================
|Note:the operating device is flash |
|<1> Display All File(s) |
|<2> Set Application File type |
|<3> Delete File |
|<0> Exit To Main Menu |
============================================================================
Enter your choice(0-3): 0 //按0返回主菜单
===========================<EXTEND-BOOTWARE MENU>===========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Clear Super Password |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+C: Display Copyright
Ctrl+Y: Change AP Mode
Ctrl+F: Format File System
Enter your choice(0-9): 1 //输入1引导系统文件
System is starting...
Press Ctrl+D to access BASIC-BOOTWARE MENU
Booting Normal Extend BootWare
The Extend BootWare is self-decompressing.............................Done!
****************************************************************************
* *
* H3C WAP712C BootWare, Version 1.06 *
* *
****************************************************************************
Copyright (c) 2004-2017 New H3C Technologies Co., Ltd.
Compiled Date : Mar 27 2017
CPU Type : ATHEROS AR9563
CPU L1 Cache : 32KB
CPU Clock Speed : 775MHz
Memory Type : SDRAM
Memory Size : 128MB
Memory Speed : 560MHz
BootWare Size : 512KB
Flash Size : 16MB
PCB Version : Ver.A
BootWare Validating...
Press Ctrl+B to enter extended boot menu...
Starting to get the main application file--flash:/wa4300s_fat.bin!..........
............................................................................
............................................................................
...........
The App file is self-decompressing..........................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
...........................................................Done!
System application is starting...
User interface con0 is available.
Press ENTER to get started.
<WAP712C>dir //查看所有文件，切为胖版本完成
Directory of flash:/
0 -rw- 1418 Jan 01 2009 00:09:10 startup.cfg
1 -rw- 294 Jan 01 2009 00:09:08 system.xml
2 -rw- 11293696 Aug 08 2008 20:00:00 wa4300_fat.bin
15057 KB total (4021 KB free)

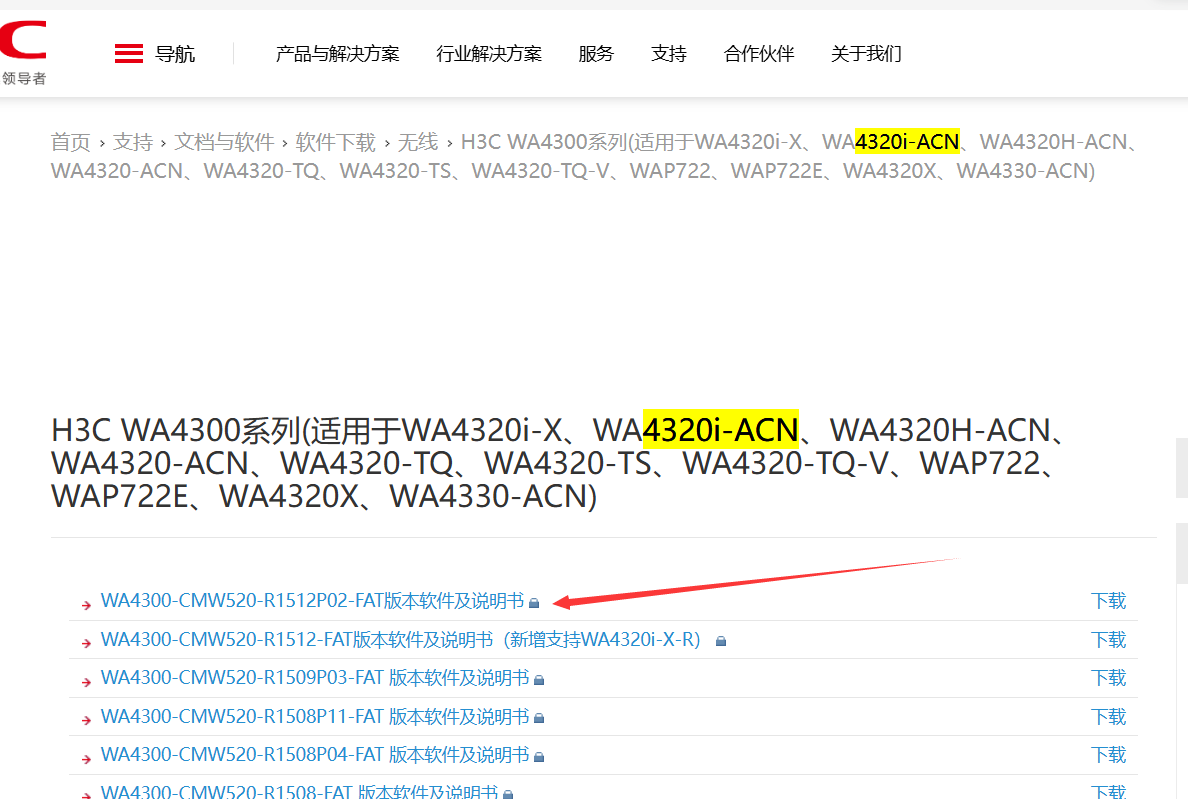

软件版本是这个
- 2025-05-21回答
- 评论(3)
- 举报
-
(0)
Enter your choice(0-3): 2 Loading..................................................................... ............................................................................ ........................................................................... Done! 11118592 bytes downloaded! Something wrong with the file. 都会提示我文件有问题 上传以后也找不到文件
WA4300S-CMW520-R1509P01-FAT用的这个版本 我的设备型号H3C WA4320i-ACN
