Ak115防火墙没有console线,网口不知道地址和密码,如何初始化?
(0)
最佳答案
弄跟console吧,你登陆不了防火墙
只能通过console配置
#清除已保存的配置
<H3C>reset save
The saved configuration file will be erased. Are you sure? [Y/N]:Y
#重启设备
<H3C>reboot
Start to check configuration with next startup configuration file, please wait.........DONE!
This command will reboot the device. Current configuration will be lost, save current configuration? [Y/N]:n
This command will reboot the device. Continue? [Y/N]:y
注意有两块主控板的话需要先拔出一块再清楚配置不然之前的配置会互相同步
(0)
恢复出厂也得通过命令行
<H3C>reset saved-configuration
The saved configuration file will be erased. Are you sure? [Y/N]:Y //确定删除保存的配置文件
<H3C>reboot
Start to check configuration with next startup configuration file, please wait.........DONE!
This command will reboot the device. Current configuration will be lost, save current configuration? [Y/N]:N //不保存配置
This command will reboot the device. Continue? [Y/N]:Y //继续重启

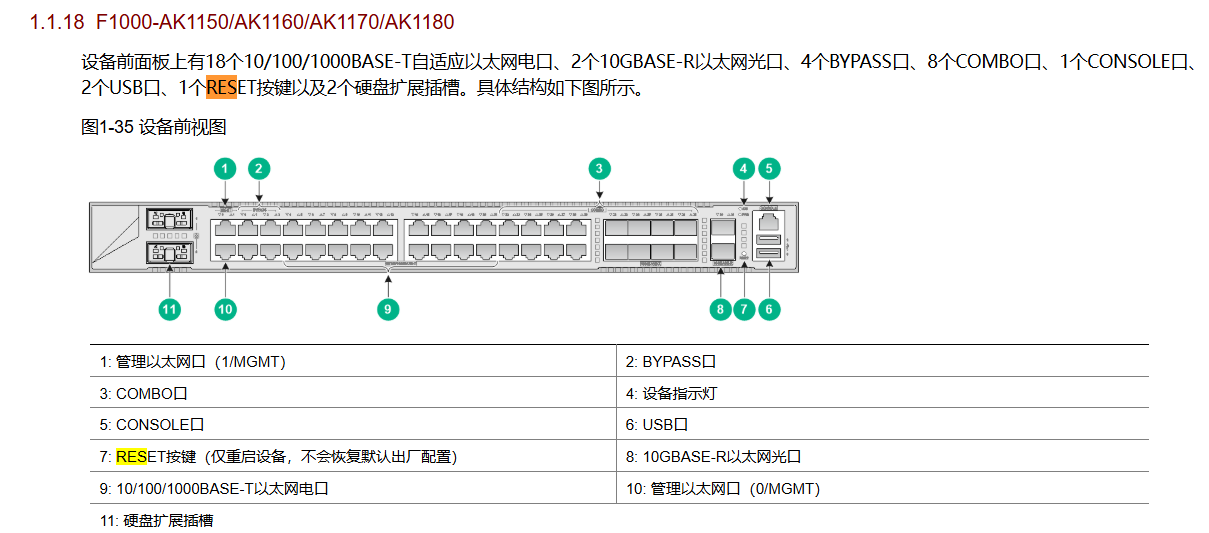

你这个设备还没有reset键,没有办法
找个console线进入命令行,如果还出现密码,那就得通过重启进入boot重置吧
通过conlse线和crt软件连接并登陆设备,然后把设备断电重启。控制台上会打印如下信息,当出现“press Ctrl+B”的时候快速按住“Ctrl+B” 进入botroom菜单
System is starting...
Press Ctrl+D to access BASIC-BOOTWARE MENU
Booting Normal Extend BootWare
The Extend BootWare is self-decompressing.......................Done!
BootWare Validating...
Press Ctrl+B to enter extended boot menu...
BotWare password: Not required. Please press Enter to continue.
Password recovery capability is enabled.
Note: The current operating device is flash
Enter < Storage Device Operation > to select device.
按住“Ctrl+B”进入如下菜单。选择“<6> Skip Current System Configuration”跳过当前配置启动,不同设备可能不是数字6,
===========================<EXTEND-BOOTWARE MENU>===========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Clear Super Password |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+Z: Access EXTEND-ASSISTANT MENU
Ctrl+F: Format File System
Enter your choice(0-9): 6
Flag Set Success.
然后输入0重启设备
===========================<EXTEND-BOOTWARE MENU>===========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Restore to Factory Default Configuration |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Clear Super Password |
|<9> Storage Device Operation |
|<0> Reboot |
============================================================================
Ctrl+Z: Access EXTEND-ASSISTANT MENU
Ctrl+F: Format File System
Enter your choice(0-9): 0
System is starting...
Press ENTER to get started.
3.2 如果不需要之前的配置信息的话
操作步骤:跳过启动文件后直接保存当前配置,再重启。
<H3C>save
The current configuration will be written to the device. Are you sure? [Y/N]:y
Please input the file name(*.cfg)[flash:/startup.cfg]
(To leave the existing filename unchanged, press the enter key):(输入回车)
flash:/startup.cfg exists, overwrite? [Y/N]:y
Validating file. Please wait...
Configuration is saved to device successfully.
<H3C>reboot
Start to check configuration with next startup configuration file, please wait.........DONE!
Current configuration may be lost after the reboot, save current configuration? [Y/N]:y
This command will reboot the device. Continue? [Y/N]:y
(0)
暂无评论
console 登录设备

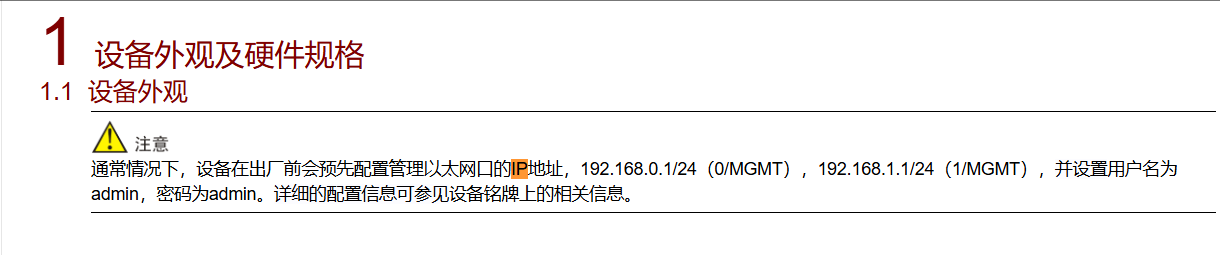

console 默认用户密码 admin/admin
reset save
y
reboot
n
y
###
如果console 默认用户名密码登录不进去、又忘记了原账号密码 ;
console 连接后 ;
Ctrl+B
进入BootWare扩展菜单。Password recovery capability is disabled.
,则继续。
7. Restore to Factory Default Configuration
。Enter your choice(0-9): 7
192.168.0.1/24
)。(0)
