某局点S5570S-54S-EI 802.1x逃生不生效

设备型号和版本：S5570S-54S-EI  Release 1128

现场配置802.1x逃生不生效，服务器不可达的时候，用户（1/0/27）无法进入逃生vlan,设备学不到终端的地址

1、  现场设备版本是最新的

2、  接口配置如下：

#

interface GigabitEthernet1/0/27

port link-mode bridge

port access vlan 601

stp edged-port

dot1x

undo dot1x handshake

dot1x mandatory-domain carizon-domain

dot1x critical vlan 601

mac-authentication

mac-authentication domain carizon-domain

mac-authentication critical vlan 601

#

3、  服务器状态

  ===============display radius scheme===============

Total 2 RADIUS schemes

------------------------------------------------------------------

RADIUS scheme name: carizon-radius

  Index: 0

  Primary authentication server:

    Host name: Not Configured

    IP   : x.x.x.44                               Port: 1812

    VPN  : Not configured

    State: Blocked

    Most recent blocked period: 2024/11/02 22:57:39 - now

    Test profile: taosheng

      Probe username: admin

      Probe interval: 1 minutes

    Weight: 0

  Primary accounting server:

    Host name: Not Configured

    IP   :  x.x.x.44                                Port: 1813

    VPN  : Not configured

    State: Active (duration: 0 weeks, 0 days, 1 hours, 12 minutes, 1 seconds)

    Weight: 0

  Accounting-On function                     : Disabled

    extended function                        : Disabled

    retransmission times                     : 50

    retransmission interval(seconds)         : 3

  Timeout Interval(seconds)                  : 3

  Retransmission Times                       : 3

  Retransmission Times for Accounting Update : 5

  Server Quiet Period(minutes)               : 5

  Realtime Accounting Interval(seconds)      : 720

  Stop-accounting packets buffering          : Enabled

    Retransmission times                     : 500

  NAS IP Address                             : x.x.x.2

  VPN                                        : Not configured

  User Name Format                           : without-domain

  Data flow unit                             : Byte

  Packet unit                                : One

  Attribute 15 check-mode                    : Strict

  Attribute 25                               : Standard

  Attribute Remanent-Volume unit             : Kilo

  server-load-sharing                        : Disabled

  Attribute 31 MAC format                    : HH-HH-HH-HH-HH-HH

  Stop-accounting packets send-force         : Disabled

  Reauthentication server selection          : Inherit

  Attribute 218 of vendor ID 25506           : DHCP-Option 61

                                               Format 1 (1-byte Type field)

------------------------------------------------------------------

4、看debug信息确实存在服务器不可达及认证失败的信息

*Nov  2 23:33:07:620 2024 CNBJSWTX-C6R01-SWA001 RADIUS/7/EVENT: Found request context, dstIP: 10.11.1.44; dstPort: 1812; VPN instance: --(public); socketfd: 94; pktID:23.

*Nov  2 23:33:07:622 2024 CNBJSWTX-C6R01-SWA001 RADIUS/7/EVENT: Retransmitting request packet, currentTries: 3, maxTries: 3.

*Nov  2 23:33:07:629 2024 CNBJSWTX-C6R01-SWA001 DOT1X/7/EVENT: User aging timer expired: UserMAC=yyyy-yyyy-yyyy, VLANID=601, Interface=GigabitEthernet1/0/27.

*Nov  2 23:33:07:629 2024 CNBJSWTX-C6R01-SWA001 DOT1X/7/EVENT: BE is in Initialize state: UserMAC=yyyy-yyyy-yyyy, VLANID=601, Interface=GigabitEthernet1/0/27.

*Nov  2 23:33:07:630 2024 CNBJSWTX-C6R01-SWA001 DOT1X/7/EVENT: Interface GigabitEthernet1/0/27 received Set the port authorization status to unauthorized event.

后经产品线定位：加入1x  的critical vlan要么是mac-vlan  enable（需要配置成hybrid口），要么是port-based模式，现场需要同时启用mac 和1x认证的，那就只能是改hybrid口了。

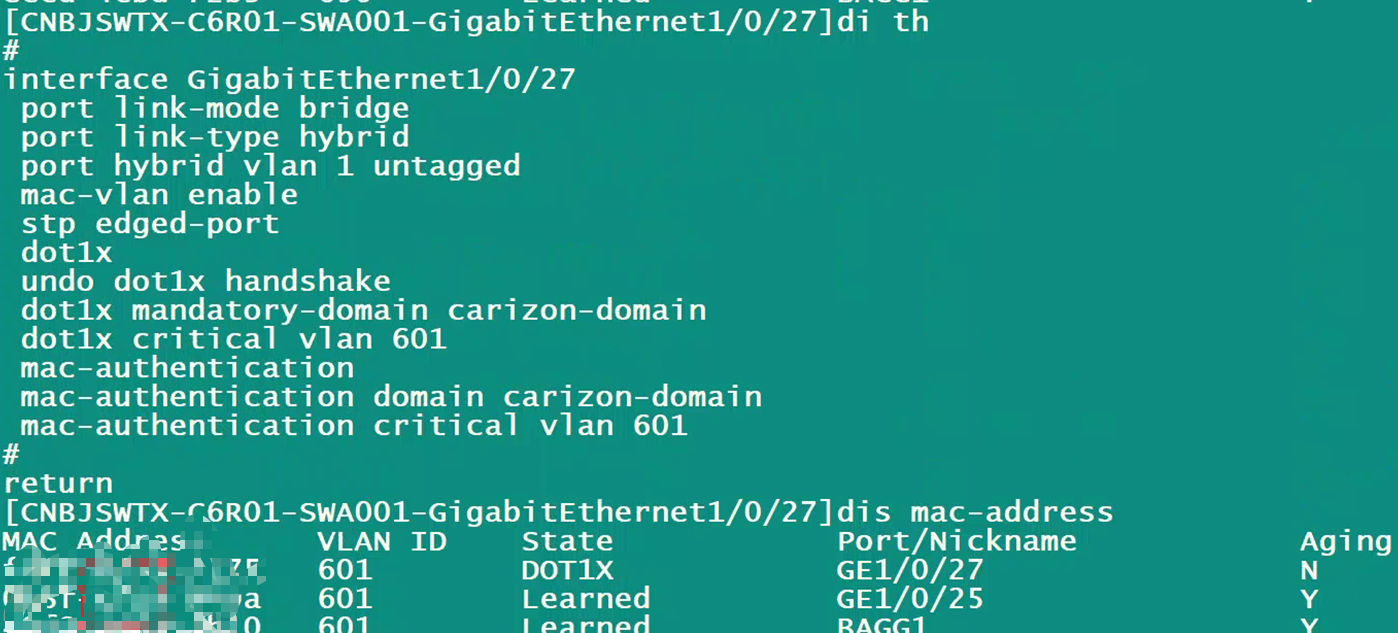

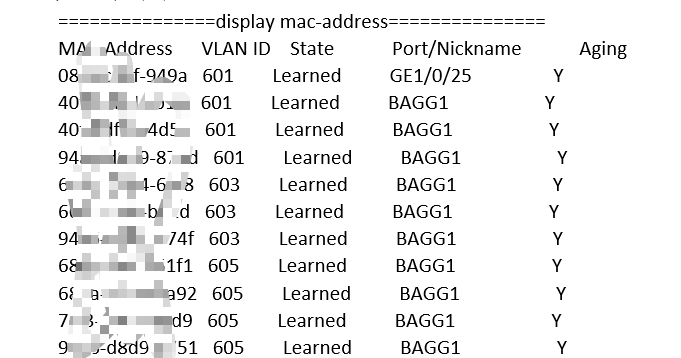

现场改成hybrid口，配置mac-vlan enable之后就ok了。
